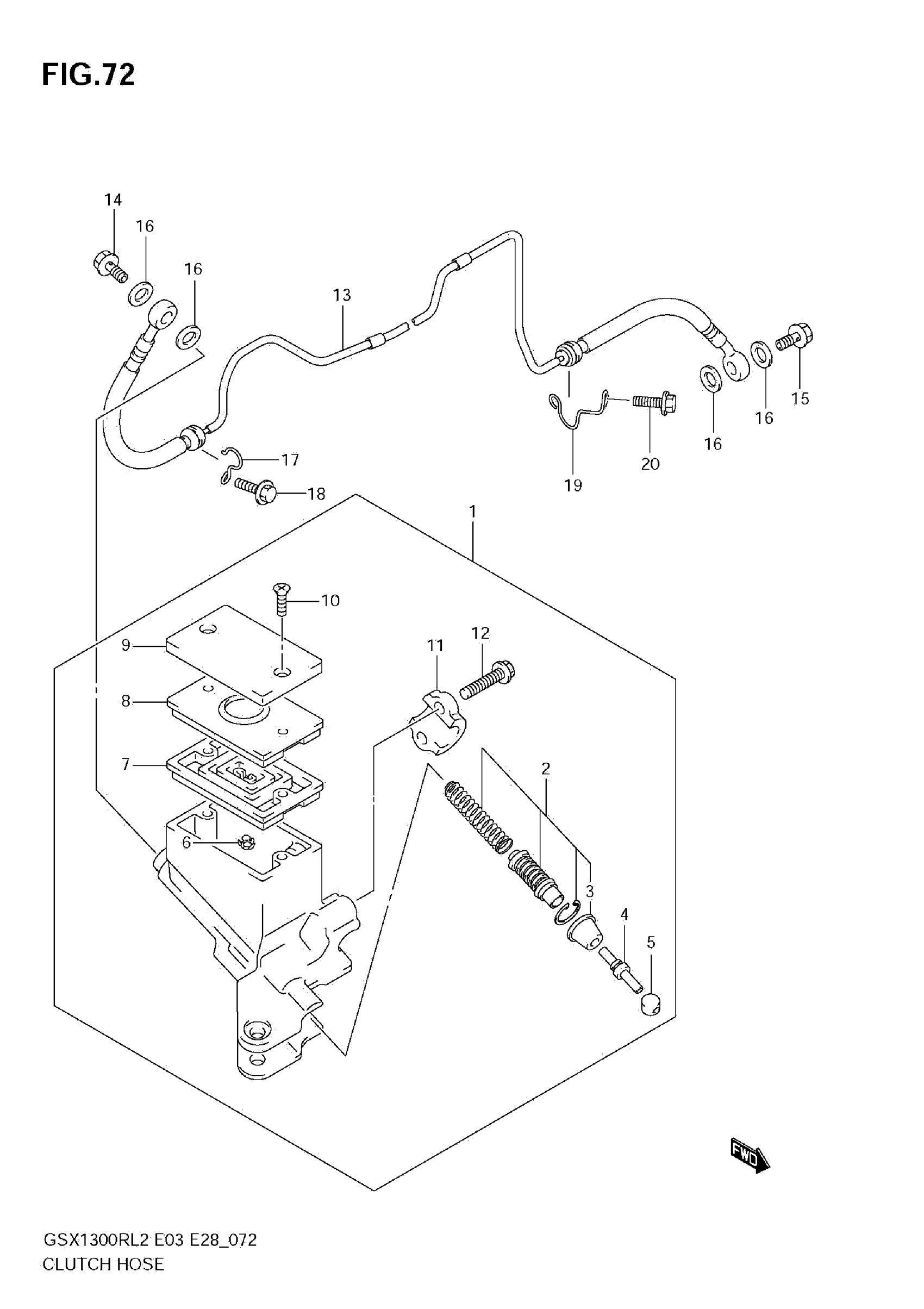

Find the part on the Clutch Hose diagram for your 2012 Suzuki GSX1300RL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki GSX1300RL2 Clutch Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER ASSY, CLUTCH MASTER

59800-24F10

1
Out of stock

2

PISTON/CUP SET

59800-24810

1
Out of stock

3

BOOT

59866-23H00

1
Out of stock

4

ROD, PUSH

59871-23H00

1
Out of stock

5

BUSH

59892-08A00

1
Out of stock

6

PROTECTOR

59664-48B00

1
Out of stock

7

DIAPHRAGM

59667-49460

1
Out of stock

8

PLATE

59668-41C00

1
Out of stock

9

CAP

59669-10G00

1
Out of stock

10

SCREW

69689-49300

2
Out of stock

11

.HOLDER

59671-36500

1
Out of stock

12

BOLT (6X22)

59675-02FA0

2
Out of stock

13

HOSE COMP,CLUTC This part replaces 59910-24F10.

59910-24F11

1
Out of stock

14

UNION

09360-10062

1
Out of stock

15

UNION

09360-10062

1
Out of stock

16

WASHER (10X15X1.5)

09161-10009

4
Out of stock

17

CLAMP, HOSE NO.1

59915-24F00

1
Out of stock

18

BOLT

01550-0612A

1
Out of stock

19

CLAMP,CLUTCH HOSE NO.2

59921-24F00

1
Out of stock

20

BOLT

01550-0616A

1
Out of stock
