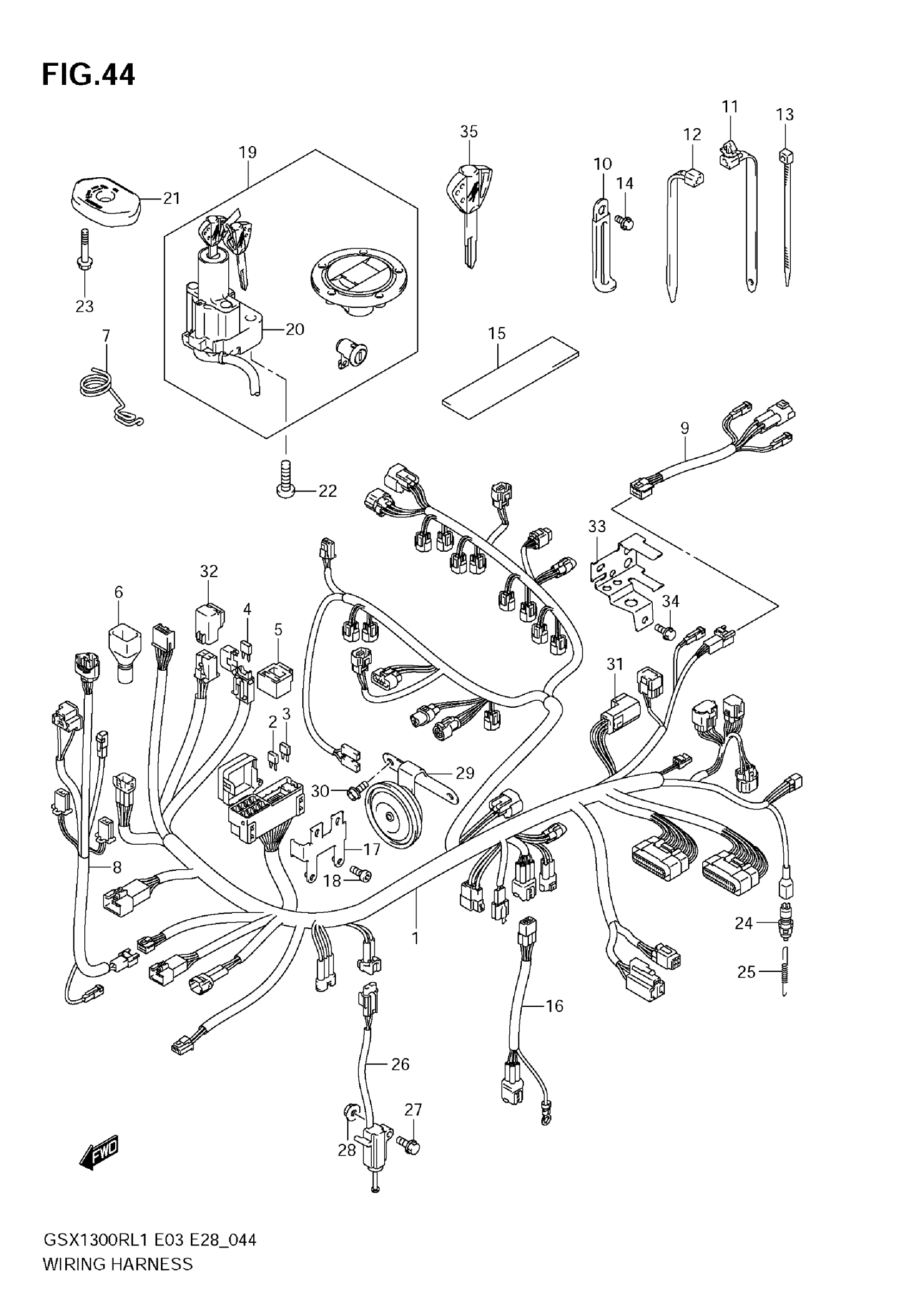

Suzuki GSX1300RL1 (2011) WIRING HARNESS (E33) Diagram

#

Description
Price

1

HARNESS, WIRING

36610-15H40

Unavailable

2

FUSE (10A)

09481-10501

$2.06

3

FUSE (15A)

09481-15501

$2.02

4

FUSE (15A)

09481-15101

$2.53

5

HOLDER

36742-39D00

$19.15

6

BOOT, METER

36618-33E00

$8.77

7

GUIDE, WIRING HARNESS

36619-15H00

Unavailable

8

HARNESS,WIRING This part replaces 36620-15H00.

36620-15H01

$134.07

9

WIRE,RR COMB This part replaces 36857-15H00.

36857-15H01

$33.51

10

CLAMP (L:45)

09404-06429

$1.83

10

CLAMP (L:135)

09404-06435

$3.68

11

CLAMP This part replaces 09407-14408.

09407-17402

$3.93

12

CLAMP (L:125)

09407-14403

$2.26

12

CLAMP (L:165)

09407-18402

$2.19

13

CLAMP (L:145)

09407-14407

$3.57

14

BOLT

01550-0610A

$1.97

15

PROTECTOR, WIRING HARNESS

36920-45G00

$3.03

16

WIRE, O2 SENSOR

36855-15H00

$70.30

17

BRACKET, FUSE BOX

36744-24F00

Unavailable

18

BOLT

07120-0510B

$3.05

19

LOCK SET This part replaces 37100-15860.

37100-15861

$401.33

20

LOCK ASSY,STEER This part replaces 37100-15H80.

37100-15H81

$304.52

21

COVER,STEERING LOCK This part replaces 37180-15H00.

37180-15HA0

$23.74

22

BOLT (8X20)

09139-08016

$3.37

23

BOLT

01547-0530A

$2.12

24

SWITCH ASSY, STOP LAMP

37740-19F00

$31.28

25

SPRING

09443-06012

$3.16

26

SWITCH ASSY,SIDE STAND This part replaces 37840-24F00.

37840-24F02

$58.63

27

BOLT (8X35)

09103-08357

$4.17

28

NUT

08316-1008B

$2.66

29

HORN ASSY

38500-24F01

Unavailable

30

BOLT

01550-0612B

$2.39

31

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$38.58

32

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$38.58

33

BRACKET, FUEL PUMP RELAY

38741-24F00

$8.77

34

BOLT

01550-0612B

$2.39

35

KEY, BLANK | OPT

37146-15H00

$51.62
