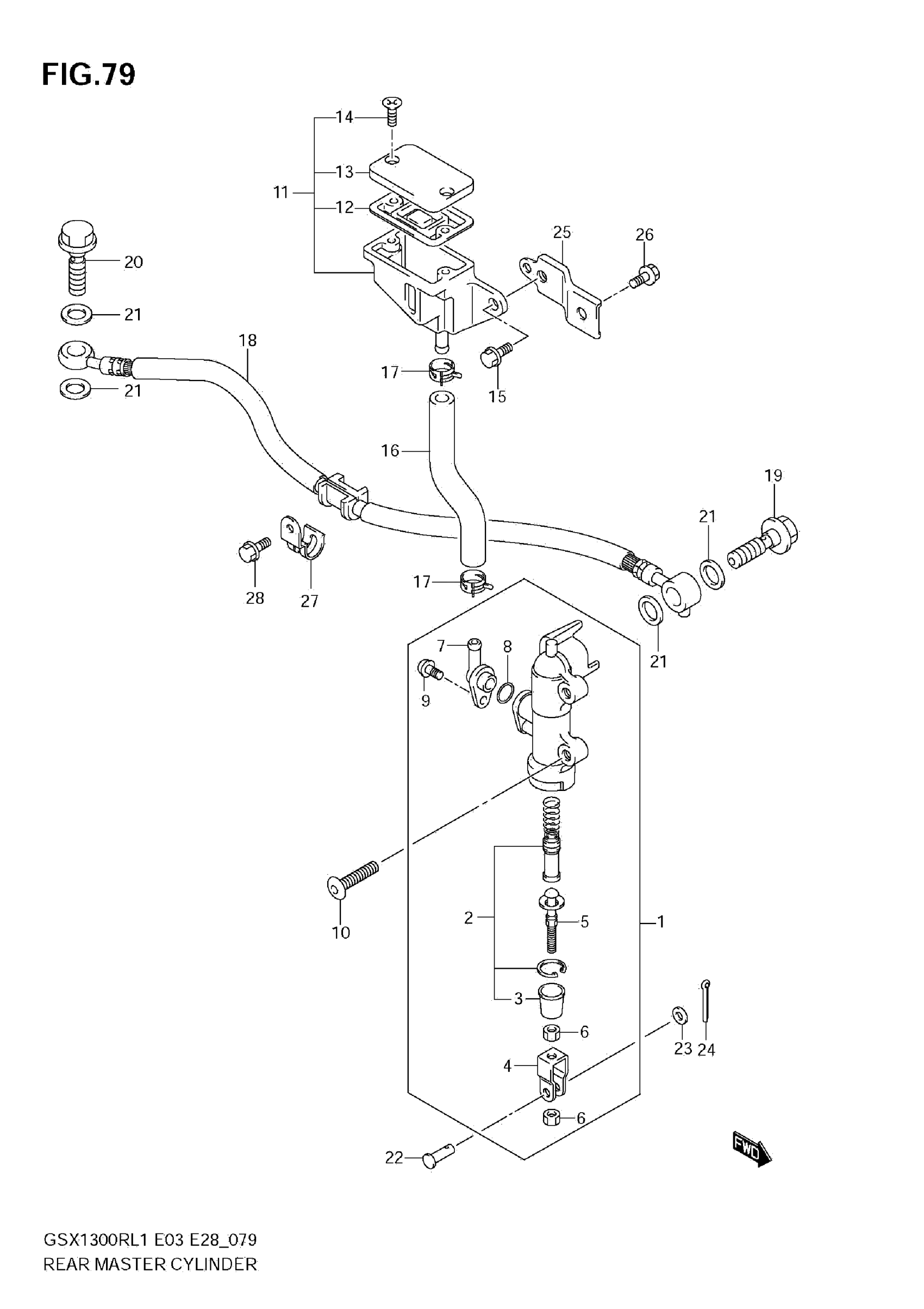

Suzuki GSX1300RL1 (2011) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER

69600-15H00

$312.98

2

.PISTON/CUP SET This part replaces 69600-04820.

69600-04821

$32.27

3

.BOOT

69691-00A00

$5.30

4

YOKE

69692-27A30

$13.81

5

ROD, PUSH

69670-27A30

$26.23

6

NUT

69693-05A00

$1.96

7

CONNECTOR

69672-05A00

$5.56

8

O RING

69686-34200

$2.93

9

SCREW

02112-7412A

$2.12

10

BOLT (6X20)

09139-06028

$3.70

11

TANK ASSY,RR RESERVOIR

69740-01D02

$70.49

12

DIAPHRAGM

59667-04700

$9.78

13

CAP

59669-05D00

$16.76

14

SCREW

69689-04A00

$1.78

15

BOLT

01547-0612A

$2.03

16

HOSE, RR RESERVOIR TANK

69731-24F00

$18.88

17

CLAMP

09401-13417

$2.26

18

HOSE,RR BRAKE This part replaces 69480-15H00.

69480-15H01

$65.98

19

UNION

09360-10061

$6.43

20

UNION

09360-10062

$6.43

21

WASHER (10X15X1.5)

09161-10009

$1.84

22

PIN

09200-06068

$4.11

23

WASHER

08322-0106A

$1.84

24

PIN, COTTER

04111-2015A

$1.49

25

BRACKET, RESERVOIR TANK

69750-15H00

$11.78

26

BOLT

01550-0612A

$1.97

27

CLAMP, REAR BRAKE HOSE

69268-15H00

$12.65

28

BOLT

01547-0612A

$2.03
