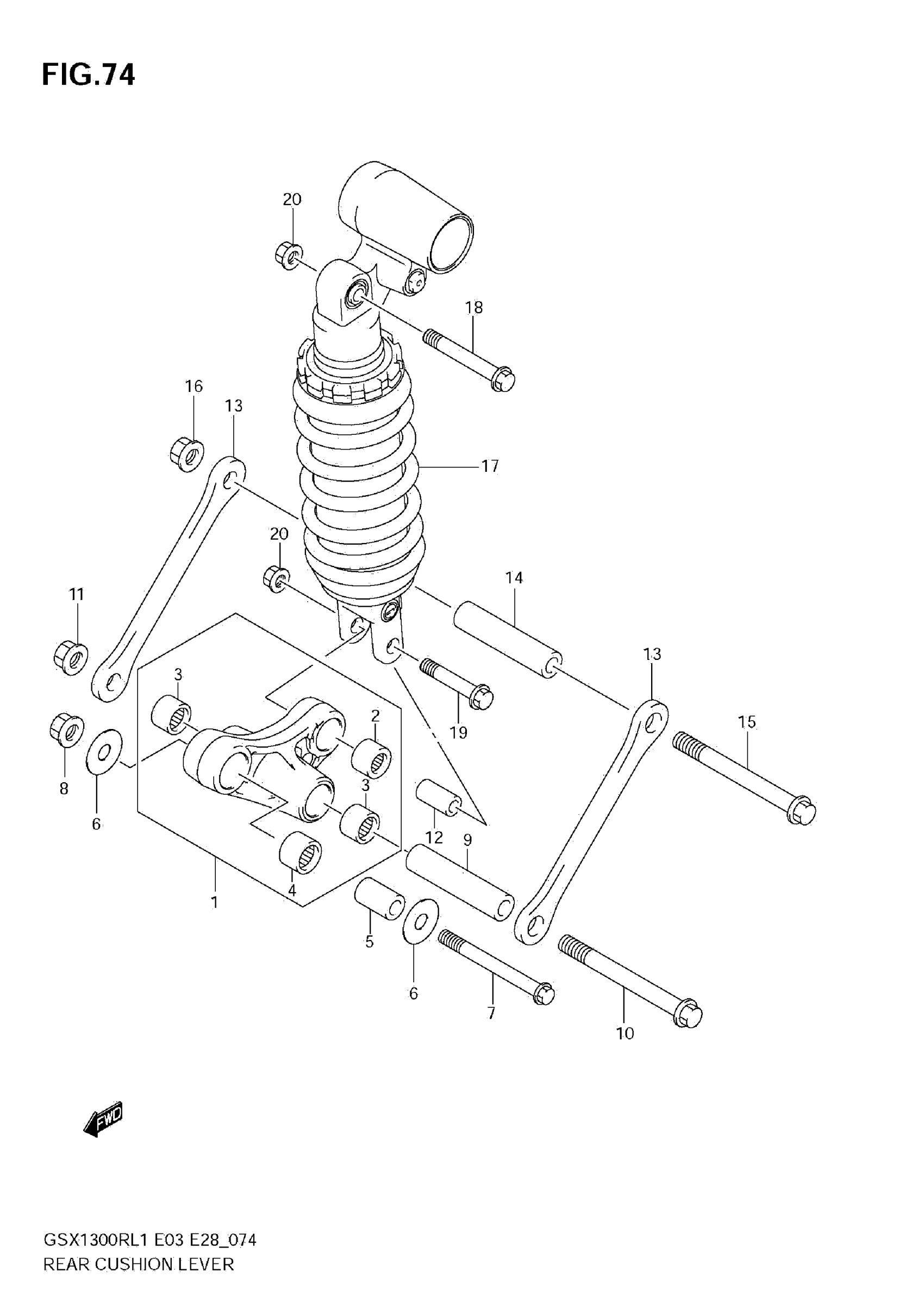

Suzuki GSX1300RL1 (2011) REAR CUSHION LEVER (E28) Diagram

#

Description
Price

1

LEVER SET,RR CUSHION This part replaces 62600-24831.

62600-24833

$331.92

2

.BEARING (20X27X30) This part replaces 09263-20073.

09263-20121

$17.82

3

.BEARING (17X24X25) This part replaces 09263-17037.

09263-17053

$21.66

4

.BEARING (17X24X26) This part replaces 09263-17034.

09263-17057

$20.85

5

SPACER,RR CUSHION LEVER FR (1

62684-12C00

$15.61

6

WASHER

08211-12301

$2.03

7

BOLT, RR CUSHION LEVER FR

62658-19F00

$11.95

8

NUT

09159-12056

$7.37

9

SPACER, CENTER

62626-33D00

$21.19

10

BOLT, CENTER

62621-33D10

$33.67

11

NUT

09159-12056

$7.37

12

SPACER, REAR (10X17X30)

62684-40A10

$12.15

13

ROD,RR CUSHION

62641-24F00

$56.48

14

SPACER, ROD

62626-33D00

$21.19

15

BOLT, ROD

62621-33D10

$33.67

16

NUT

09159-12056

$7.37

17

ABSORBER ASSY, REAR SHOCK

62100-24F50

Unavailable

18

BOLT (10X70)

09103-10033

$6.17

19

BOLT (10X55)

09103-10143

$4.52

20

NUT

09159-10115

$3.55
