2011 Suzuki GSX1300RL1 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2011 Suzuki GSX1300RL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

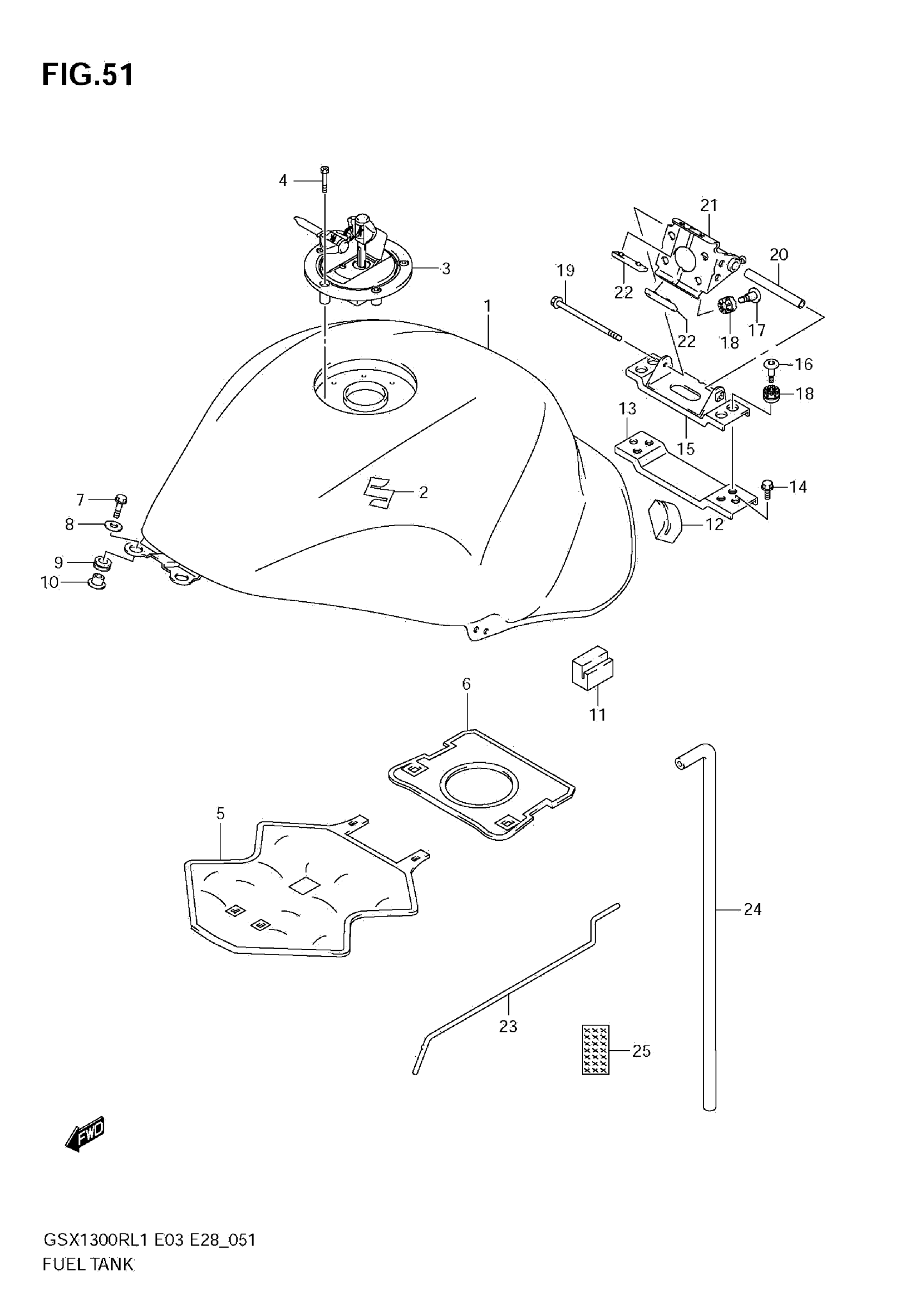

2011 Suzuki GSX1300RL1 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK ASSY,FUEL( This part replaces 44100-15H80-YAY.

44100-15H81-YAY

1
Out of stock

1

TANK ASSY, FUEL (BLUE)

44100-15H80-YKZ

1
Out of stock

1

TANK ASSY, FUEL (WHITE)

44100-15H80-YPA

1
Out of stock

2

EMBLEM, "S"

68111-18G20

2
Out of stock

3

CAP SET,FUEL TA This part replaces 44200-16870.

44200-16872

1
Out of stock

4

BOLT (5X20)

09106-05017

3
Out of stock

5

SHIELD, FUEL TANK HEAT NO.1

44191-15H00

1
Out of stock

6

SHIELD, FUEL TANK HEAT NO.2

44191-15H10

1
Out of stock

7

SCREW (6X25)

09139-06029

2
Out of stock

8

WASHER (6.5X18X1.6)

09160-06084

2
Out of stock

9

CUSHION,FUEL TANK FRONT This part replaces 44511-16G00.

44511-16G01

2
Out of stock

10

SPACER

44512-16G00

2
Out of stock

11

CUSHION,FUEL TA This part replaces 44541-24F00.

44541-24F01

2
Out of stock

12

CUSHION,FUEL TA This part replaces 44543-15H00.

44543-15H01

2
Out of stock

13

BRACKET, REAR LOWER

44555-15H00

1
Out of stock

14

BOLT (8X16)

01550-0816A

2
Out of stock

15

BRACKET, FUEL TANK REAR NO.2 This part replaces 44550-15H00.

44550-15H01

1
Out of stock

16

SCREW (6X22)

09139-06191

4
Out of stock

17

SCREW (6X22)

09139-06191

4
Out of stock

18

CUSHION

09320-08071

8
Out of stock

19

BOLT

07120-0695B

1
Out of stock

20

SPACER, JOINT

44561-18G00

1
Out of stock

21

BRACKET, FUEL TANK REAR NO.1 This part replaces 44530-15H00.

44530-15H01

1
Out of stock

22

CUSHION, BRACKET

45149-44G00

2
Out of stock

23

STAY

44574-35F00

1
Out of stock

24

HOSE, DRAIN This part replaces 44423-15H00.

44423-15H01

1
Out of stock

25

SHIELD, DRAIN HOSE HEAT

44427-15H10

1
Out of stock
