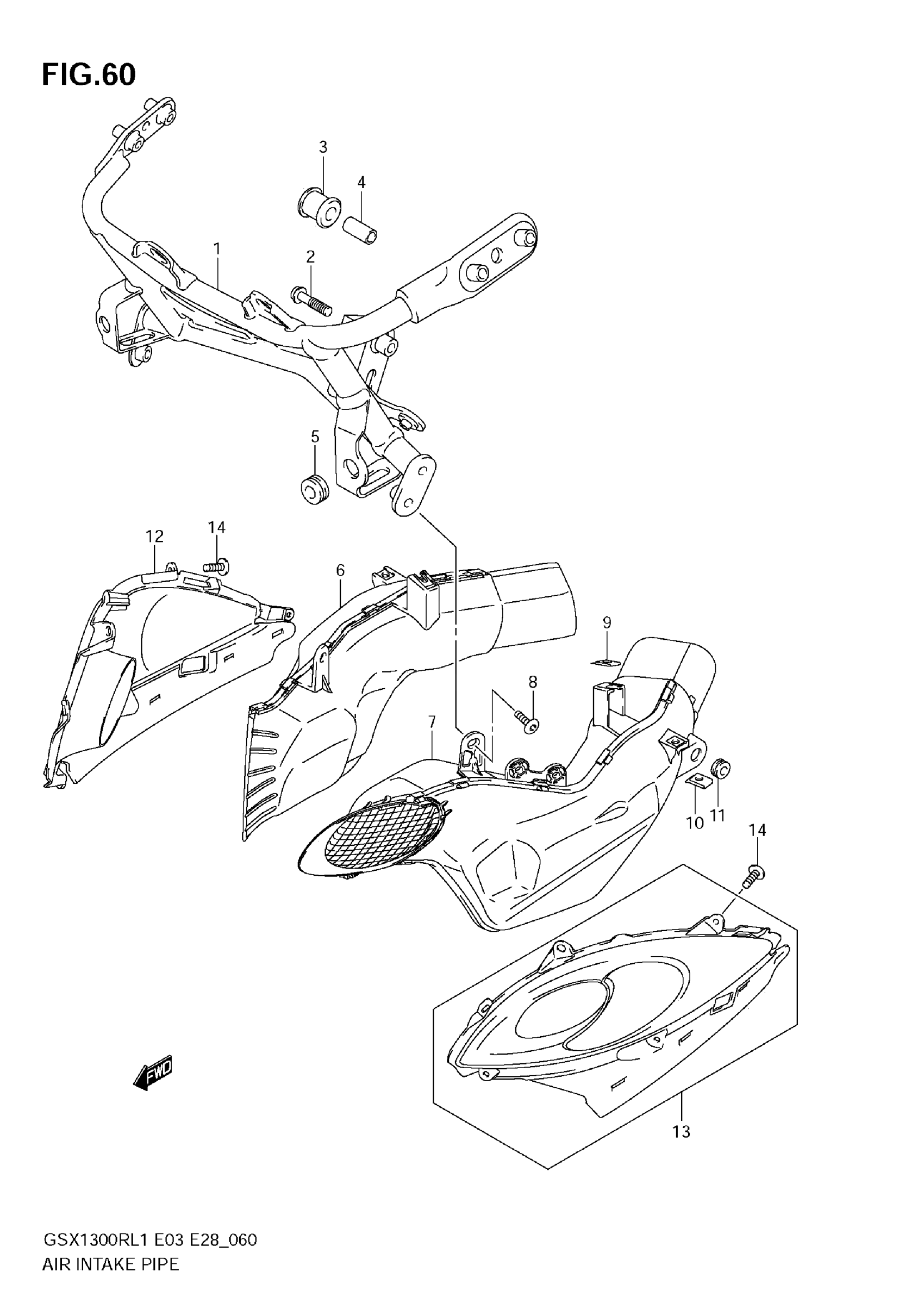

Suzuki GSX1300RL1 (2011) AIR INTAKE PIPE Diagram

#

Description
Price

1

BRACE, COWLING This part replaces 94510-15H00.

94510-15H01

$484.68

2

BOLT (8X40)

09103-08367

$4.12

3

CUSHION, UPPER

94541-41C00

$4.87

4

SPACER (8.6X12.2X26.5)

09180-08215

$3.84

5

CUSHION

09320-08028

$2.80

6

PIPE, INTAKE RH This part replaces 94420-15H00.

94420-15H01

$156.30

7

PIPE, INTAKE LH This part replaces 94430-15H00.

94430-15H01

$156.30

8

SCREW

94423-15H00

$6.57

9

NUT COWL

94484-24F00

$3.63

10

NUT

09148-05038

$1.97

11

CUSHION

09320-08028

$2.80

12

COVER,INTAKE,R This part replaces 94671-15H00-YAY.

94671-15H01-YAY

$283.75

12

COVER,INTAKE,R This part replaces 94671-15H00-YKZ.

94671-15H01-YKZ

$283.75

12

COVER,INTAKE,R This part replaces 94671-15H00-YPA.

94671-15H01-YPA

$283.75

13

COVER,INTAKE,L This part replaces 94681-15H00-YAY.

94681-15H01-YAY

$279.40

13

COVER,INTAKE,L This part replaces 94681-15H00-YKZ.

94681-15H01-YKZ

$282.10

13

COVER,INTAKE,L This part replaces 94681-15H00-YPA.

94681-15H01-YPA

$260.30

14

SCREW (5X16)

09132-05053

$2.26
