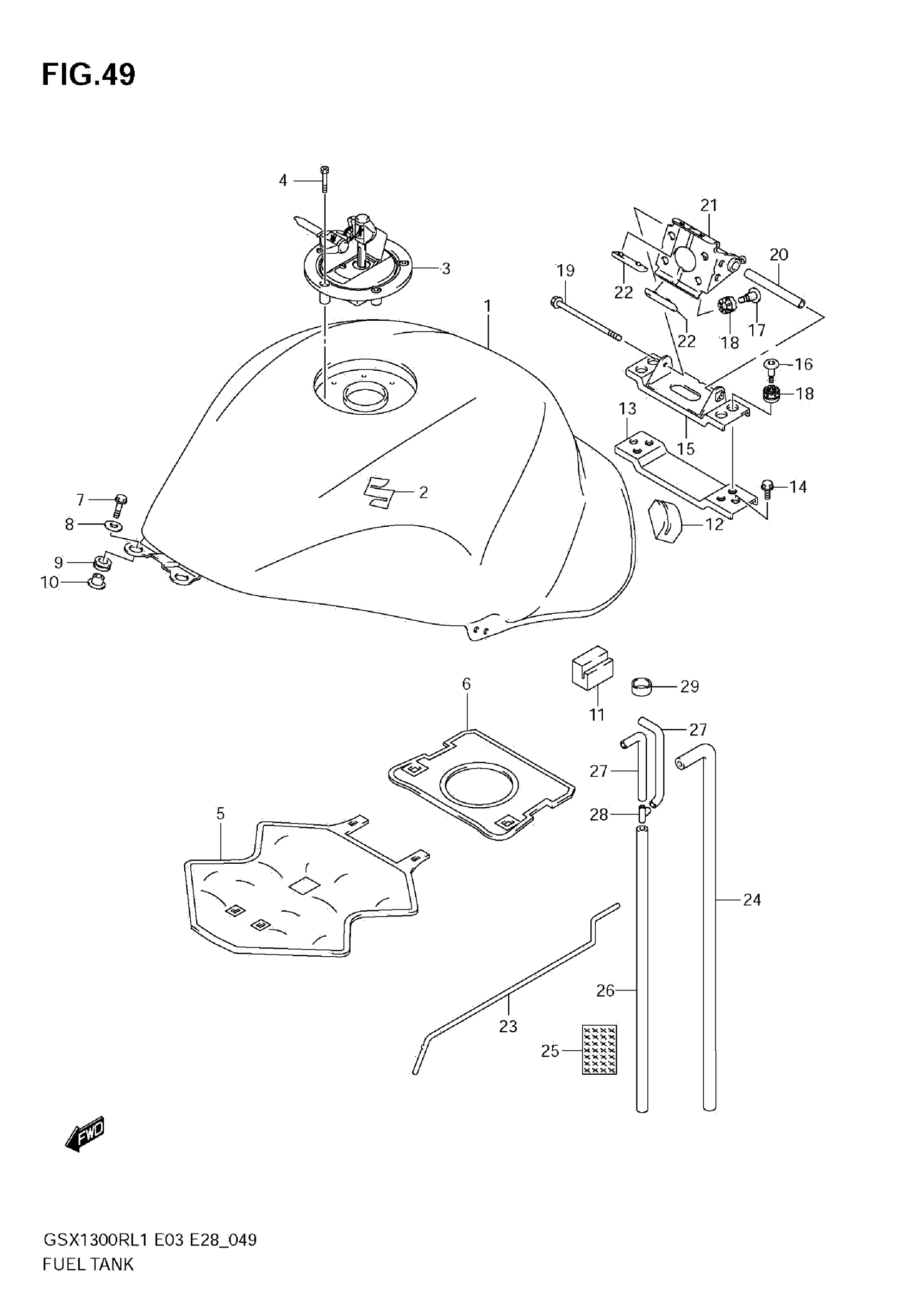

Suzuki GSX1300RL1 (2011) FUEL TANK (E28) Diagram

#

Description
Price

1

TANK ASSY,FUEL This part replaces 44100-15H60-YAY.

44100-15H61-YAY

$1,860.88

1

TANK ASSY, FUEL (BLUE)

44100-15H60-YKZ

Unavailable

1

TANK ASSY,FUEL( This part replaces 44100-15H60-YPA.

44100-15H61-YPA

$1,829.40

2

EMBLEM, "S"

68111-18G20

$32.30

3

CAP SET,FUEL TA This part replaces 44200-16850.

44200-16852

$118.21

4

BOLT (5X20)

09106-05017

$2.83

5

SHIELD, FUEL TANK HEAT NO.1

44191-15H00

$176.77

6

SHIELD, FUEL TANK HEAT NO.2

44191-15H10

$74.08

7

SCREW (6X25)

09139-06029

$5.36

8

WASHER (6.5X22X1.6)

09160-06054

$1.62

9

CUSHION,FUEL TANK FRONT This part replaces 44511-16G00.

44511-16G01

$4.11

10

SPACER

44512-16G00

$7.44

11

CUSHION,FUEL TA This part replaces 44541-24F00.

44541-24F01

$5.87

12

CUSHION,FUEL TA This part replaces 44543-15H00.

44543-15H01

$5.12

13

BRACKET, REAR LOWER

44555-15H00

Unavailable

14

BOLT (8X16)

01550-0816A

$2.32

15

BRACKET, FUEL TANK REAR NO.2 This part replaces 44550-15H00.

44550-15H01

Unavailable

16

SCREW (6X22)

09139-06191

$4.03

17

SCREW (6X22)

09139-06191

$4.03

18

CUSHION

09320-08071

$3.25

19

BOLT

07120-0695B

$4.32

20

SPACER, JOINT

44561-18G00

$16.96

21

BRACKET, FUEL TANK REAR NO.1 This part replaces 44530-15H00.

44530-15H01

Unavailable

22

CUSHION, BRACKET

45149-44G00

Unavailable

23

STAY

44574-35F00

$15.16

24

HOSE, DRAIN This part replaces 44423-15H00.

44423-15H01

$22.32

25

SHIELD, DRAIN HOSE HEAT

44427-15H00

Unavailable

26

HOSE, BREATHER This part replaces 44424-15H00.

44424-15H01

$20.27

27

HOSE,FUEL TANK BRTHR NO.3 This part replaces 44424-15H10.

44424-15H11

$13.72

28

3 WAY

09367-06007

$3.46

29

HOSE (12X16X600) | L:600->10

09352-12163-600

Unavailable
