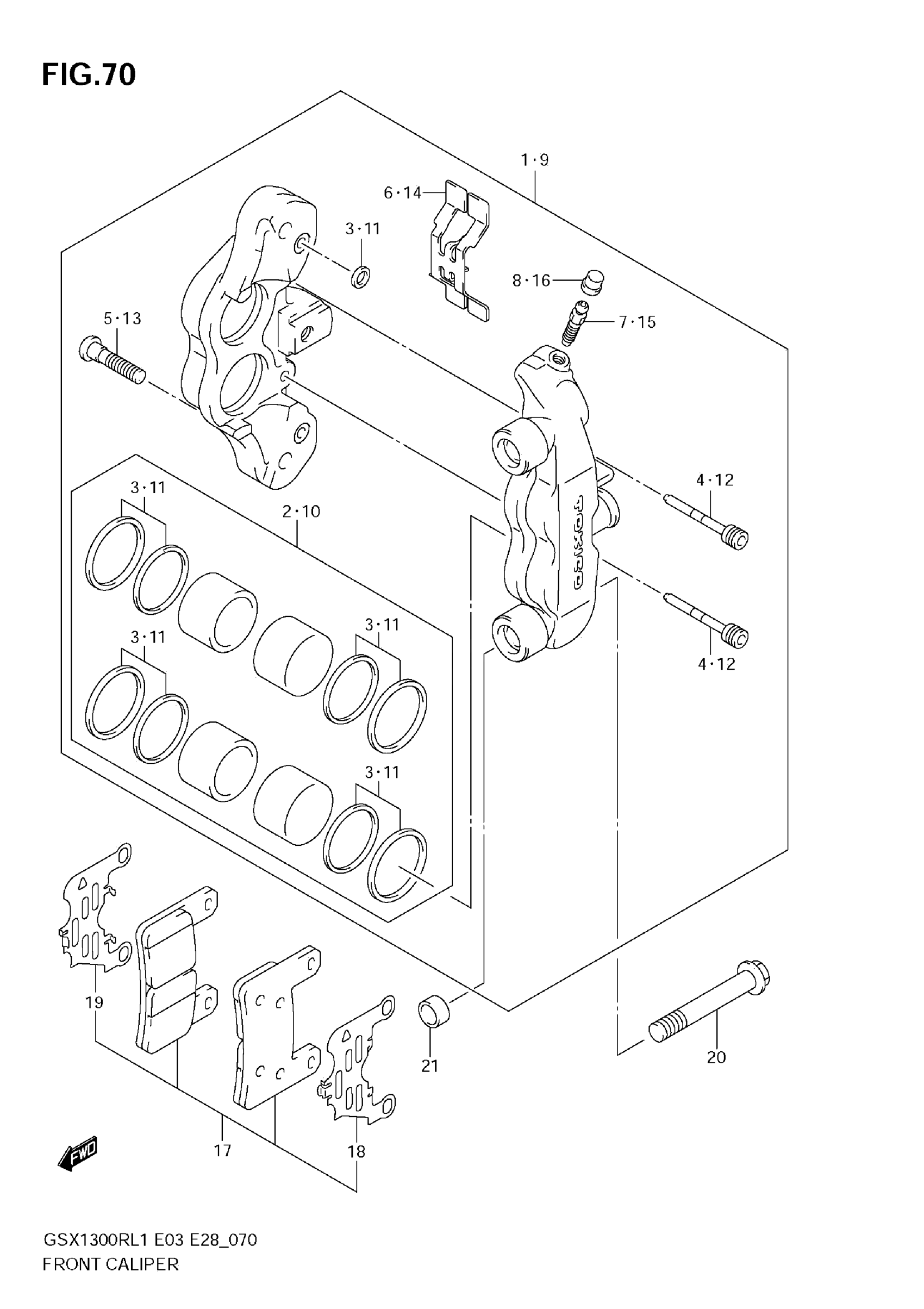

Suzuki GSX1300RL1 (2011) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, FRONT RH

59100-41G30-999

$653.12

2

PISTON SET

59100-41820

$259.85

3

SEAL SET, PISTON

59100-41810

$77.43

4

.PIN This part replaces 59141-41G00.

59141-41G10

$26.99

5

BOLT

59145-18G00

$9.92

6

SPRING, PAD

59151-29G00

$12.48

7

BLEEDER

59121-18410

$8.73

8

CAP

55156-66310

$5.17

9

CALIPER ASSY, FRONT LH

59300-41G30-999

Unavailable

10

PISTON SET

59100-41820

$259.85

11

SEAL SET, PISTON

59100-41810

$77.43

12

.PIN This part replaces 59141-41G00.

59141-41G10

$26.99

13

BOLT

59145-18G00

$9.92

14

SPRING, PAD

59151-29G00

$12.48

15

BLEEDER

59121-18410

$8.73

16

CAP

55156-66310

$5.17

17

PAD & SHIM SET

59100-29840

$59.36

18

SHIM, PAD A

59171-41G00

$15.42

19

SHIM, PAD B

59172-41G00

$15.42

20

BOLT (10X30)

09103-10392

$4.90

21

PIN, CALIPER

59151-41G00

$11.64
