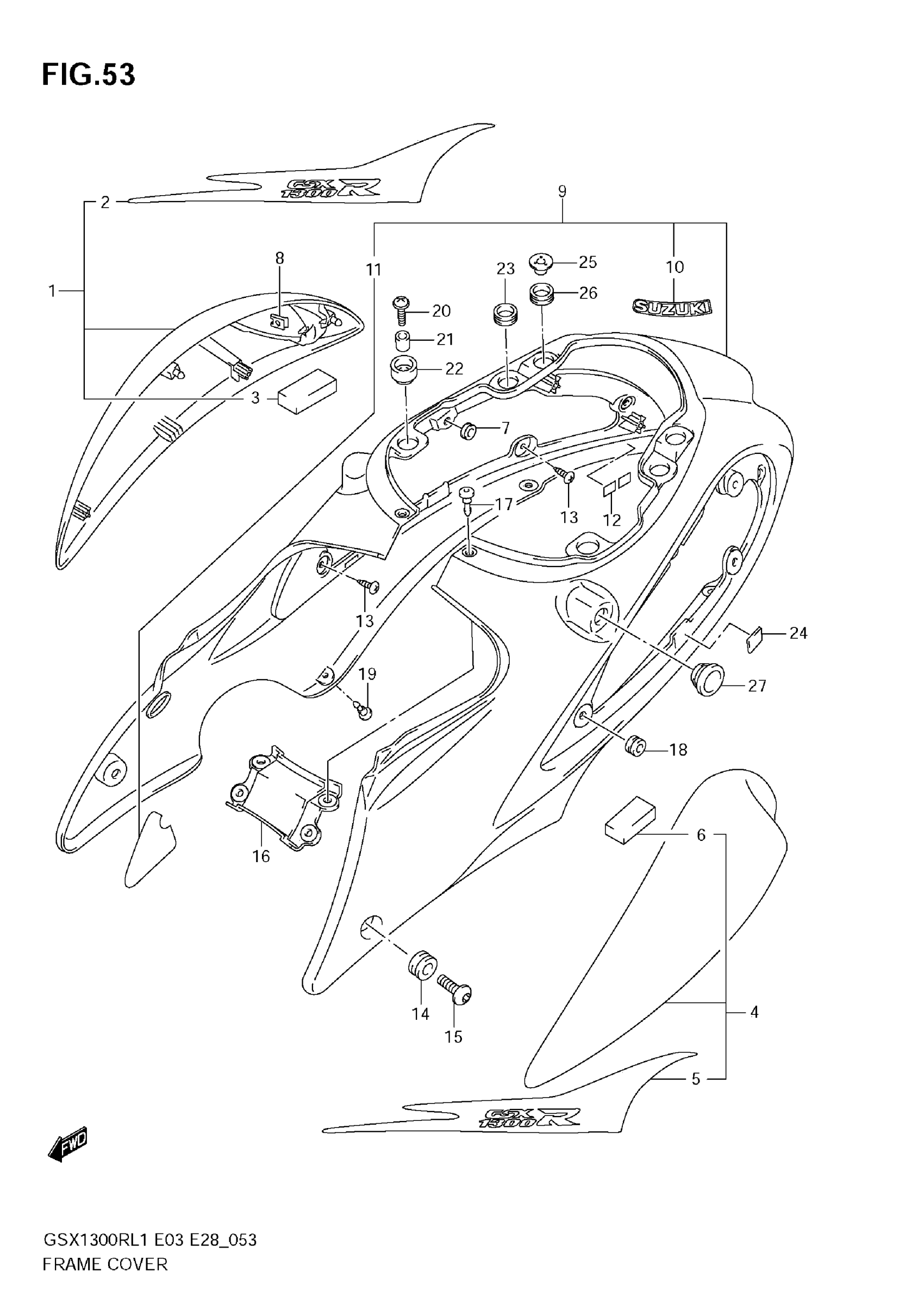

Suzuki GSX1300RL1 (2011) FRAME COVER Diagram

#

Description
Price

1

COVER,FRAME,R(B This part replaces 47110-15H10-YAY.

47110-15H11-YAY

$255.73

1

COVER, FRAME RH (BLUE)

47110-15H10-YKZ

Unavailable

1

COVER,FRAME,R(W This part replaces 47110-15H10-YPA.

47110-15H11-YPA

Unavailable

2

TAPE, RH | FOR YAY

68135-15H20-HUZ

$78.80

2

TAPE, RH | FOR YKZ

68135-15H20-JFF

Unavailable

2

TAPE, RH | FOR YPA

68135-15H20-HWV

$78.80

3

CUSHION

47511-15H00

$3.71

4

COVER,FRAME L B This part replaces 47210-15H10-YAY.

47210-15H11-YAY

$254.73

4

COVER, FRAME LH (BLUE)

47210-15H10-YKZ

Unavailable

4

COVER,FRAME,L(W This part replaces 47210-15H10-YPA.

47210-15H11-YPA

$242.33

5

TAPE, LH | FOR YAY

68145-15H20-HUZ

$78.80

5

TAPE, LH | FOR YKZ

68145-15H20-JFF

Unavailable

5

TAPE, LH | FOR YPA

68145-15H20-HWV

Unavailable

6

CUSHION

47511-15H00

$3.71

7

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

$2.10

8

NUT This part replaces 09148-04034.

09148-04015

$2.36

9

COVER,FRAME CTR This part replaces 47310-15H20-YAY.

47310-15H21-YAY

$441.02

9

COVER, FRAME CENTER (BLUE)

47310-15H20-YKZ

Unavailable

9

COVER,FRAME CTR This part replaces 47310-15H20-YPA.

47310-15H21-YPA

$476.28

10

EMBLEM,"SUZUKI" | FOR YAY,YKZ This part replaces 68641-19F00-YD8.

68641-19F01-YD8

$10.30

10

.EMBLEM,"SUZUKI" (BLACK) | FOR YPA This part replaces 68281-24F10-019.

68281-24F11-019

$10.89

11

TAPE, CENTER

47312-15H00

$18.48

12

CUSHION

45516-01H00

$5.32

13

SCREW (5X15)

09136-05062

$2.19

14

CUSHION

09320-09016

$1.97

15

SCREW (6X20)

09139-06126

$4.04

16

LID, CENTER (BLACK)

47411-15H00-YAY

Unavailable

16

LID, CENTER (BLUE)

47411-15H00-YKZ

Unavailable

16

LID, CENTER (WHITE)

47411-15H00-YPA

Unavailable

17

CLIP

09409-06314-5PK

$2.78

18

CUSHION

09320-09016

$1.97

19

CLIP

09409-06329

$2.79

20

SCREW (6X20)

09136-06105

$1.97

21

SPACER (6.5X10X11)

09180-06288

$2.06

22

CUSHION,FRAME COVER UP This part replaces 47115-16G00.

47115-16G01

$3.37

23

CUSHION, UPPER CENTER

47191-24F00

$5.17

24

CUSHION, LOWER

33651-37000

$4.48

25

WASHER,FRAME COVER

47190-24F21

$9.94

26

CUSHION, UPPER REAR

47191-24F30

$5.36

27

SPACER, SIDE CENTER

47191-24F20

$7.22
