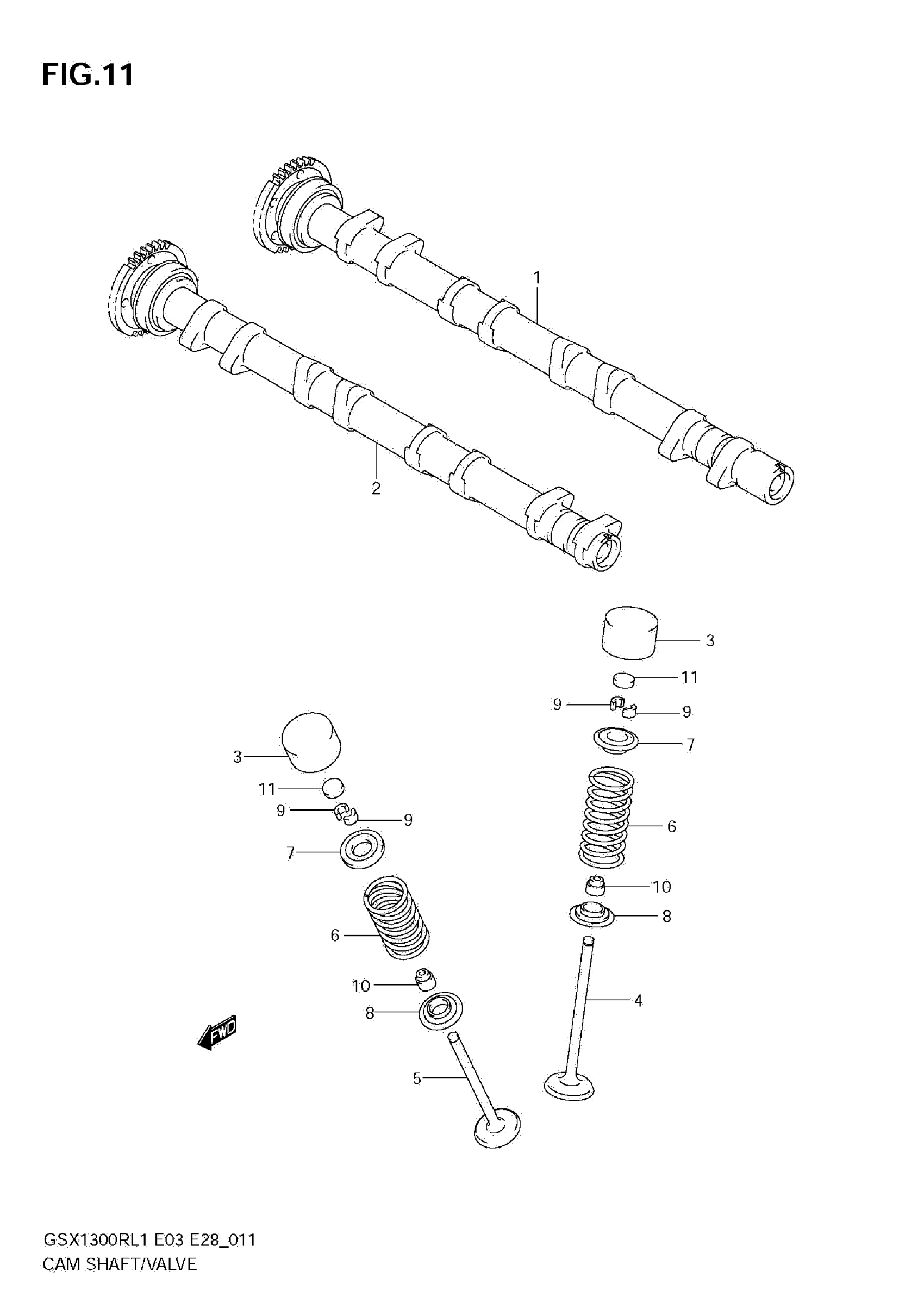

Suzuki GSX1300RL1 (2011) CAMSHAFT/VALVE Diagram

#

Description
Price

1

CAMSHAFT, INTAKE

12710-15H00

$495.37

2

CAMSHAFT, EXHAUST

12720-15H00

$385.82

3

TAPPET This part replaces 12891-02F00.

12891-02F10

$52.61

4

VALVE,INTAKE This part replaces 12911-15H00.

12911-15H01

$116.18

5

VALVE,EXHAUST

12912-15H00

$167.93

6

SPRING, VALVE

12921-15H00

$17.12

7

RETAINER,VALVE SPRING

12931-02F10

$15.16

8

SEAT,VALVE SPRING

12933-38400

$5.44

9

COTTER, VALVE

12932-24F00

$2.03

10

OIL SEAL (5X10X9.7)

09289-05011

$6.32

11

SHIM, TAPPET (T:2.30)

12892-41C00-230

$11.38

11

SHIM, TAPPET (T:2.32)

12892-41C00-232

Unavailable

11

SHIM, TAPPET (T:2.35)

12892-41C00-235

$11.83

11

SHIM, TAPPET (T:2.38)

12892-41C00-238

$11.83

11

SHIM, TAPPET (T:2.40)

12892-41C00-240

$11.83

11

SHIM, TAPPET (T:2.42)

12892-41C00-242

Unavailable

11

SHIM, TAPPET (T:2.45)

12892-41C00-245

$11.83

11

SHIM, TAPPET (T:2.48)

12892-41C00-248

Unavailable

11

SHIM, TAPPET (T:2.50)

12892-41C00-250

$11.83

11

SHIM, TAPPET (T:2.52)

12892-41C00-252

Unavailable

11

SHIM, TAPPET (T:2.55)

12892-41C00-255

$11.83

11

SHIM, TAPPET (T:2.58)

12892-41C00-258

Unavailable

11

SHIM, TAPPET (T:2.60)

12892-41C00-260

$11.38

11

SHIM, TAPPET (T:2.62)

12892-41C00-262

Unavailable

11

SHIM, TAPPET (T:2.65)

12892-41C00-265

$11.38

11

SHIM, TAPPET (T:2.68)

12892-41C00-268

Unavailable

11

SHIM, TAPPET (T:2.70)

12892-41C00-270

$11.38

11

SHIM, TAPPET (T:2.72)

12892-41C00-272

Unavailable

11

SHIM, TAPPET (T:2.75)

12892-41C00-275

$9.69

11

SHIM, TAPPET (T:2.78)

12892-41C00-278

Unavailable

11

SHIM, TAPPET (T:2.80)

12892-41C00-280

$11.38

11

SHIM, TAPPET (T:2.82)

12892-41C00-282

Unavailable

11

SHIM, TAPPET (T:2.85)

12892-41C00-285

$11.83

11

SHIM, TAPPET (T:2.88)

12892-41C00-288

Unavailable

11

SHIM, TAPPET (T:2.90)

12892-41C00-290

$11.38

11

SHIM, TAPPET (T:2.92)

12892-41C00-292

Unavailable

11

SHIM, TAPPET (T:2.95)

12892-41C00-295

$11.83

11

SHIM, TAPPET (T:2.98)

12892-41C00-298

Unavailable

11

SHIM, TAPPET (T:3.00)

12892-41C00-300

$11.60

11

SHIM, TAPPET (T:3.02)

12892-41C00-302

Unavailable

11

SHIM, TAPPET (T:3.05)

12892-41C00-305

$11.83

11

SHIM, TAPPET (T:3.08)

12892-41C00-308

Unavailable

11

SHIM, TAPPET (T:3.10)

12892-41C00-310

$11.38

11

SHIM, TAPPET (T:3.12)

12892-41C00-312

Unavailable

11

SHIM, TAPPET (T:3.15)

12892-41C00-315

Unavailable

11

SHIM, TAPPET (T:3.18)

12892-41C00-318

Unavailable

11

SHIM, TAPPET (T:3.20)

12892-41C00-320

$11.60

11

SHIM, TAPPET (T:3.22)

12892-41C00-322

Unavailable

11

SHIM, TAPPET (T:3.25)

12892-41C00-325

$11.83

11

SHIM, TAPPET (T:3.28)

12892-41C00-328

Unavailable

11

SHIM, TAPPET (T:3.30)

12892-41C00-330

$11.83

11

SHIM, TAPPET (T:3.32)

12892-41C00-332

Unavailable

11

SHIM, TAPPET (T:3.35)

12892-41C00-335

$11.83

11

SHIM, TAPPET (T:3.38)

12892-41C00-338

Unavailable

11

SHIM, TAPPET (T:3.40)

12892-41C00-340

$11.83

11

SHIM, TAPPET (T:3.42)

12892-41C00-342

Unavailable

11

SHIM, TAPPET (T:3.45)

12892-41C00-345

Unavailable

11

SHIM, TAPPET (T:3.48)

12892-41C00-348

Unavailable

11

SHIM, TAPPET (T:3.50)

12892-41C00-350

$11.83

12

SHIM SET, TAPPET | OPT NOT ILLUSTRATED

12800-41810

$1,138.37

13

CASE, TAPPET SHIM | OPT NOT ILLUSTRATED

99000-69471

Unavailable
