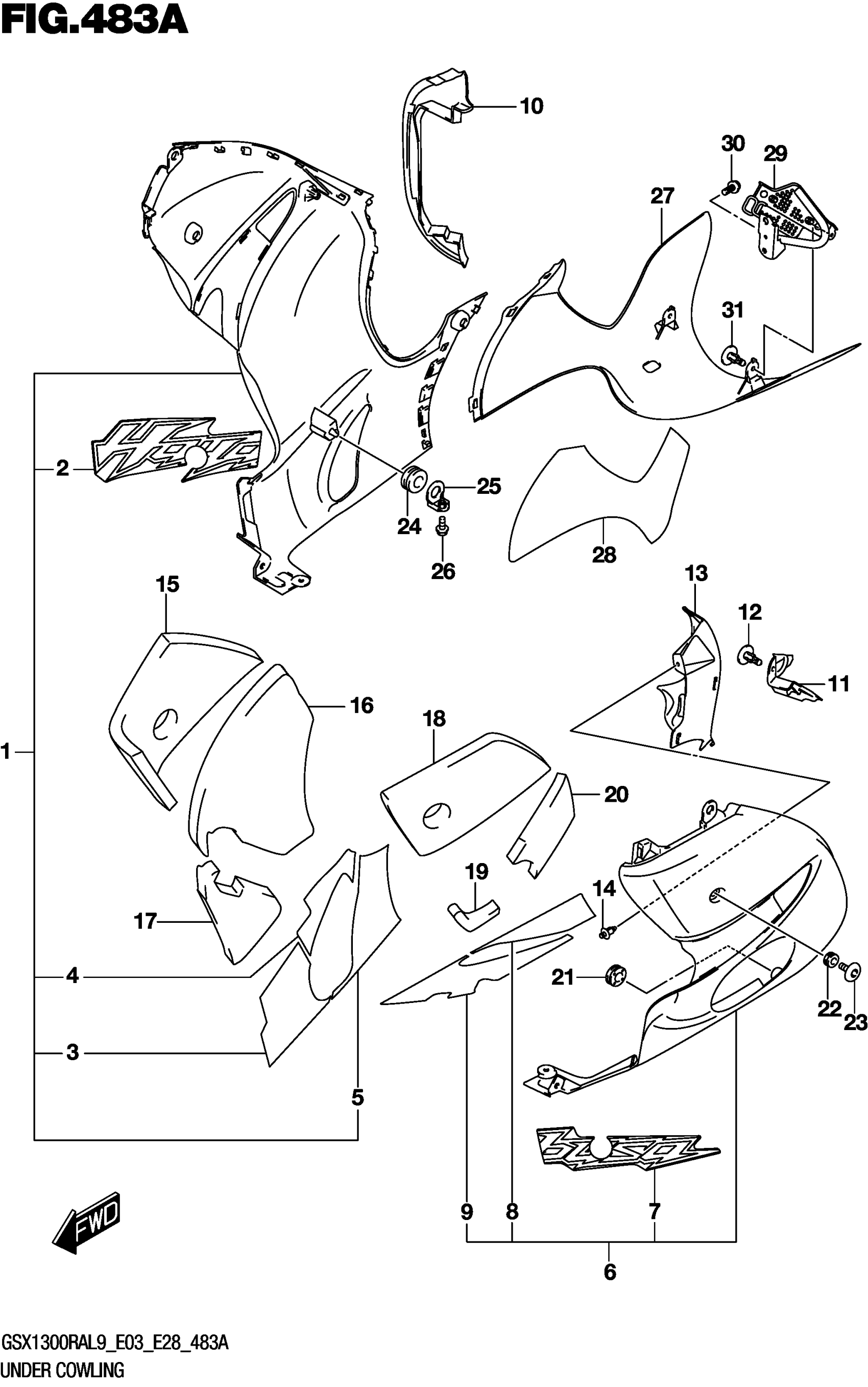

Suzuki GSX1300RAL9 (2019) UNDER COWLING Diagram

#

Description
Price

1-1

COWLING, UNDER RH (GRAY)

94470-15H70-QEB

$292.53

1-2

COWLING, UNDER RH (BLACK)

94470-15H70-YVB

$302.45

2-1

(SILVER/CHARCOAL/GRAY) | FOR QEB

68185-15H60-BWJ

$30.20

2-1

(SILVER/CHARCOAL/GRAY)

68185-15H60-BWJ

$30.20

2-2

.TAPE,UNDER COWLING,R | FOR YVB

68185-15H60-BWK

$30.77

2-2

.TAPE,UNDER COWLING,R

68185-15H60-BWK

$30.77

3

SHIELD, HEAT FRONT RH

94472-15H00

$23.00

4

SHIELD, HEAT CENTER RH

94472-15H20

$15.23

5

.SHIELD, HEAT RH NO.2

94472-15H10

$23.00

6-1

COWLING, UNDER LH (GRAY)

94480-15H70-QEB

$302.45

6-2

COWLING, UNDER LH (BLACK)

94480-15H70-YVB

$302.45

7-1

.TAPE,UNDER COWLING,L | FOR QEB

68195-15H60-BWJ

$35.63

7-1

.TAPE,UNDER COWLING,L

68195-15H60-BWJ

$35.63

7-2

.TAPE,UNDER COWLING,L | FOR YVB

68195-15H60-BWK

$30.77

7-2

.TAPE,UNDER COWLING,L

68195-15H60-BWK

$30.77

8

SHIELD, HEAT FRONT LH

94482-15H00

$24.57

9

.SHIELD, HEAT LH NO.2

94482-15H10

$16.32

10

PROTECTOR, RH

94475-15H00

$29.57

11

PROTECTOR, RH

94485-15H00

$18.30

12

CLIP

94479-35F00

$5.62

13

COVER, UNDER LH

94489-15H00

$31.58

14

CLIP (5.9X20.5,BLACK) | LH

09409-06314-5PK

$2.78

15

CUSHION, UNDER COWL,RH NO.1

94478-15H00

$65.23

16

CUSHION, UNDER COWL,RH NO.2

94478-15H10

$64.14

17

CUSHION, UNDER COWL,RH NO.3

94478-15H20

$21.37

18

CUSHION, UNDER COWL,LH NO.1

94488-15H00

$50.38

19

CUSHION, UNDER COWL,LH NO.2

94488-15H10

$29.81

20

CUSHION, UNDER COWL LH NO.3

94488-15H21

$24.97

21

CUSHION,UNDER COWLING,L

94479-15H00

$4.48

22

CUSHION (9X18X9.5)

09320-09016

$1.97

23

SCREW (6X20)

09139-06190

$4.17

24

CUSHION (8X26X7)

09320-08028

$3.04

25

PLATE, UNDER COWL

94560-15H00

$10.69

26

BOLT

01550-0612A

$1.97

27-1

COWLING, UNDER REAR (GRAY)

94661-15H00-QEB

$282.65

27-2

COWLING, UNDER REAR (BLACK)

94661-15H00-YVB

$354.23

28

SHIELD, HEAT

94667-15H00

$28.33

29

BRACKET, REAR COWLING

94540-15H01

$83.65

30

BOLT (8X16)

01550-0816A

$2.32

31

CLIP

94479-35F00

$5.62
