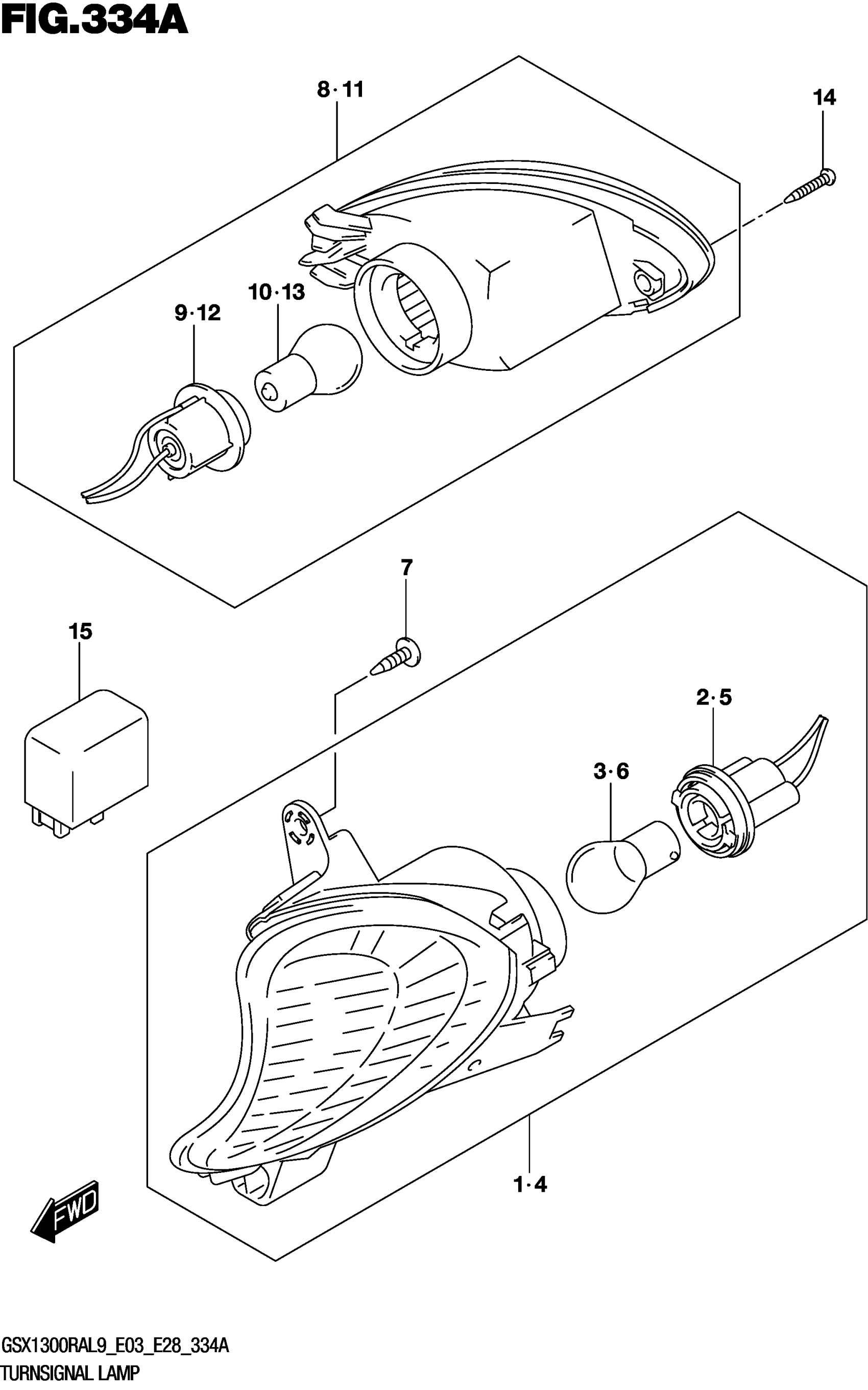

Suzuki GSX1300RAL9 (2019) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURN, RH

35601-15H01

$118.88

2

.SOCKET & CORD, RH

35618-15H00

$29.10

3

.BULB (12V21W)

09471-12186

$12.66

4

LAMP ASSY, FRONT TURN, LH

35602-15H01

$121.17

5

.SOCKET & CORD, LH

35638-15H00

$29.10

6

.BULB (12V21W)

09471-12186

$12.66

7

SCREW

03541-0516B

$1.78

8

LAMP ASSY, REAR TURN, RH

35603-15H01

$97.78

9

.SOCKET & CORD, RH

35658-15H00

$29.10

10

.BULB (12V21W)

09471-12186

$12.66

11

LAMP ASSY, REAR TURN, LH

35604-15H01

$97.78

12

.SOCKET & CORD, LH

35678-15H00

$29.10

13

.BULB (12V21W)

09471-12186

$12.66

14

SCREW (4X20)

09132-04032

$1.99

15

RELAY ASSY,TURNSIGNAL LAMP

38610-03F01

$87.08
