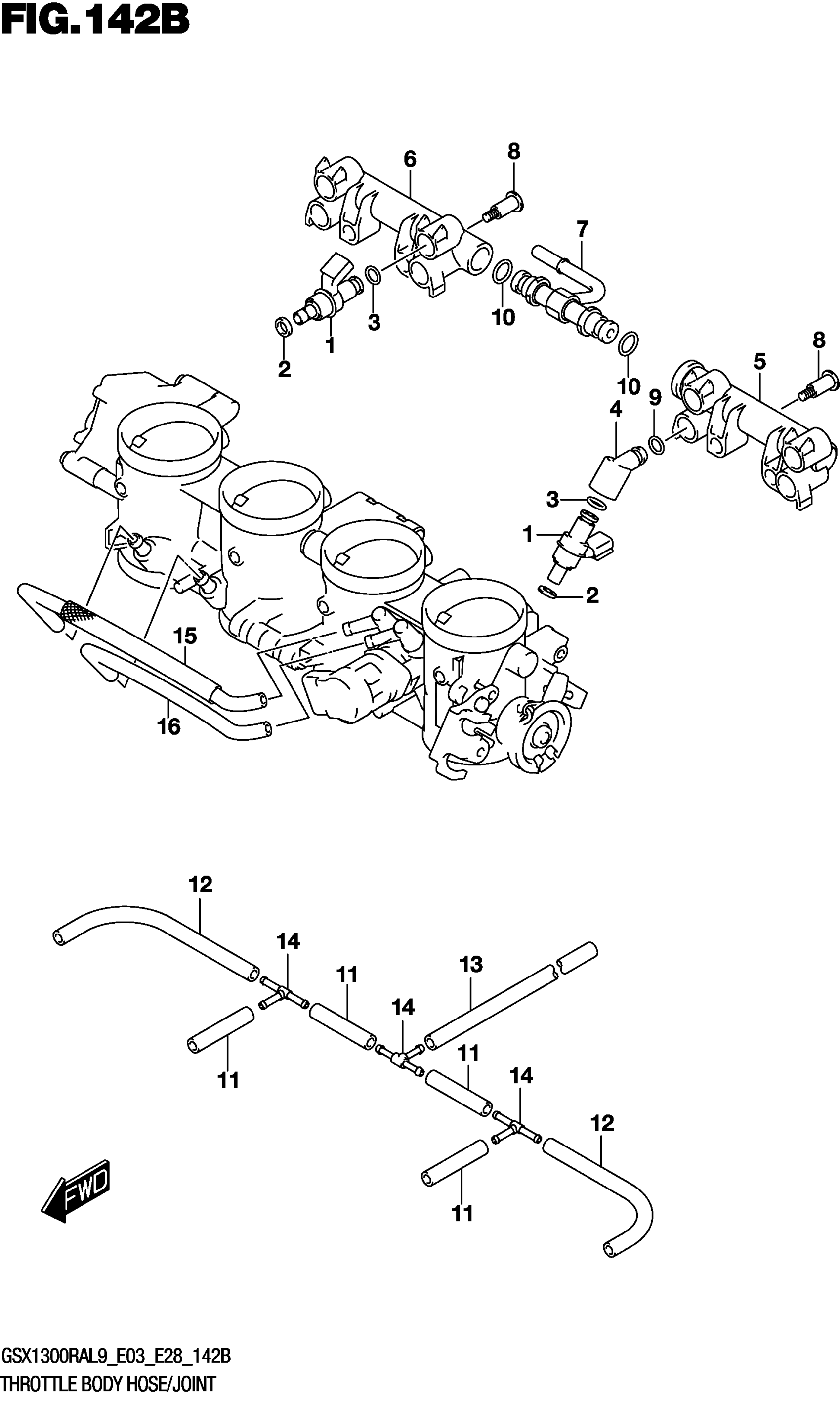

Suzuki GSX1300RAL9 (2019) THROTTLE BODY HOSE/JOINT (GSX1300RAL9 E28) Diagram

Description

Price

.INJECTOR ASSY

15710-21H10

$210.17

.RING,SEAL

15722-21H00

$10.30

.O-RING

15721-21H00

$8.31

PIPE, FUEL

13473-21H00

$20.42

PIPE, FUEL

13474-21H00

$116.28

PIPE, FUEL

13474-21H10

Unavailable

JOINT

13473-15H10

Unavailable

.SCREW

13601-35F00

$6.86

.O-RING

15721-24F00

$8.31

O-RING

15721-10G00

$8.31

HOSE,RUBBER(L:3 This part replaces 13697-24F00.

13697-24F01

$2.80

HOSE,RUBBER(L:1 This part replaces 13697-24F20.

13697-24F21

$3.27

HOSE, RUBBER (L:170)

13697-35F00

Unavailable

T JOINT

13471-24F30

$18.60

TUBE This part replaces 13680-21H10.

13680-21H11

$19.80

TUBE This part replaces 13698-21H00.

13698-21H01

$10.37
