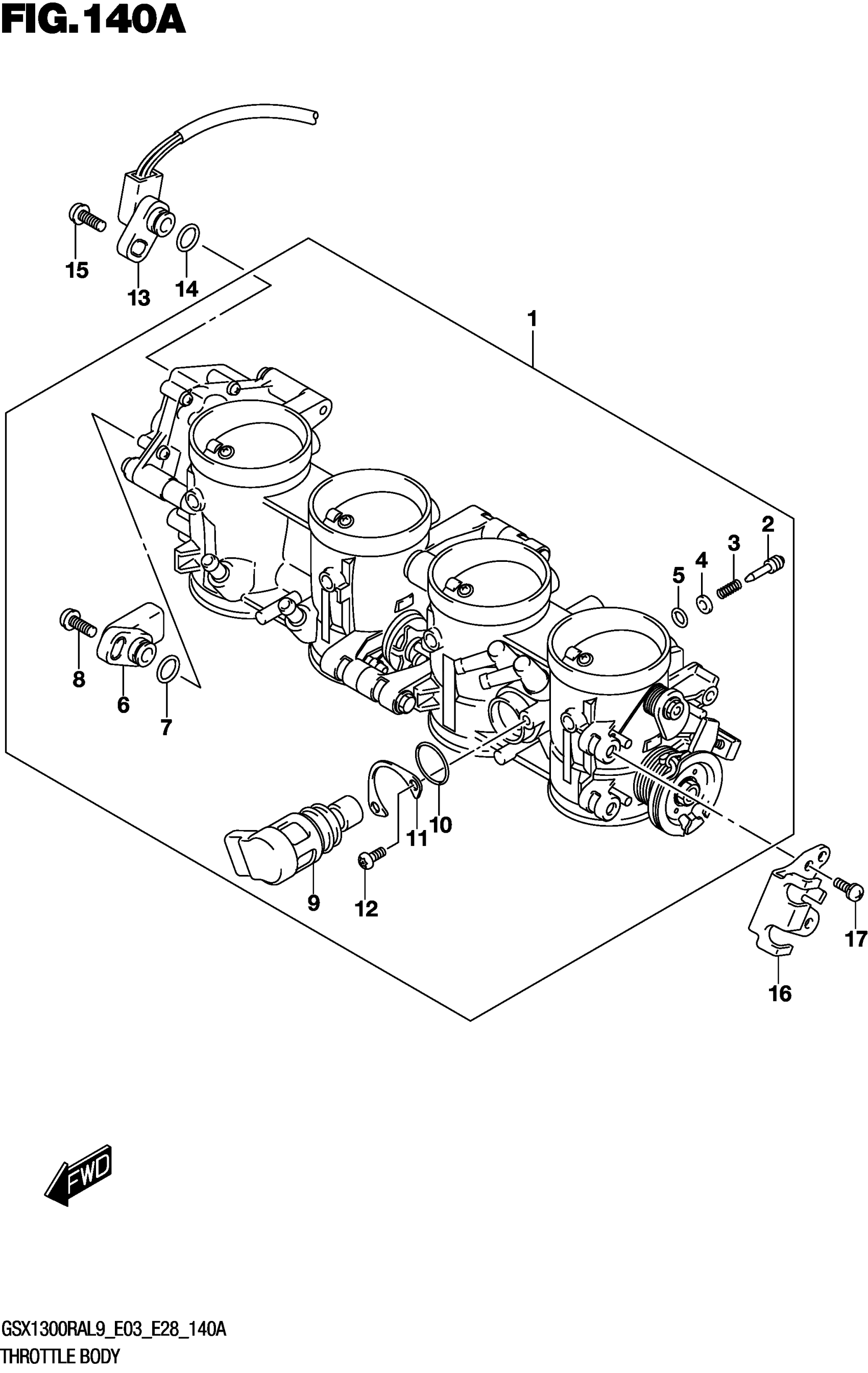

Suzuki GSX1300RAL9 (2019) THROTTLE BODY (GSX1300RAL9 E03) Diagram

Description

Price

THROTTLE BODY

13406-15H20

$2,459.07

.SCREW,AIR ADJUST

13269-18G00

$11.83

.SPRING

13271-43E00

Unavailable

.WASHER

13291-26E00

$2.93

.O RING

13295-26E00

$4.34

.SENSOR ASSY, THROTTLE MAIN

13580-18G00

$205.80

.O-RING

13575-40F00

$4.09

.SCREW

13605-40F00

$3.71

.VALVE ASSY, ISC

18117-15H12

$362.80

.O-RING

18119-05H00

$3.95

.PLATE,ISC VALVE

13428-15H00

Unavailable

.SCREW

13605-15H00

$7.12

.SENSOR ASSY

13580-40F31

$212.03

.O-RING

13575-40F00

$4.09

.SCREW

13605-40F00

$3.71

PLATE, STAY

13565-15H00

Unavailable

.SCREW

13601-21H00

Unavailable
