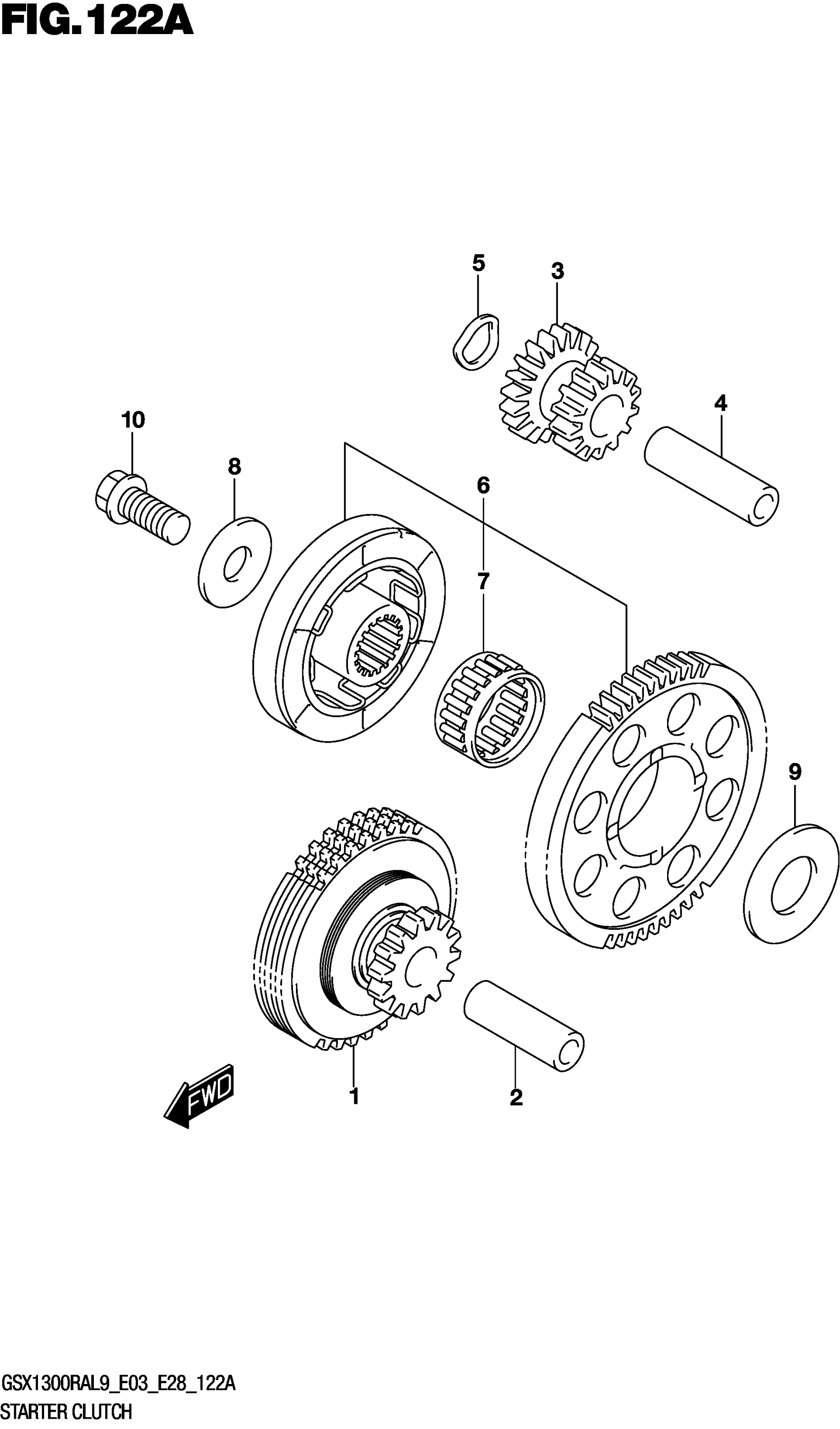

Suzuki GSX1300RAL9 (2019) STARTER CLUTCH Diagram

#

Description
Price

1

LIMITER ASSY,START ID GR NO.1

12600-24F00

$98.53

1

LIMITER ASSY,START ID GR NO.1

12600-24F00

$98.53

2

PIN,STARTER IDLE GEAR NO.1

12615-24F00

$10.05

3

GEAR,STARTER IDLE NO.2 (NT:16

12612-24F00

$63.49

3

GEAR,STARTER IDLE NO.2 (NT:16

12612-24F00

$63.49

4

PIN

12151-05200

$11.96

5

WASHER

09164-14008

$2.09

6

CLUTCH, STARTER ONE WAY (NT:44)

12600-24861

$432.40

6

CLUTCH, STARTER ONE WAY (NT:44)

12600-24861

$432.40

7

BEARING, STARTER CLUTCH GEAR

09263-28031

$43.98

8

WASHER

08211-10285

$3.32

9

WASHER

08211-20403

$4.09

10

BOLT (10X23)

09103-10189

$3.83
