2019 Suzuki GSX1300RAL9 Meter Panel Diagram

← All diagrams

Find the part on the Meter Panel diagram for your 2019 Suzuki GSX1300RAL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

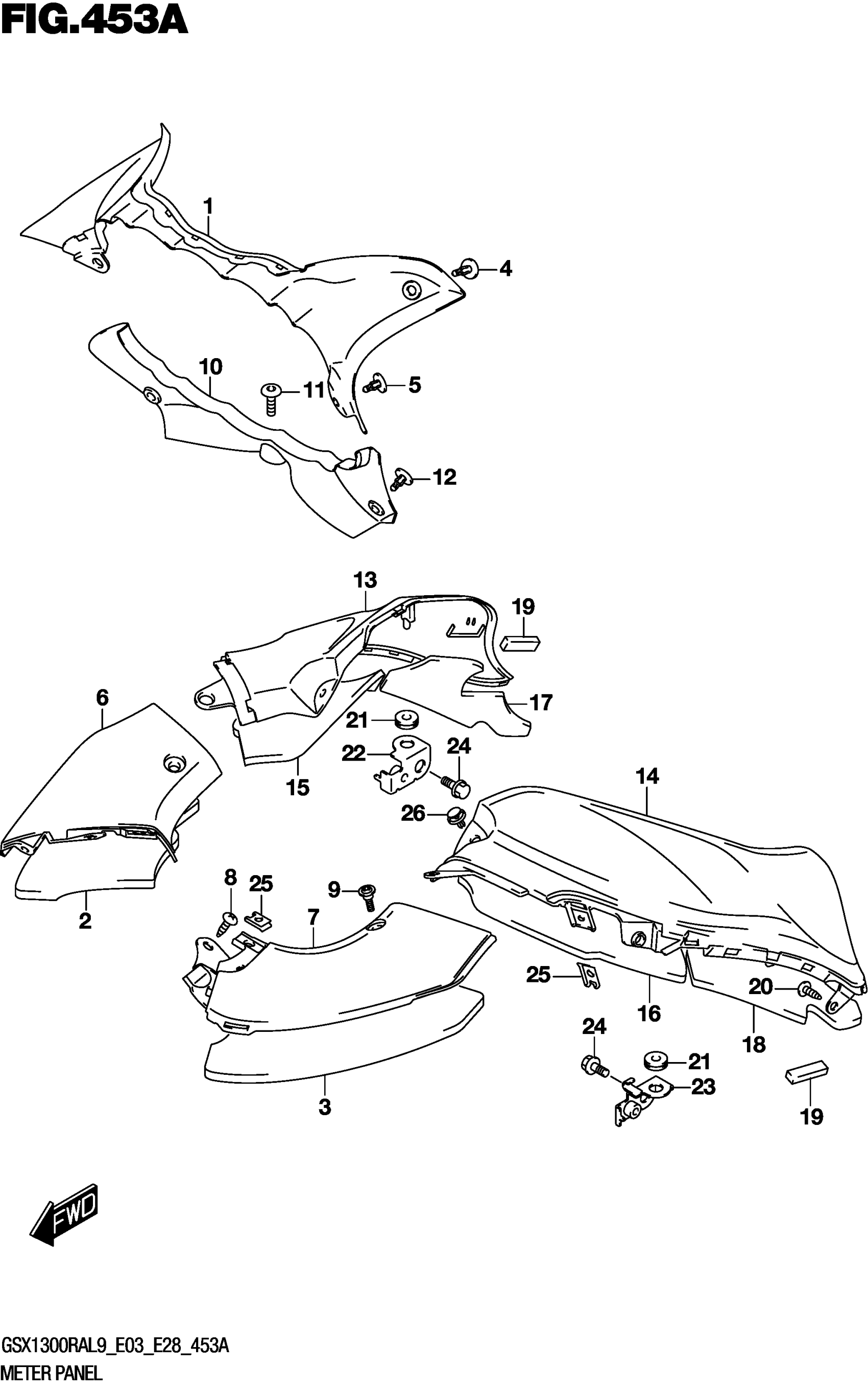

2019 Suzuki GSX1300RAL9 Meter Panel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PANEL, METER UPPER

94424-15H00

1
Out of stock

2

CUSHION, RH

94643-15H01

1
Out of stock

3

CUSHION, LH

94644-15H01

1
Out of stock

4

CLIP (5.9X20.5,BLACK)

09409-06314-5PK

2
Out of stock

5

CLIP (D:2.4,ID:23.7)

09409-07333

2
Out of stock

6

PANEL, METER RH

94641-15H00

1
Out of stock

7

PANEL, METER LH

94651-15H00

1
Out of stock

8

SCREW, SEAT TAIL COVER

03241-1516A

2
Out of stock

9

SCREW (5X18)

09139-05504

2
Out of stock

10

PANEL, METER REAR

94425-15H00

1
Out of stock

11

SCREW (5X13)

09139-05503

1
Out of stock

12

CLIP, LOWER

09409-08327

2
Out of stock

13

PANEL, SIDE RH

94621-15H00

1
Out of stock

14

PANEL, SIDE LH

94631-15H00

1
Out of stock

15

CUSHION, FRONT RH

94622-15H01

1
Out of stock

16

CUSHION, FRONT LH

94632-15H01

1
Out of stock

17

CUSHION, REAR RH

94623-15H01

1
Out of stock

18

CUSHION, REAR LH

94633-15H01

1
Out of stock

19

CUSHION, FUEL CUT

33652-02H00

2
Out of stock

20

SCREW

03541-0516A

6
Out of stock

21

CUSHION

47191-06J00

2
Out of stock

22

BRACKET RH

94520-24F20

1
Out of stock

23

BRACKET LH

94530-24F20

1
Out of stock

24

BOLT (6X20)

01550-0620A

2
Out of stock

25

NUT COWL

94484-24F00

2

$3.95

In stock

26

CLIP, SPEEDOMETER

09409-07332

2
Out of stock
