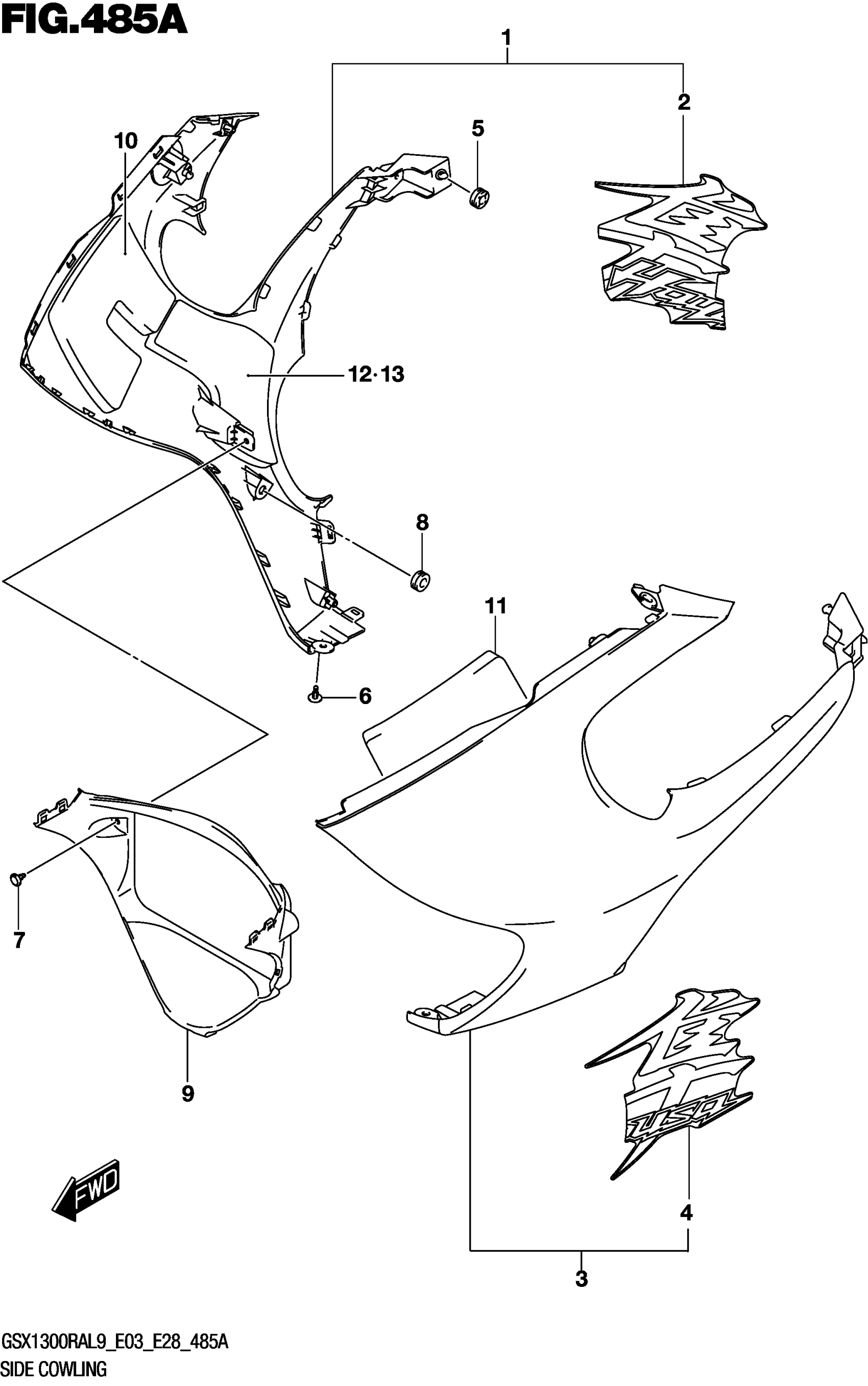

Suzuki GSX1300RAL9 (2019) SIDE COWLING Diagram

#

Description
Price

1-1

COWLING, SIDE RH (GRAY)

94450-15H90-QEB

$625.90

1-2

COWLING, SIDE RH (BLACK)

94450-15H90-YVB

$625.90

2-1

.TAPE, SIDE COWLING RH | FOR QEB

68685-15H70-BWA

$85.12

2-1

.TAPE, SIDE COWLING RH

68685-15H70-BWA

$85.12

2-2

(SILVER/GRAY/CHARCOAL/BLACK) | FOR YVB

68685-15H70-BWH

$75.20

2-2

(SILVER/GRAY/CHARCOAL/BLACK)

68685-15H70-BWH

$75.20

3-1

COWLING, SIDE LH (GRAY)

94460-15H90-QEB

$625.90

3-2

COWLING, SIDE LH (BLACK)

94460-15H90-YVB

$625.90

4-1

.TAPE, SIDE COWLING LH | FOR QEB

68695-15H70-BWA

$82.82

4-1

.TAPE, SIDE COWLING LH

68695-15H70-BWA

$82.82

4-2

(SILVER/GRAY/CHARCOAL/BLACK) | FOR YVB

68695-15H70-BWH

$52.55

4-2

(SILVER/GRAY/CHARCOAL/BLACK)

68695-15H70-BWH

$52.55

5

CUSHION (8X26X7)

09320-08028

$3.04

6

CLIP

94479-35F00

$5.62

7

CLIP

94479-35F00

$5.62

8

CUSHION

09321-10018

$5.45

9

COWLING, UNDER CENTER

94498-15H00

$66.03

10

CUSHION, SIDE UPPER RH

94476-15H01

$40.25

11

CUSHION, SIDE UPPER LH

94486-15H01

$34.06

12

SHIELD, SIDE RH

94474-15H00

$63.38

13

SHIELD, SIDE LH

94484-15H00

$65.20
