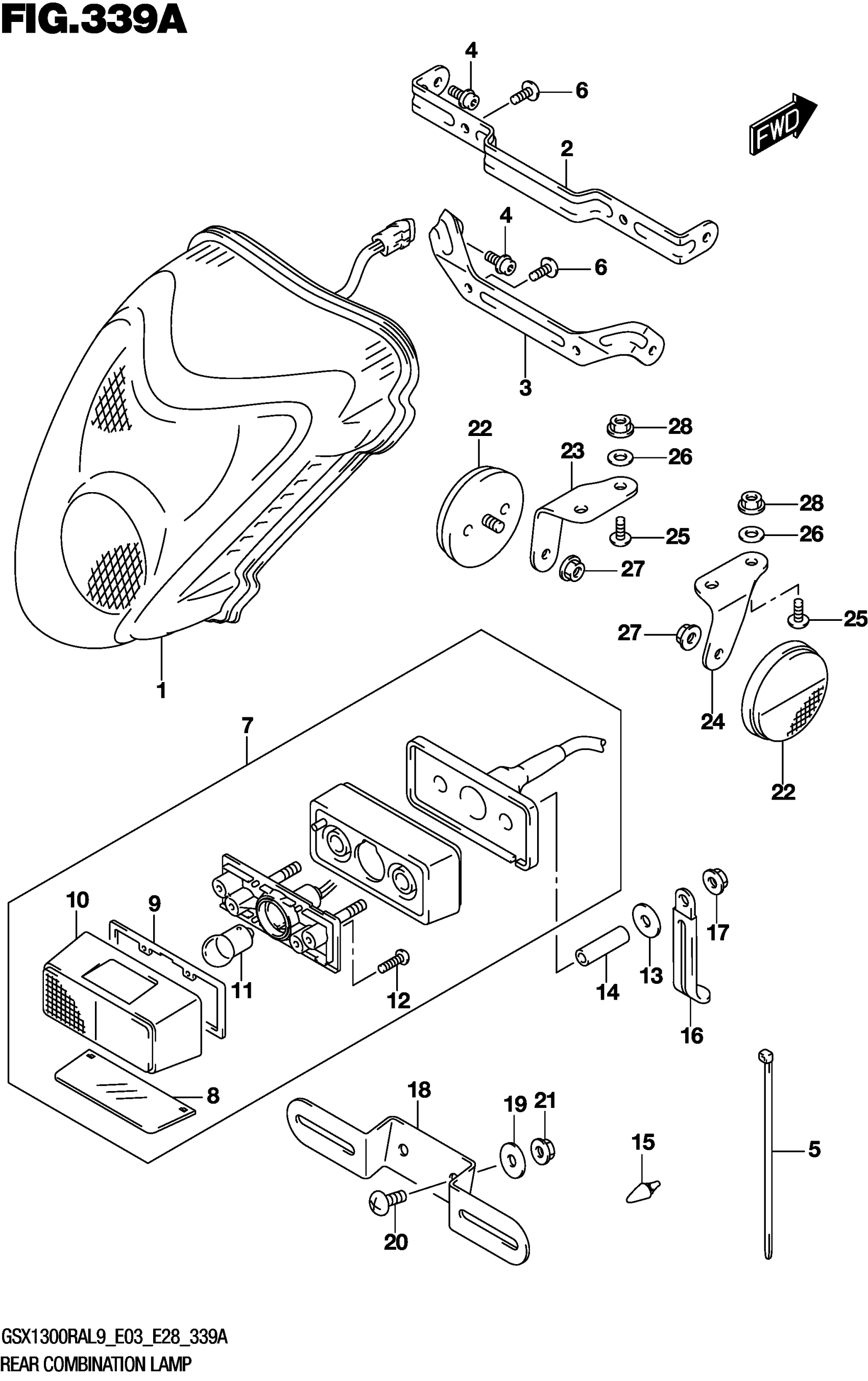

Suzuki GSX1300RAL9 (2019) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION

35710-15H30

$448.13

2

BRACKET, REAR COMBINATION

35726-15H00

$10.25

3

BRACKET, REAR COMBINATION

35726-15H10

$10.25

4

SCREW, REAR COMBINATION LAMP

09106-05031

$2.80

5

CLAMP (L:145)

09407-14407

$2.80

6

SCREW

03541-0516A

$1.37

7

LAMP ASSY,LICENSE

35910-41G32

$99.83

8

.LENS,LICENSE LAMP

35912-41G01

$14.98

9

.GASKET

35913-41G00

$16.07

10

.COVER,LICENSE LAMP

35917-41G00

$39.85

11

BULB (12V5W) This part replaces 09471-12140.

09471-12058

$2.19

12

.SCREW

03211-0416A

$1.43

13

WASHER (6.5X20X1.2)

09160-06077

$1.89

14

SPACER (6.5X9X34)

09180-06356

$5.10

15

CUSHION This part replaces 09321-06028.

09321-06038

$2.05

16

CLAMP (L:45)

09404-06429

$1.82

17

NUT (6X12)

08316-1006A

$2.19

18

BRACKET, LICENSE PLATE

35927-15H00

$17.43

19

WASHER (6.5X20X1.2)

09160-06077

$1.89

20

SCREW

02142-0616A

$1.37

21

NUT (6X12)

08316-1006A

$2.19

22

REFLECTOR ASSY, RR SIDE

35970-14A20

$14.23

23

BRACKET, REAR SIDE REAR, RH

35975-15H00

$10.55

24

BRACKET, REAR SIDE REAR, LH

35976-15H00

$10.55

25

SCREW

02142-0612A

$1.37

26

WASHER (6.5X14X2.0)

09160-06126

$1.92

27

NUT

08316-1005A

$2.19

28

NUT (6X12)

08316-1006A

$2.19
