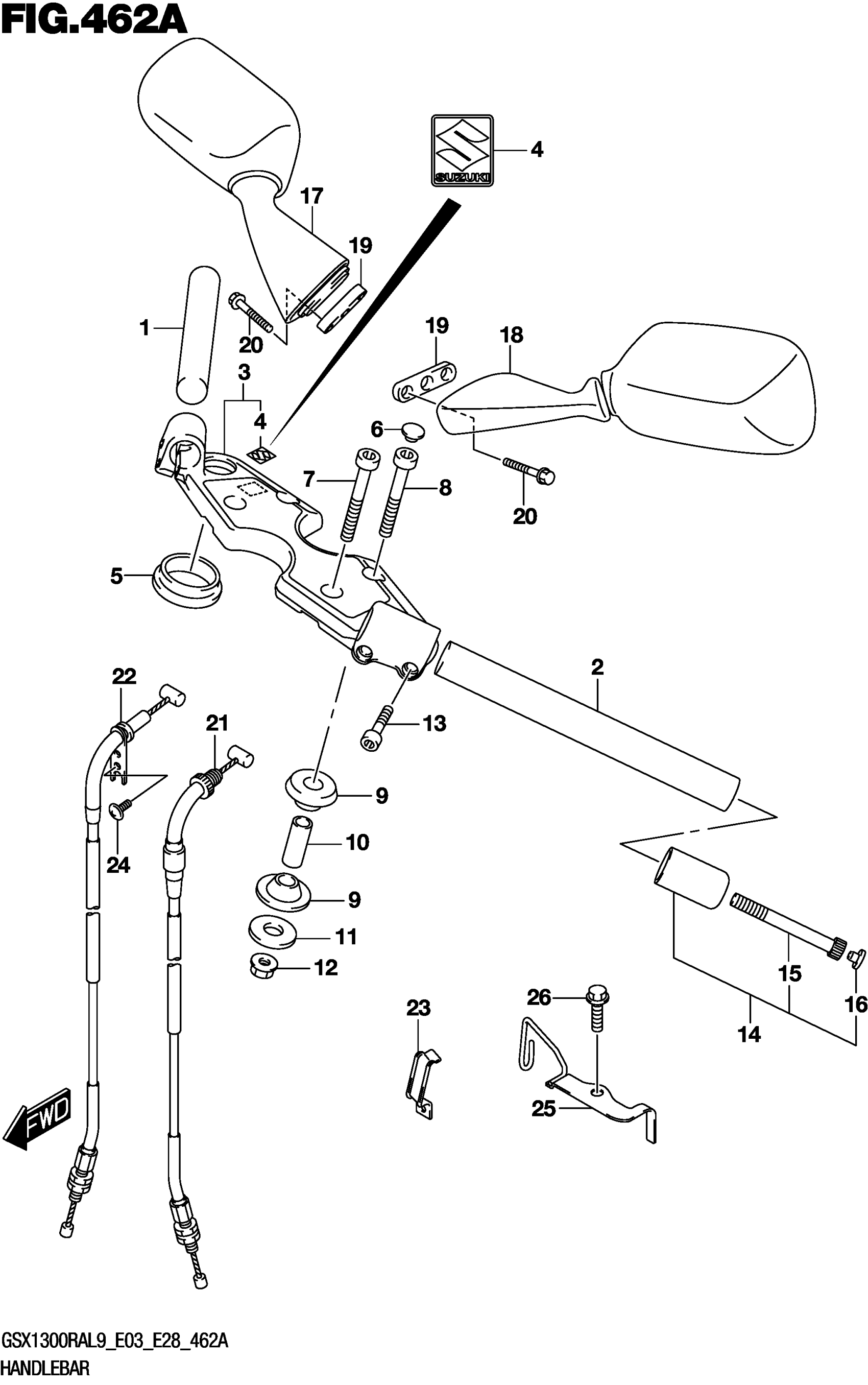

Find the part on the Handlebar diagram for your 2019 Suzuki GSX1300RAL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Suzuki GSX1300RAL9 Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR, RH

56111-15H00

1
Out of stock

2

HANDLEBAR, LH

56151-15H00

1
Out of stock

3

HOLDER, HANDLE

56210-15H10

1
Out of stock

4

EMBLEM,S

68281-47HA0

1
Out of stock

5

CUSHION,HANDLE HOLDER

56247-24F00

2
Out of stock

6

CAP

56246-24F00

4
Out of stock

7

BOLT, FRONT

07130-1065B

2
Out of stock

8

BOLT

07130-1060A

2
Out of stock

9

CUSHION,UPR BRKT This part replaces 56240-01D00.

56240-01D01

8
Out of stock

10

SPACER,STEERING STEM HEAD

56243-01D00

4
Out of stock

11

WASHER (10.5X30X3.2)

09160-10094

4
Out of stock

12

NUT

08319-3110A

4
Out of stock

13

BOLT (6X25)

09106-06090

4

$3.13

In stock

14

BALANCER SET, HANDLEBAR

56200-15830

2
Out of stock

15

BOLT

07130-0660B

2
Out of stock

16

CAP (OD:10)

09250-05009

2
Out of stock

17

MIRROR ASSY, REAR VIEW RH

56500-24F20

1
Out of stock

18

MIRROR ASSY, REAR VIEW LH

56600-24F20

1
Out of stock

19

CUSHION

94576-24F00

2
Out of stock

20

BOLT

01547-0630B

4
Out of stock

21

CABLE ASSY,THRO This part replaces 58300-15H20.

58300-15H21

1
Out of stock

22

CABLE ASSY,THRO This part replaces 58300-15H30.

58300-15H31

1
Out of stock

23

GUIDE,CABLE

58623-24F10

1
Out of stock

24

SCREW (5X10)

09125-05042

1
Out of stock

25

GUIDE, CABLE

58620-15H00

1
Out of stock

26

BOLT

01547-0612A

1
Out of stock
