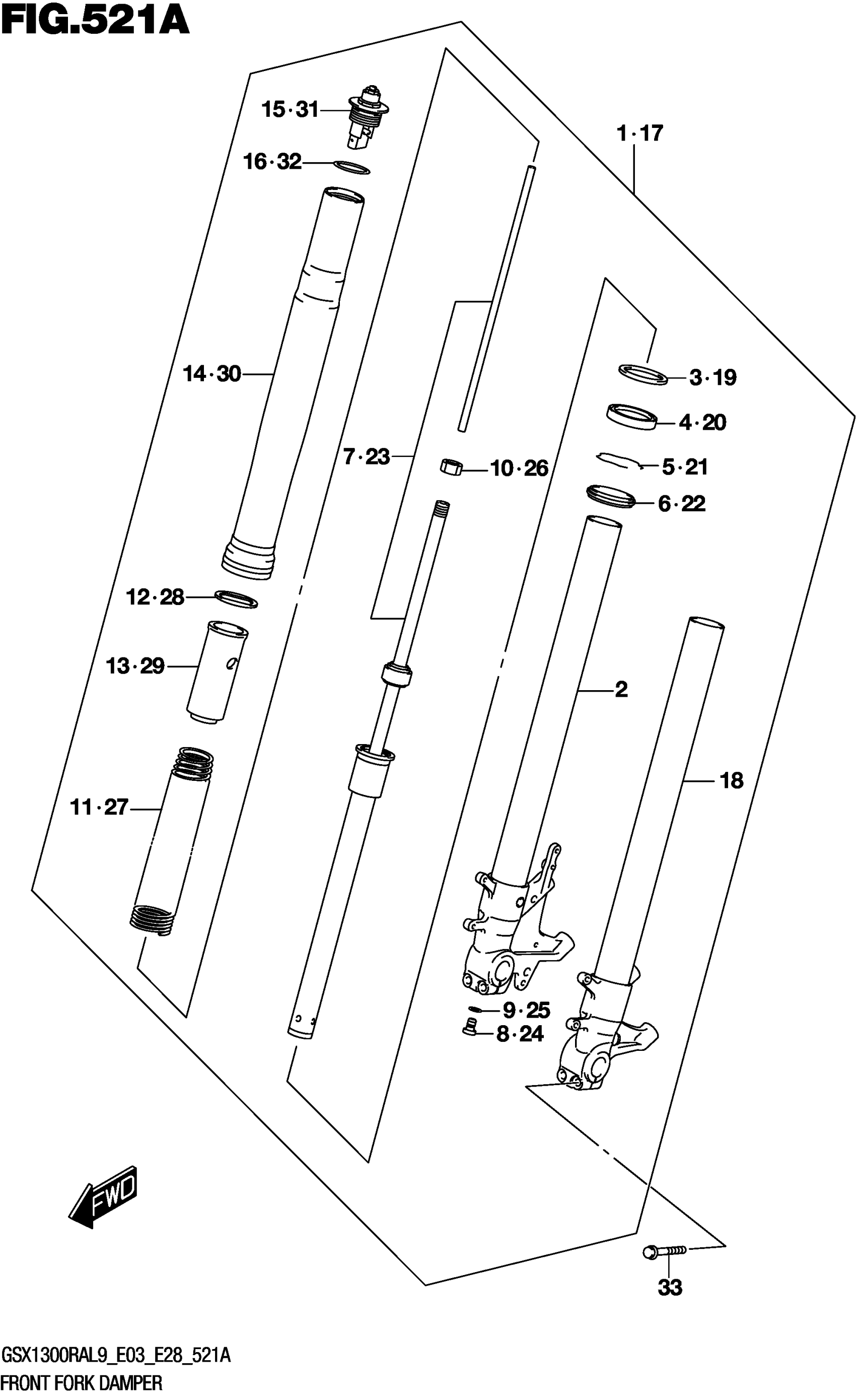

Suzuki GSX1300RAL9 (2019) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY,FRO This part replaces 51103-24F71.

51103-24F72

$2,013.63

2

TUBE,INNER,RH This part replaces 51110-24F71.

51110-24F72

$962.37

3

.WASHER

51158-14200

$4.75

4

.SEAL,OIL

51153-41G00

$23.04

5

.RING,STOPPER

51156-14200

$4.63

6

.SEAL,DUST

51173-41G00

$24.34

7

.CYLINDER

51146-24F50

Unavailable

8

.BOLT

51147-24F50

$9.87

9

.GASKET

51148-41310

$2.14

10

.NUT, ROD

51352-13A60

$3.42

11

.SPRING, FRONT

51171-24F50

$141.73

12

.WASHER

51158-40F30

$11.75

13

.SPACER, SPRING

51176-40F30

$29.78

14

TUBE, OUTER (BRONZE)

51130-24F50

Unavailable

15

.CAP, FRONT FORK

51351-24F50

Unavailable

16

..O RING

62278-14100

$3.69

17

DAMPER ASSY,FR This part replaces 51104-24F70.

51104-24F71

$2,074.03

18

TUBE,INNER,LH This part replaces 51120-24F70.

51120-24F71

$962.37

19

.WASHER

51158-14200

$4.75

20

.SEAL,OIL

51153-41G00

$23.04

21

.RING,STOPPER

51156-14200

$4.63

22

.SEAL,DUST

51173-41G00

$24.34

23

.CYLINDER

51146-24F50

Unavailable

24

.BOLT

51147-24F50

$9.87

25

.GASKET

51148-41310

$2.14

26

.NUT, ROD

51352-13A60

$3.42

27

.SPRING, FRONT

51171-24F50

$141.73

28

.WASHER

51158-40F30

$11.75

29

.SPACER, SPRING

51176-40F30

$29.78

30

TUBE, OUTER (BRONZE)

51130-24F50

Unavailable

31

.CAP, FRONT FORK

51351-24F50

Unavailable

32

..O RING

62278-14100

$3.69

33

BOLT

51166-24F60

$5.10
