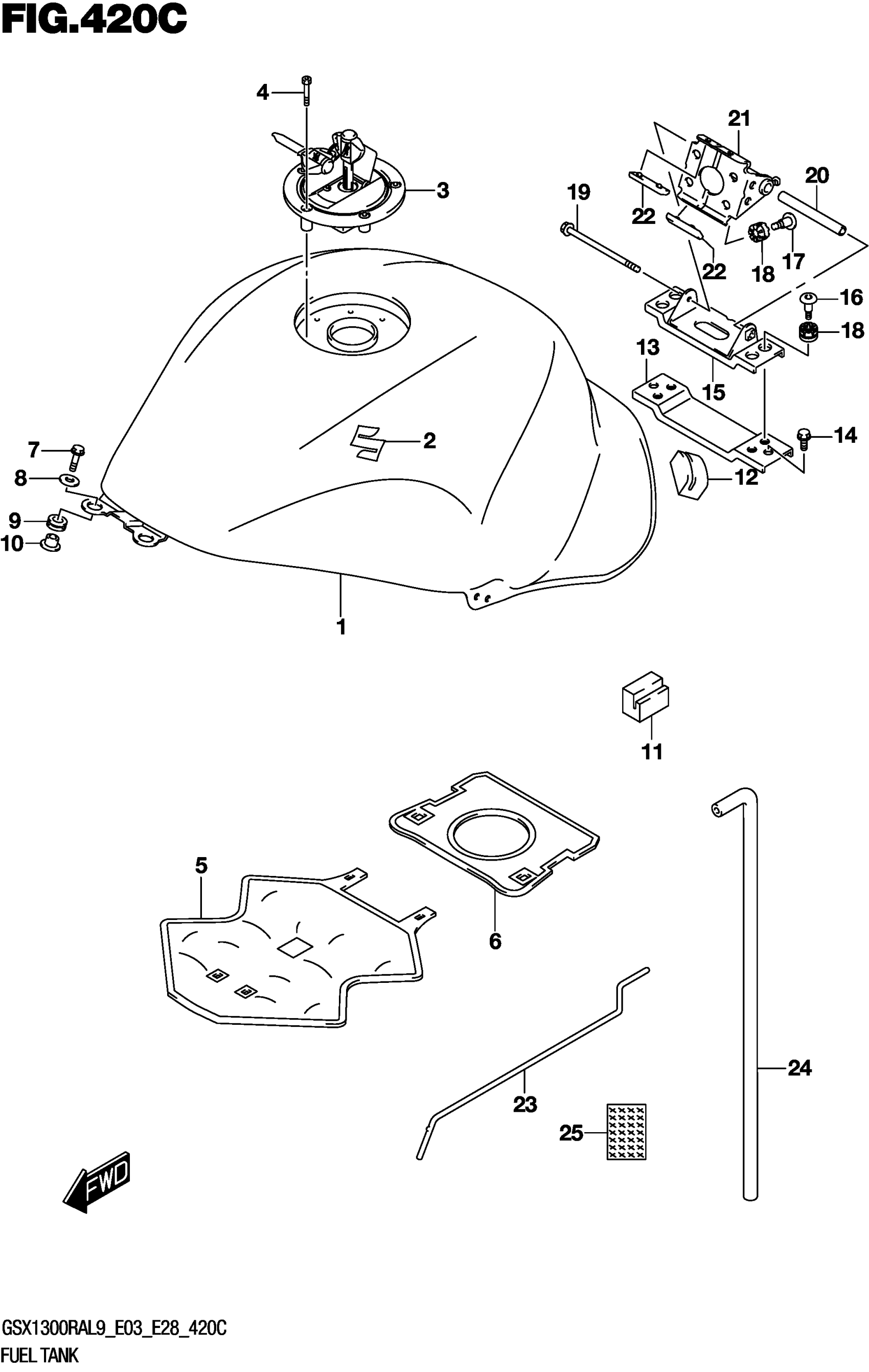

Suzuki GSX1300RAL9 (2019) FUEL TANK (GSX1300RAL9 E33) Diagram

#

Description
Price

1-1

TANK ASSY,FUEL( This part replaces 44100-15H81-QEB.

44100-15H82-QEB

$1,194.02

1-2

TANK ASSY,FUEL( This part replaces 44100-15H81-YVB.

44100-15H82-YVB

$1,188.87

2

EMBLEM, S

68111-47HA0

$40.44

3

CAP SET,FUEL TA This part replaces 44200-16870.

44200-16872

$155.42

4

BOLT (L:20)

09106-05017

$2.83

5

SHIELD,FUEL TANK HEAT NO.1

44191-15H00

$176.77

6

SHIELD, FUEL TANK HEAT NO.2

44191-15H10

$74.08

7

SCREW (6X30)

09139-06204

$5.43

8

WASHER This part replaces 09160-06012.

09160-06054

$1.62

9

CUSHION,FUEL TANK FRONT This part replaces 44511-16G00.

44511-16G01

$4.11

10

SPACER,FUEL TANK FR

44512-16G00

$7.44

11

CUSHION,FUEL TA This part replaces 44541-24F00.

44541-24F01

$5.87

12

CUSHION,FUEL TA This part replaces 44543-15H00.

44543-15H01

$5.12

13

BRACKET,FUEL TANK RR NO.3

44555-15H00

Unavailable

14

BOLT (8X16)

01550-0816A

$2.32

15

BRACKET, FUEL TANK REAR NO.2

44550-15H01

Unavailable

16

SCREW (6X22)

09139-06191

$4.03

17

SCREW (6X22)

09139-06191

$4.03

18

CUSHION (8X18X14)

09320-08071

$3.25

19

BOLT

07120-0695A

$2.58

20

SPACER,FUEL TANK RR

44561-18G00

$16.96

21

BRACKET, FUEL TANK REAR NO.1

44530-15H01

Unavailable

22

CUSHION, SEAT FRONT

45149-44G00

Unavailable

23

STAY,FUEL TANK | OPT

44574-35F00

$15.16

24

HOSE, DRAIN

44423-15H01

$22.32

25

SHIELD, DRAIN HOSE HEAT

44427-15H10

Unavailable
