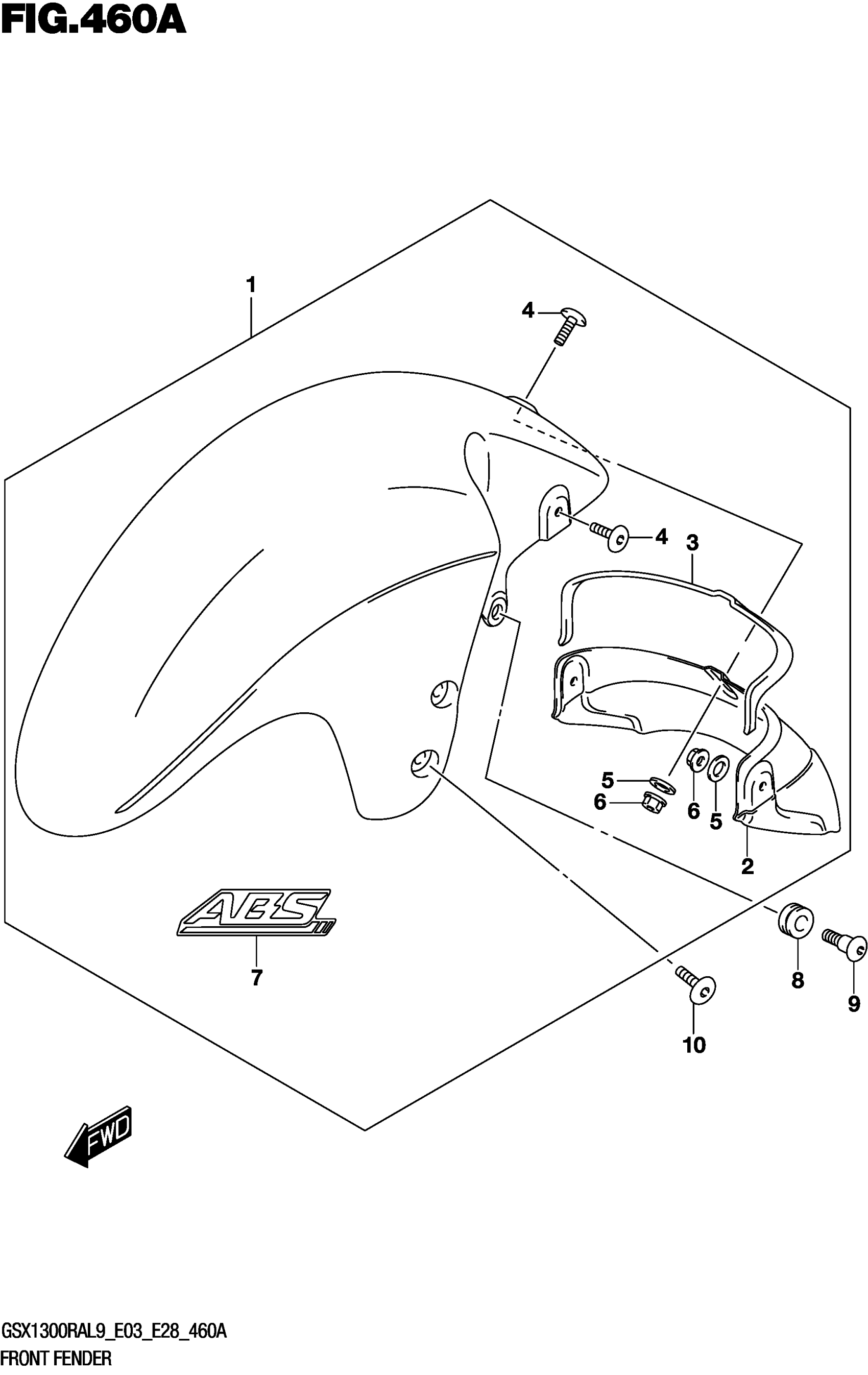

Suzuki GSX1300RAL9 (2019) FRONT FENDER Diagram

#

Description

Price

1-1

FENDER ASSY,FRO This part replaces 53100-15H10-QEB.

53100-15H11-QEB

$254.92

1-2

FENDER ASSY,FRO This part replaces 53100-15H10-YVB.

53100-15H11-YVB

$262.57

2

.MUDGUARD, FRONT FENDER

53331-15H00

$34.07

3

CUSHION (3X5X260)

94424-05H00

$5.88

4

.SCREW (6X16)

09139-06129

$3.16

5

.WASHER (6.5X16X1)

09160-06129

$2.30

6

NUT

08319-3106A

$2.03

7

.EMBLEM,ABS (GRAY) This part replaces 68151-44G00-1ZY.

68151-44G01-1ZY

$9.60

8

CUSHION (9X18X9.5)

09320-09016

$1.97

9

SCREW (6X20)

09139-06190

$4.17

10

SCREW (6X16)

09139-06169

$3.10
