2019 Suzuki GSX1300RAL9 Frame Cover Diagram

← All diagrams

Find the part on the Frame Cover diagram for your 2019 Suzuki GSX1300RAL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

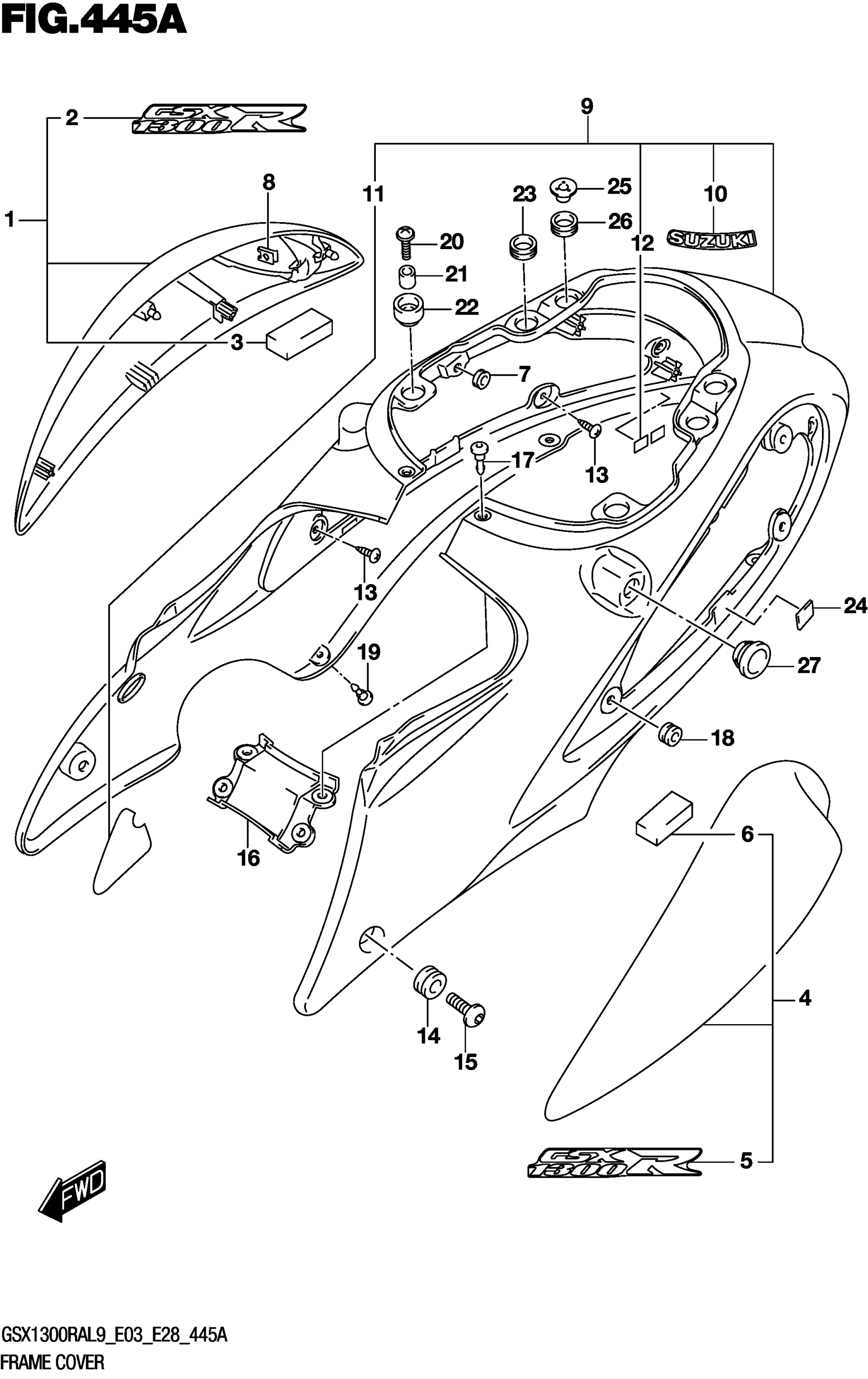

2019 Suzuki GSX1300RAL9 Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1-1

COVER, FRAME RH (GRAY) | FOR QEB

47110-15H30-QEB

1
Out of stock

1-2

COVER, FRAME RH (BLACK) | FOR YVB

47110-15H30-44X

1
Out of stock

2-1

.EMBLEM, FRAME COVER (BLACK) | FOR QEB

68131-15H10-YVB

1
Out of stock

2-2

.EMBLEM, FRAME COVER (SILVER) | FOR 44X

68131-15H10-YD8

1
Out of stock

3

.CUSHION

47511-15H00

2
Out of stock

4-1

COVER, FRAME LH (GRAY) | FOR QEB

47210-15H30-QEB

1
Out of stock

4-2

COVER, FRAME LH (BLACK) | FOR YVB

47210-15H30-44X

1
Out of stock

5-1

.EMBLEM, FRAME COVER (BLACK) | FOR QEB

68131-15H10-YVB

1
Out of stock

5-2

.EMBLEM, FRAME COVER (SILVER) | FOR 44X

68131-15H10-YD8

1
Out of stock

6

.CUSHION

47511-15H00

2
Out of stock

7

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

4
Out of stock

8

NUT This part replaces 09148-04034.

09148-04015

2
Out of stock

9-1

COVER, FRAME CENTER (GRAY) | FOR QEB

47310-15H20-QEB

1
Out of stock

9-2

COVER,FRAME CTR | FOR YVB This part replaces 47310-15H20-44X.

47310-15H21-44X

1
Out of stock

10-1

.EMBLEM,SUZUKI (BLACK) | FOR QEB This part replaces 68641-19F00-YVB.

68641-19F01-YVB

1
Out of stock

10-2

EMBLEM,"SUZUKI" | FOR 44X This part replaces 68641-19F00-YD8.

68641-19F01-YD8

1
Out of stock

11

.TAPE, CENTER

47312-15H00

2
Out of stock

12

CUSHION

45516-01H00

4
Out of stock

13

SCREW (5X15)

09136-05062

6
Out of stock

14

CUSHION (9X18X9.5)

09320-09016

2
Out of stock

15

SCREW (6X20)

09139-06190

2
Out of stock

16-1

LID, CENTER (GRAY)

47411-15H00-QEB

—
Out of stock

16-2

LID, CENTER (BLACK)

47411-15H00-YVB

1
Out of stock

17

CLIP This part replaces 09409-06314.

09409-06314-5PK

4
Out of stock

18

CUSHION (9X18X9.5)

09320-09016

6
Out of stock

19

CLIP

09409-06329

4
Out of stock

20

SCREW (6X20)

09136-06105

2
Out of stock

21

SPACER (6.5X10X11)

09180-06288

2
Out of stock

22

CUSHION,FRAME COVER UP This part replaces 47115-16G00.

47115-16G01

2
Out of stock

23

CUSHION (16X26X8)

47191-24F00

2
Out of stock

24

PROTECTOR (170X95X3.0) | CUT AS REQUIRED

33651-37000

2
Out of stock

25

WASHER,FRAME COVER

47190-24F21

2
Out of stock

26

CUSHION,FRAME COVER UP RR RR

47191-24F30

2
Out of stock

27

CUSHION,FRAME COVER CTR

47191-24F20

2
Out of stock

28

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | COLOR :

SPECIAL NOTE

—
Out of stock

28

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | AGS=YVZ(RED),YWW(WHITE)

SPECIAL NOTE

—
Out of stock
