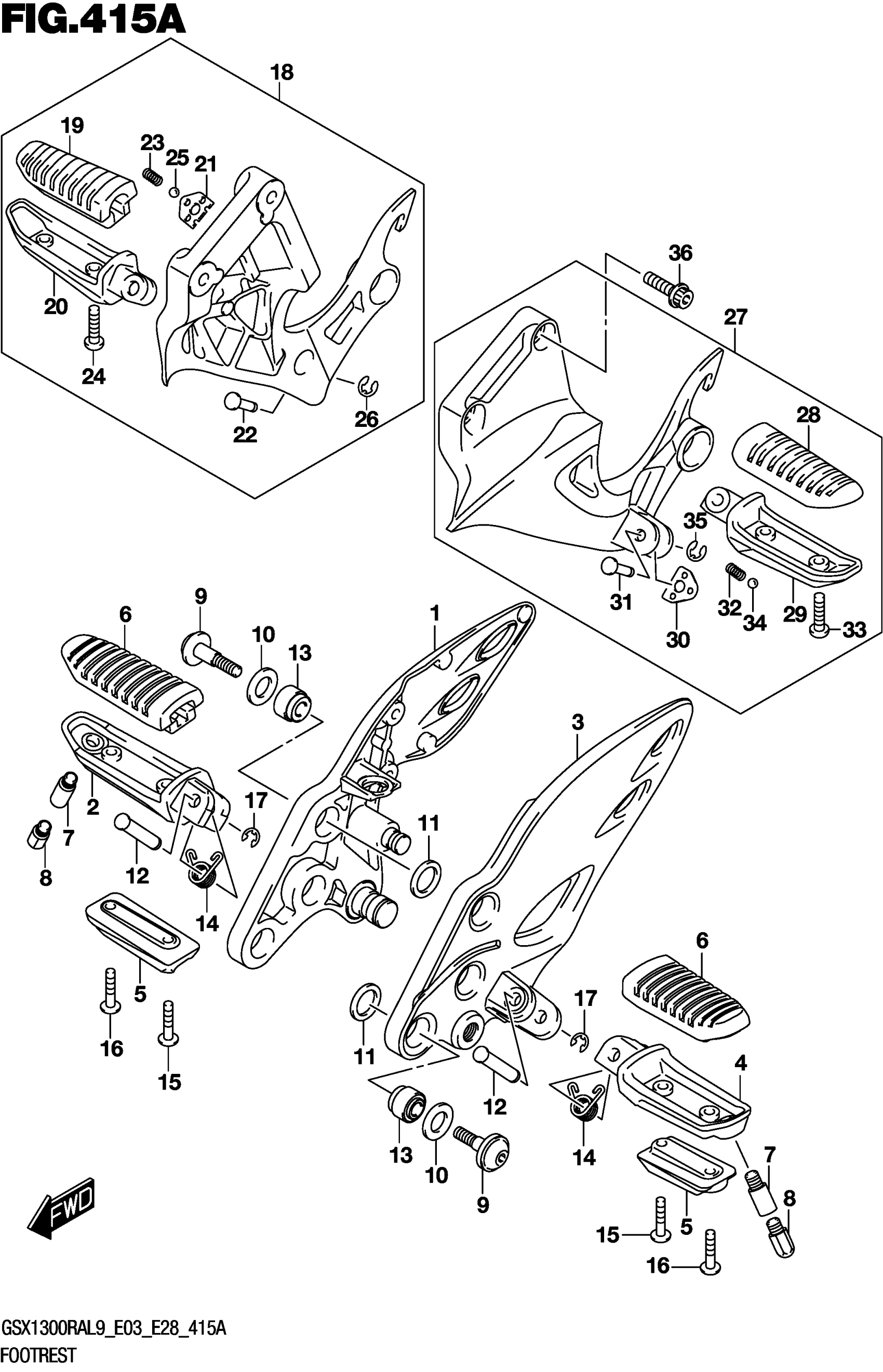

2019 Suzuki GSX1300RAL9 Footrest Diagram

← All diagrams

Find the part on the Footrest diagram for your 2019 Suzuki GSX1300RAL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Suzuki GSX1300RAL9 Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$278.97

In stock

2

BAR,FR FOOTREST,R

43511-44G10

1

$48.39

In stock

3

1

$244.85

In stock

4

BAR,FR FOOTREST,L

43521-44G10

1

$47.04

In stock

5

BALANCER,FR FOOTREST

43536-44G00

2

$58.20

In stock

6

RUBBER, FOOTREST

43550-44G10

2

$37.72

In stock

7

SENSOR,FOOTREST

43576-15H00

2

$14.94

In stock

8

BOLT, BANK SENSOR

43576-15H10

2

$33.67

In stock

9

BOLT (8X30)

09106-08147

6

$6.17

In stock

10

WASHER (13.7X24X2)

09161-13004

6

$3.86

In stock

11

WASHER (17.2X24X2.2)

09161-17002

6

$5.00

In stock

12

PIN

09208-08019

2
Out of stock

13

BUSH (8.4X20X16)

09319-08045

6

$19.64

In stock

14

SPRING

09448-14046

2
Out of stock

15

SCREW

02142-0525A

2

$2.43

In stock

16

SCREW

02142-0530A

2

$2.43

In stock

17

E-RING

08332-1106A

2

$1.52

In stock

18

1

$219.78

In stock

19

.RUBBER,FOOTREST

43550-44G00

1

$40.13

In stock

20

1

$50.57

In stock

21

PLATE,PILLION FOOTREST

43816-01H10

1
Out of stock

22

.PIN

09208-08020

1

$3.62

In stock

23

SPRING

09440-05003

1
Out of stock

24

.SCREW

02142-0516A

2

$1.52

In stock

25

BALL

06111-07004

1
Out of stock

26

E-RING

08332-1106A

1

$1.52

In stock

27

1

$215.70

In stock

28

.RUBBER,FOOTREST

43550-44G00

1

$40.13

In stock

29

1

$49.62

In stock

30

PLATE,PILLION FOOTREST

43816-01H10

1
Out of stock

31

.PIN

09208-08020

1

$3.62

In stock

32

SPRING

09440-05003

1
Out of stock

33

.SCREW

02142-0516A

2

$1.52

In stock

34

BALL

06111-07004

1
Out of stock

35

E-RING

08332-1106A

1

$1.52

In stock

36

BOLT (8X30)

09106-08121

4

$3.13

In stock
