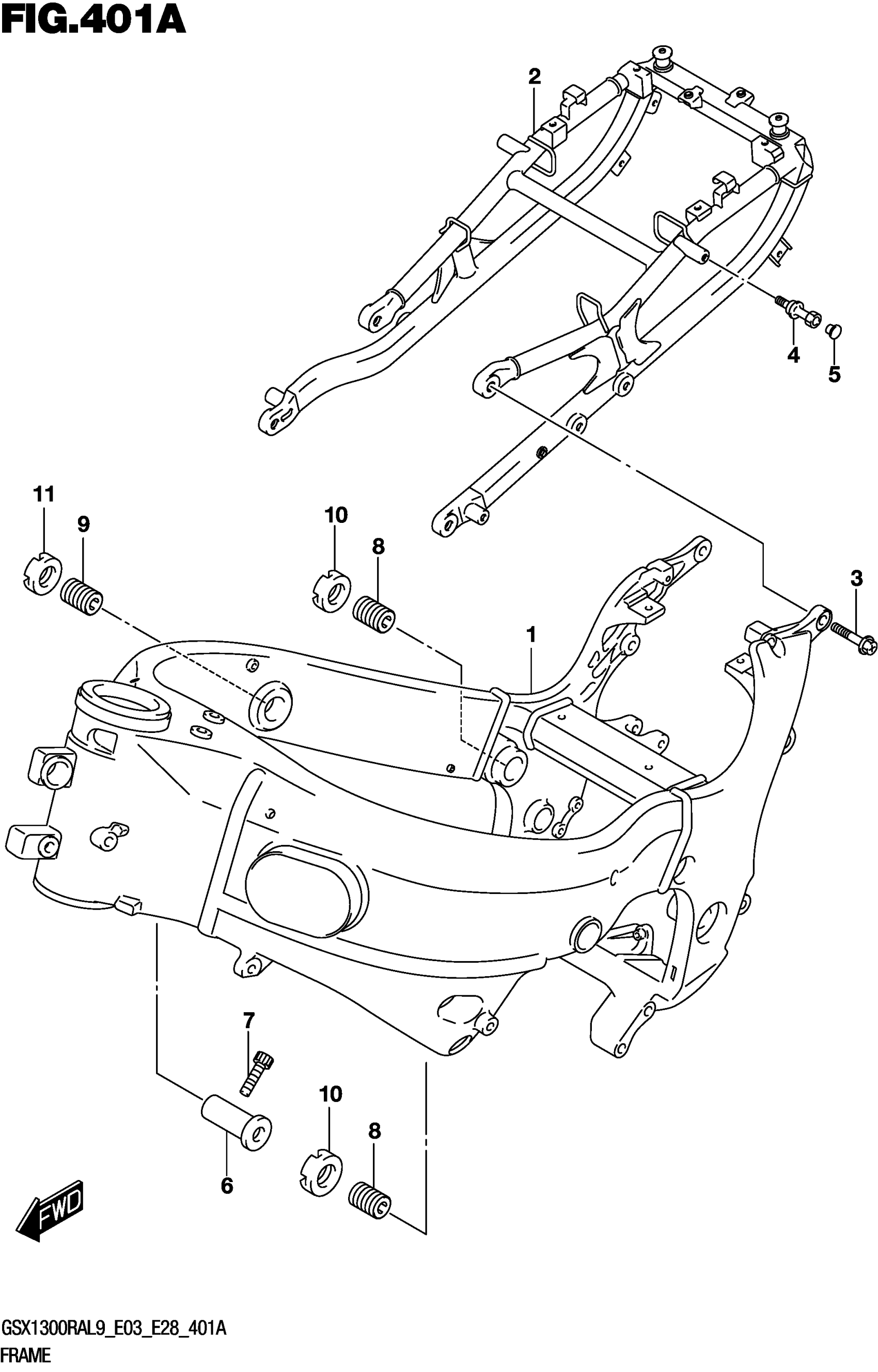

Suzuki GSX1300RAL9 (2019) FRAME Diagram

#

Description
Price

1

FRAME (BLACK)

41100-15H13-YAP

$4,921.38

2

RAIL, SEAT

41200-15H13

$966.83

3

BOLT, SEAT RAIL

09103-10296

$6.44

4

HOOK, SEAT RAIL

46315-24F01

$47.00

5

CAP (OD:10)

09250-05009

$2.19

6

SPACER,ENGINE MTG

41911-33E10

$26.20

7

BOLT (8X30)

09106-08105

$3.78

8

BOLT,CRANK CASE ADJUST

41921-15H20

$54.68

9

BOLT,CRANK CASE ADJUST

41921-15H30

$41.28

10

NUT,CRANK CASE ADJUST

41922-19F12

$29.75

11

NUT,CRANK CASE ADJUST

41922-33E30

$21.97
