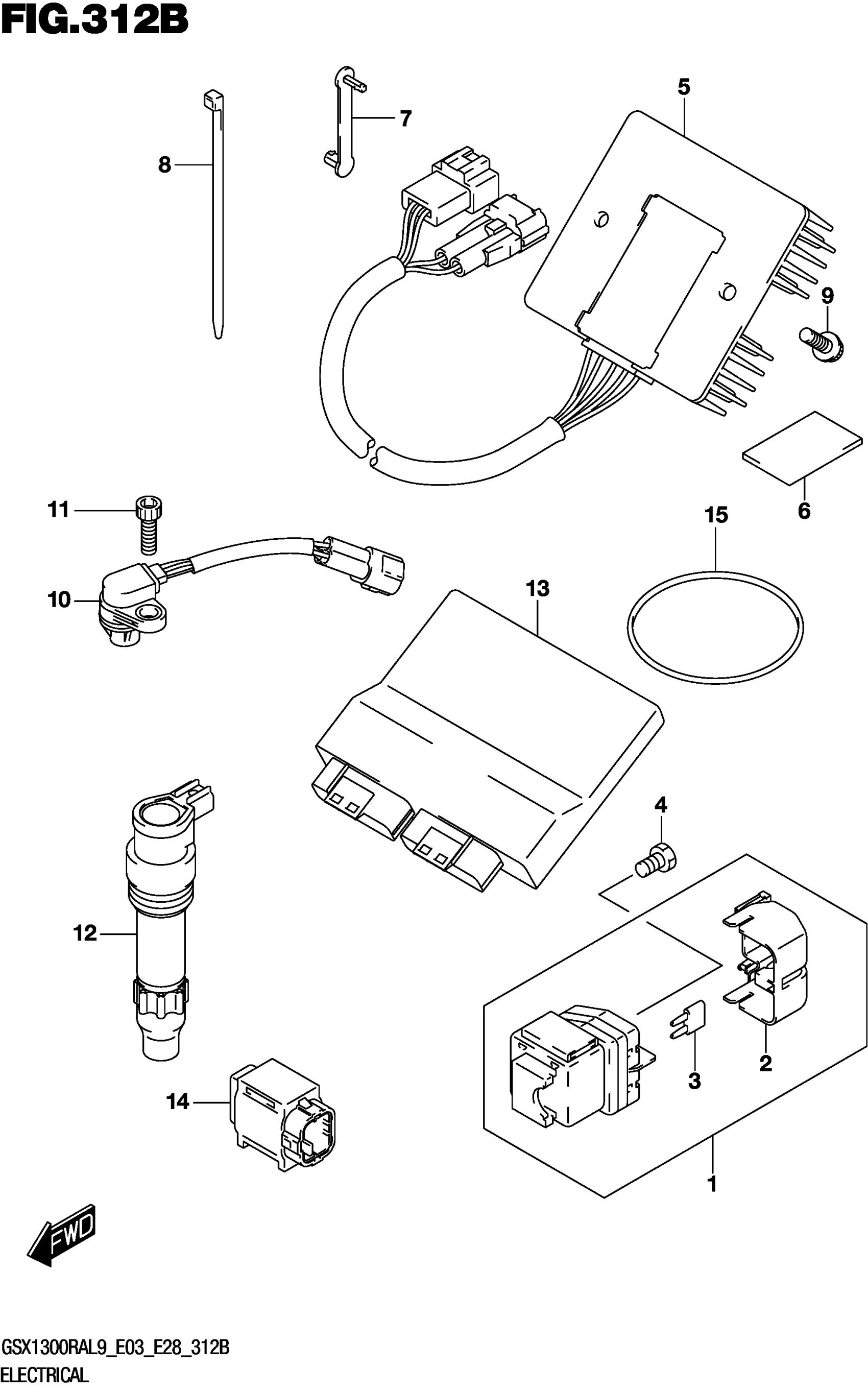

Suzuki GSX1300RAL9 (2019) ELECTRICAL (GSX1300RAL9 E28) Diagram

#

Description

Price

1

RELAY ASSY,STARTING MOTOR

31800-44G00

$101.09

2

.COVER

31861-38G00

$4.88

3

.FUSE (30A)

09481-30501

$2.32

4

SCREW (6X8)

09128-06013

$1.49

5

RECTIFIER ASSY

32800-10G40

$315.55

6

CUSHION (30X50X3)

33652-36000

$2.30

7

CLAMP (L:63)

36651-48E00

$3.25

8

CLAMP (L:145)

09407-14407

$3.57

9

SCREW This part replaces 02162-0616A.

02162-0616B

$2.03

10

SENSOR ASSY,CAM POSITION This part replaces 33220-01H00.

33220-01H01

$108.00

11

BOLT This part replaces 07130-0616A.

07130-0616B

$2.39

12

COIL ASSY,IGNIT This part replaces 33410-24F10.

33410-24F11

$116.13

13

CONTROL UNIT,FI This part replaces 32920-15H80.

32920-15H81

$1,795.90

14

SENSOR ASSY,FUEL CUT

33960-06G10

$89.92

15

BAND, FI (D:3.5,ID:76)

09280-76005

$4.19
