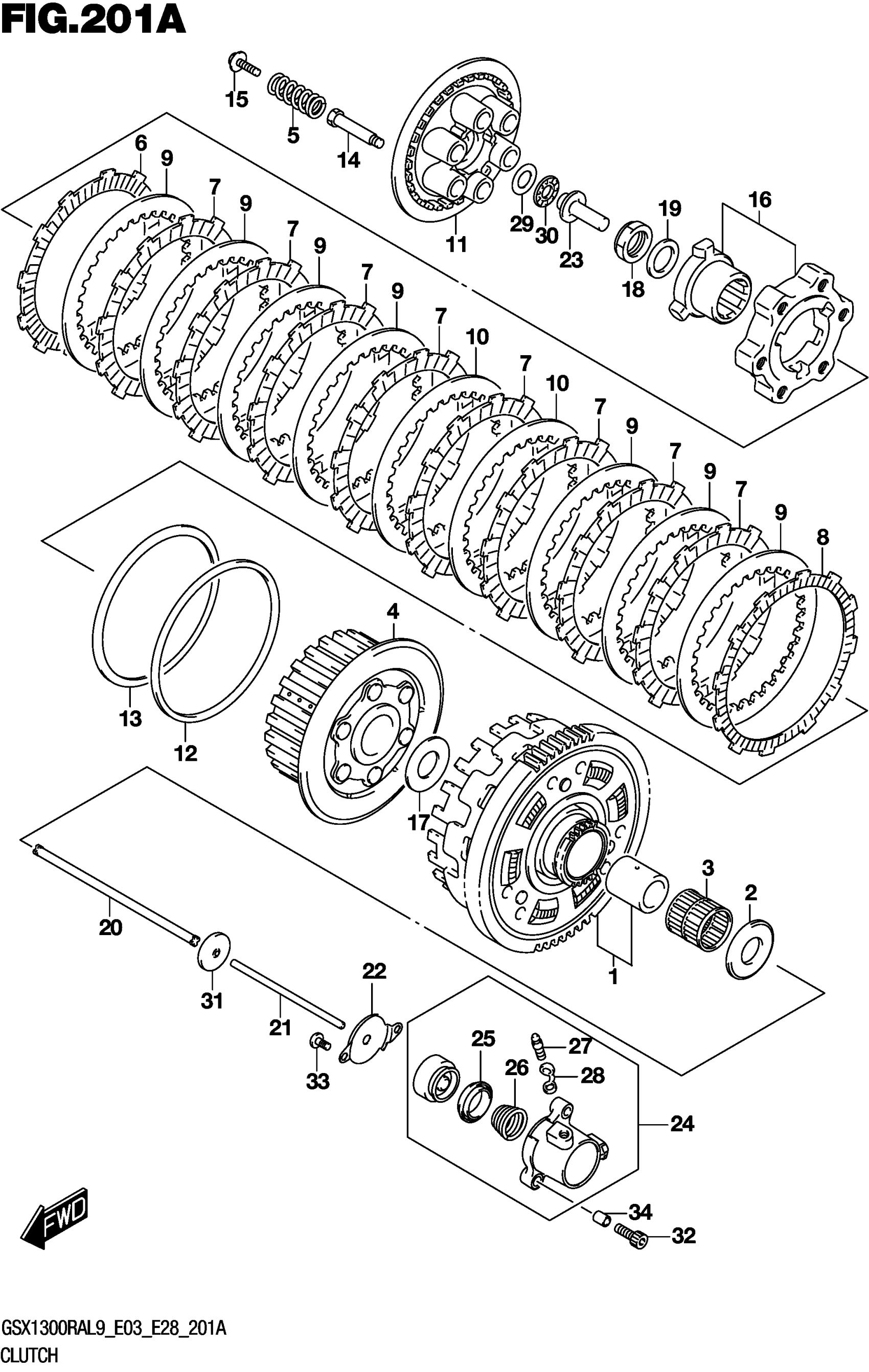

Suzuki GSX1300RAL9 (2019) CLUTCH Diagram

#

Description
Price

1

GEAR ASSY,PRI DRIVEN (NT:83)

21200-24810

$548.43

1

GEAR ASSY,PRI DRIVEN (NT:83)

21200-24810

$548.43

2

WASHER (25X54X2.4)

09160-25073

$14.50

3

BEARING (35X40X39.8)

09263-35013

$35.56

4

HUB, CLUTCH SLEEVE

21410-24F00

$165.58

5

SPRING, CLUTCH

21413-24F30

$6.49

6

PLATE, CLUTCH DRIVE NO.2 (T:3.8)

21441-24F10

$24.03

6

PLATE, CLUTCH DRIVE NO.2 (T:3.8)

21441-24F10

$24.03

7

PLATE, CLUTCH DRIVE NO.1 (T:3.0)

21441-24F30

$28.27

7

PLATE, CLUTCH DRIVE NO.1 (T:3.0)

21441-24F30

$28.27

8

PLATE, CLUTCH DRIVE NO.3 (T:3.8)

21442-24F00

$24.15

8

PLATE, CLUTCH DRIVE NO.3 (T:3.8)

21442-24F00

$24.15

9

.PLATE,CLUTCH DRIVEN NO.1 (T:

21451-24F00

$11.59

9

.PLATE,CLUTCH DRIVEN NO.1 (T:

21451-24F00

$11.59

10

PLATE, CLUTCH DRIVEN NO.2 (T:2.3)

21451-24F10

$11.59

10

PLATE, CLUTCH DRIVEN NO.2 (T:2.3)

21451-24F10

$11.59

11

DISK, CLUTCH PRESSURE

21462-24F00

$52.44

12

.SEAT,WAVE WASHER

21471-24F00

$14.26

13

WASHER,CLUTCH PLATE WAVE

21472-06G00

$18.87

14

BOLT, CLUTCH SPRING SUPPORT

21481-24F32

$9.87

15

BOLT, CLUTCH SPRING

21482-24F30

$3.43

16

CAM SET, CLUTCH

21610-02F12

$239.88

17

.WASHER (25X50X2.5)

09160-25056

$11.61

18

NUT

09159-24010

$13.22

19

WASHER, CLUTCH SLEEVE HUB WAVE

09164-24006

$3.76

20

ROD,CLUTCH (L:195.5)

23110-24F00

$22.23

21

ROD,CLUTCH PUSH,L (L:132.5)

23111-26D00

$15.88

22

COVER, CLUTCH RELEASE CYLINDE

23117-46E00

$6.79

23

PIECE,CLUTCH PUSH

23121-31E00

$23.92

24

CYLINDER, CLUTCH RELEASE

23160-15H11

$122.52

25

.CUP

23163-10F00

$7.22

26

.SPRING

23164-10F00

$5.13

27

.BLEEDER

59121-01A00

$8.73

28

.CAP,BLEEDER

59122-01A00

$4.34

29

WASHER (15.5X28X1)

09160-15045

$3.89

30

BEARING (15X28X2)

09263-15003

$8.29

31

SEAL, CLUTCH PUSH ROD OIL

09285-06015

$7.98

32

BOLT (6X25)

07130-0625A

$2.62

33

SCREW

02112-0610A

$1.64

34

PIN

04211-09129

$1.65
