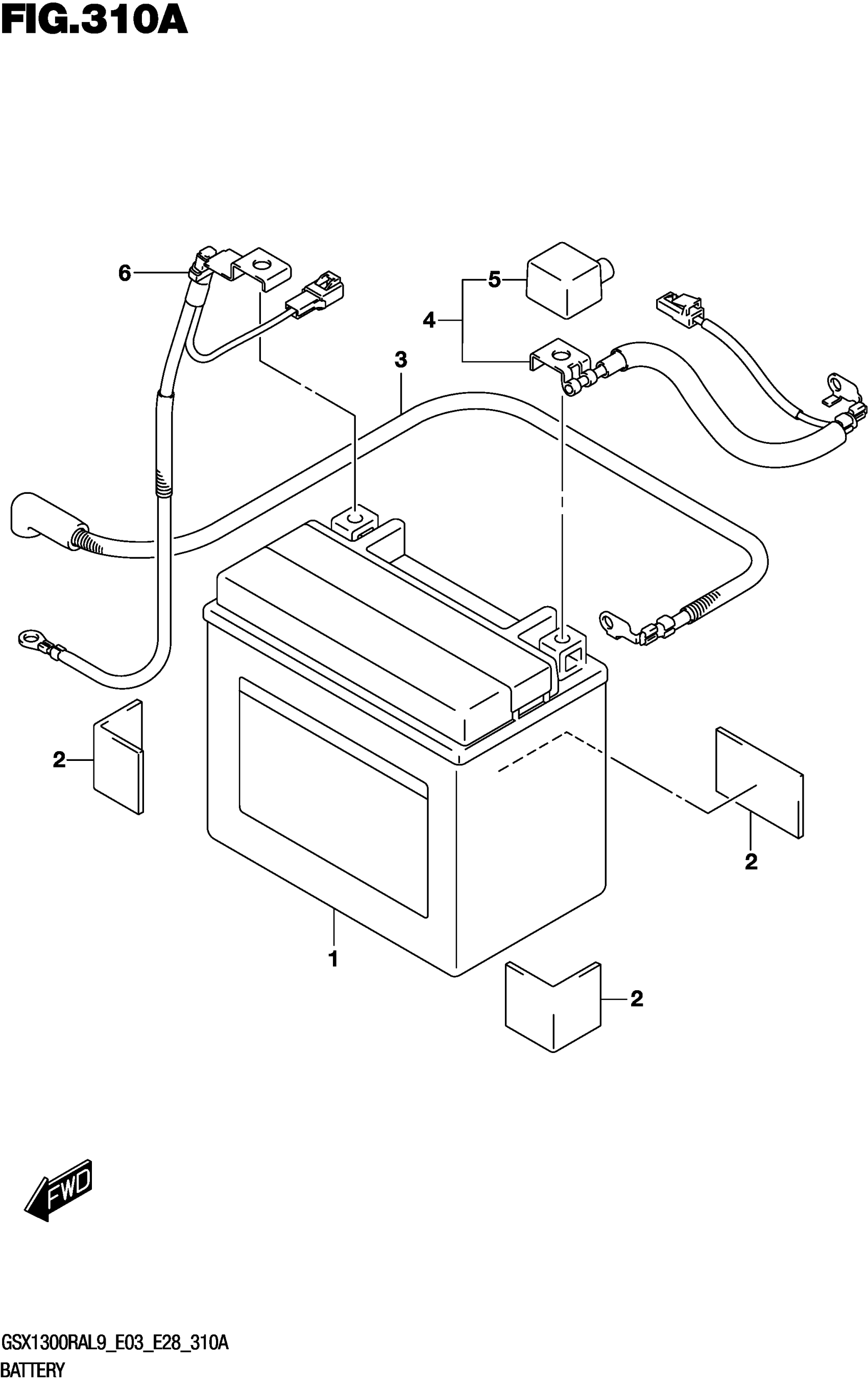

Suzuki GSX1300RAL9 (2019) BATTERY Diagram

#

Description

Price

1

BATTERY ASSY (FT12A-BS,12V10AH) This part replaces 33630-17E00.

33610-14G11

$120.22

1

BATTERY ASSY (FT12A-BS,12V10AH) This part replaces 33630-17E00.

33610-14G11

$120.22

2

CUSHION (30X50X3)

33652-36000

$2.30

3

WIRE,STARTER MO This part replaces 33810-15H00.

33810-15H01

$30.28

4

WIRE,BATTERY PL This part replaces 33820-15H10.

33820-15H11

$23.10

5

.CAP,BATTERY PLUS

33624-16G00

$5.78

6

WIRE,BATTERY MI This part replaces 33860-15H00.

33860-15H01

$27.17
