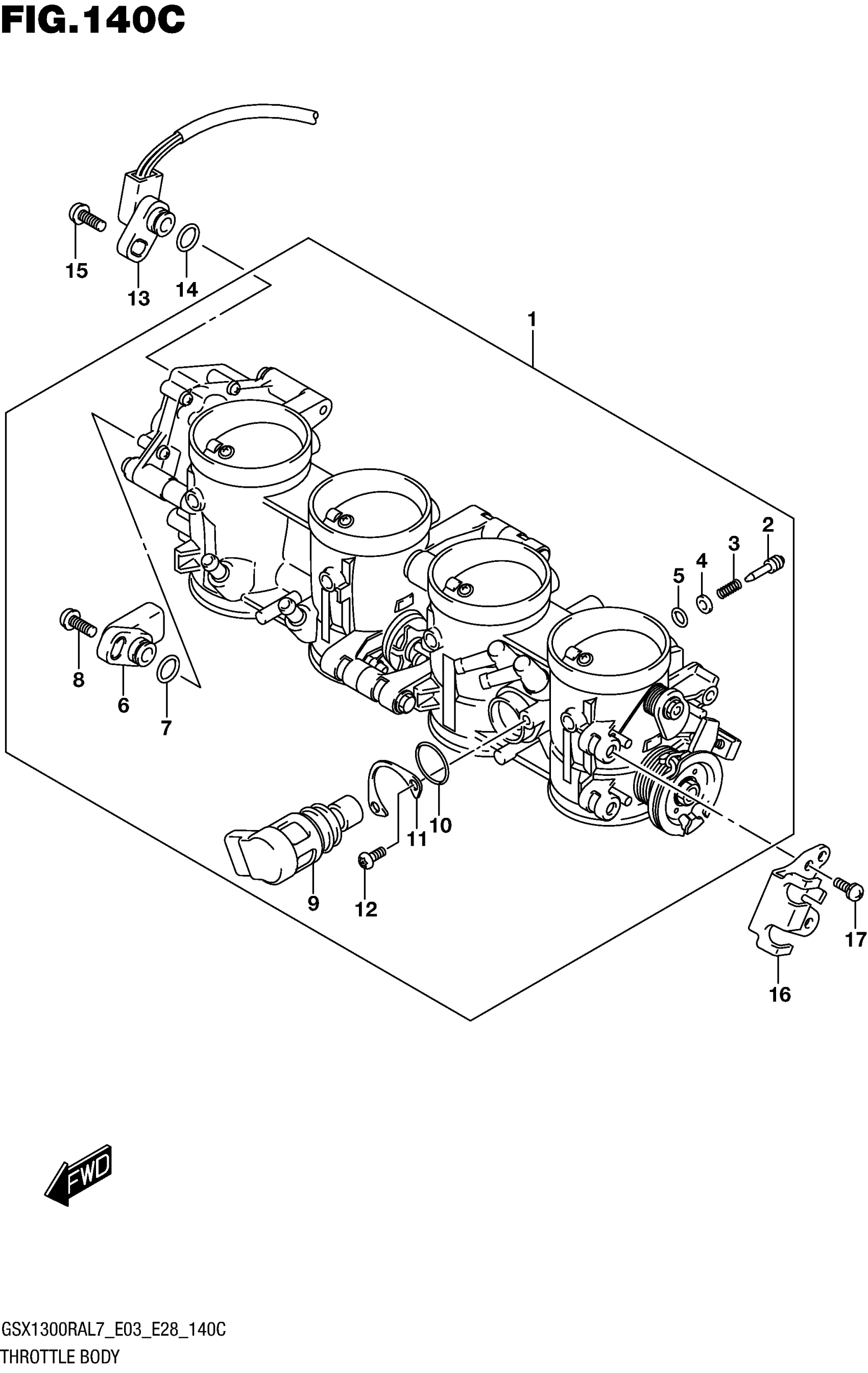

Suzuki GSX1300RAL7 (2017) THROTTLE BODY (GSX1300RAL7 E33) Diagram

#

Description
Price

1

THROTTLE BODY

13406-15H30

$1,913.80

2

.SCREW, AIR ADJUST

13269-18G00

$11.83

3

.SPRING, AIR SCREW

13271-43E00

Unavailable

4

.WASHER

13291-26E00

$2.93

5

.O RING

13295-26E00

$4.34

6

.SENSOR ASSY, THROTTLE MAIN

13580-18G00

$205.80

7

.O RING

13575-40F00

$4.09

8

.SCREW

13605-40F00

$3.71

9

.VALVE ASSY, ISC

18117-15H12

$362.80

10

.O RING

18119-05H00

$3.95

11

.PLATE, ISC VALVE

13428-15H00

Unavailable

12

.SCREW

13605-15H00

$7.12

13

SENSOR ASSY, THROTTLE SUB

13580-40F31

$212.03

14

O RING

13575-40F00

$4.09

15

SCREW

13605-40F00

$3.71

16

PLATE, STAY

13565-15H00

Unavailable

17

SCREW

13601-21H00

Unavailable
