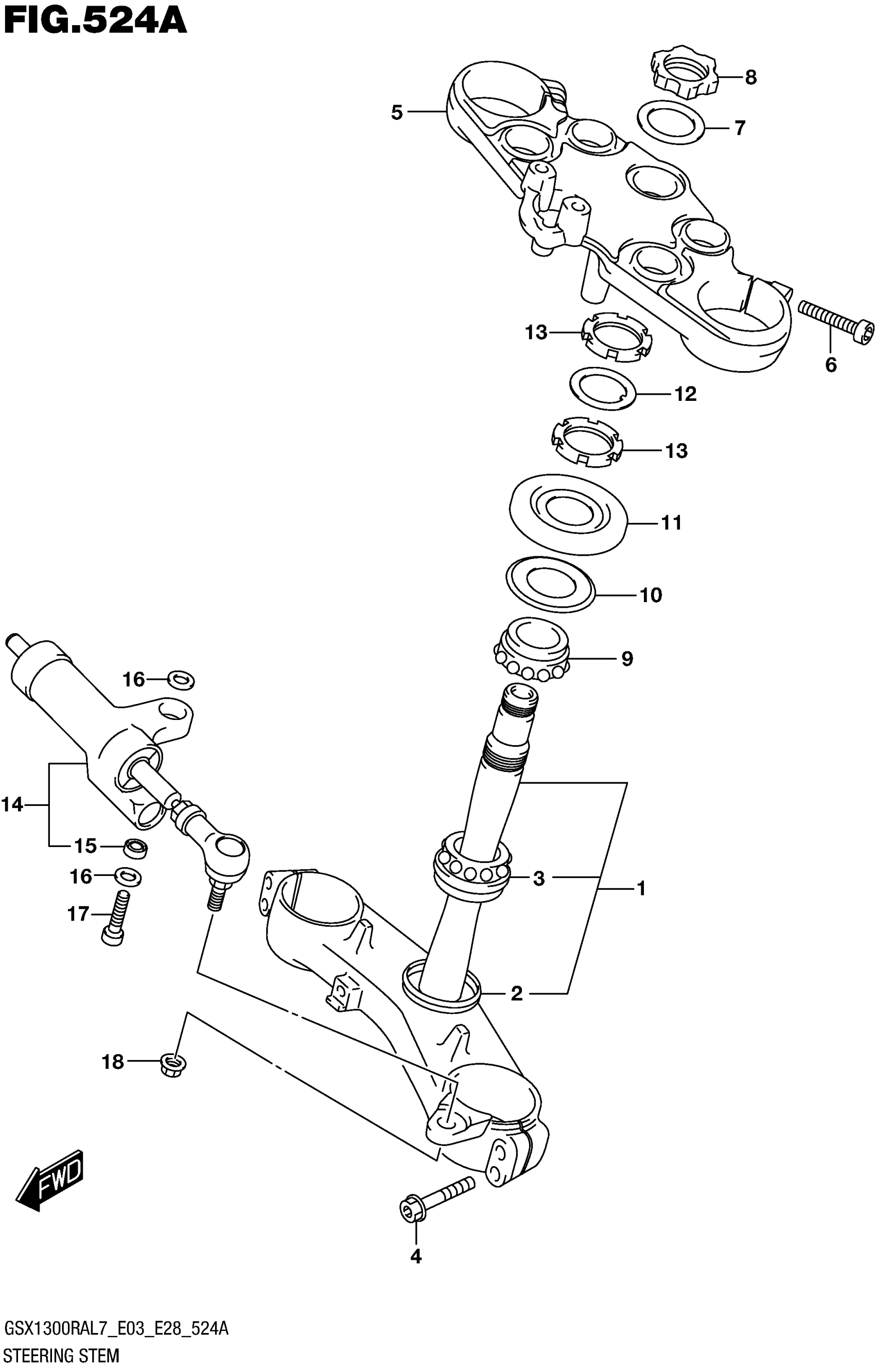

Suzuki GSX1300RAL7 (2017) STEERING STEM Diagram

#

Description
Price

1

BRACKET,FR FORK UNDER

51410-24F50

$1,050.42

2

.SEAL, LOWER

51644-12C00

$9.44

3

.BEARING (30X55X17)

09267-30010

$48.11

4

BOLT,AXLE STOPPER (8X40)

51166-01D80

Unavailable

5

BRACKET,FR FORK UPR

51311-24F50

$437.57

6

BOLT

51328-24F50

$9.17

7

WASHER

51356-24F50

$6.52

8

NUT

51353-24F00

$43.68

9

BEARING (30X55X17)

09267-30010

$48.11

10

SEAL, DUST UPPER (30.1X56X4)

51644-12C00

$9.44

11

COVER, STEERING UPPER

51643-41G00

$8.71

12

WASHER, STEM

51641-33E00

$6.20

13

NUT, STEM

51631-33E00

$23.64

14

DAMPER ASSY,STEERING

51750-15H00

$778.83

15

.BEARING (8X17.5X11)

09269-08003

$51.13

16

SEAL, DUST

64339-14101

$7.95

17

BOLT

07130-0830A

$1.74

18

NUT

08319-3108A

$2.32
