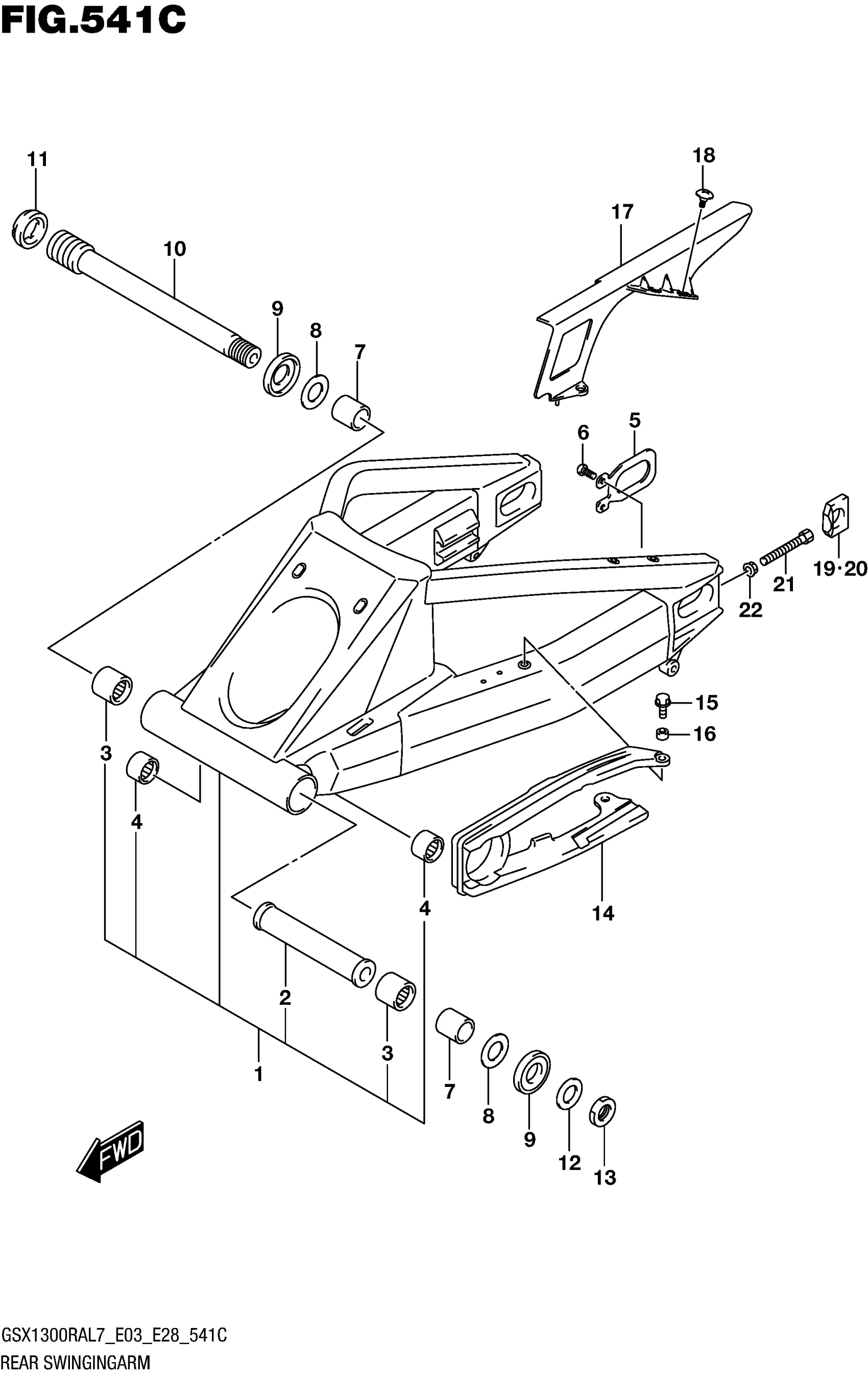

Suzuki GSX1300RAL7 (2017) REAR SWINGINGARM (GSX1300RAL7 E33) Diagram

#

Description
Price

1

SWINGINGARM ASSY,REAR (BLACK)

61000-24F50-YAP

$2,949.55

2

.SPACER, CENTER

61281-33E20

$56.48

3

.BEARING (30X40X25)

09263-30040

$38.65

4

.BEARING (17X24X25) This part replaces 09263-17037.

09263-17053

$21.66

5

PLATE, BRACKET

61124-33E00

$6.85

6

SCREW (6X16)

09125-06073

$1.84

7

SPACER,RR SWGARM PIVOT BEARIN

61251-17E20

$13.12

8

WASHER

08211-25481

$5.64

9

SEAL,DUST This part replaces 61262-17E10.

61262-17E11

$9.05

10

SHAFT,RR SWINGINGARM PIVOT

61211-16G00

$181.83

11

NUT, PIVOT SHAFT

61214-40C31

$56.90

12

WASHER (25.2X42X3.2)

09160-25070

$4.77

13

NUT

09159-25003

$31.85

14

BUFFER,CHAIN This part replaces 61273-15H00.

61273-15H01

$63.90

15

BOLT (6X20)

09116-06152

$2.36

16

SPACER (6.5X9X5)

09180-06306

$2.03

17

CASE,CHAIN

61311-15H00

$66.00

18

SCREW (6X16)

09139-06168

$2.62

19

ADJUSTER, CHAIN LH

61446-40F00

$47.20

20

ADJUSTER, CHAIN RH

61445-40F00

$47.20

21

BOLT (8X50)

09100-08287

$3.10

22

NUT

08316-1008A

$2.45
