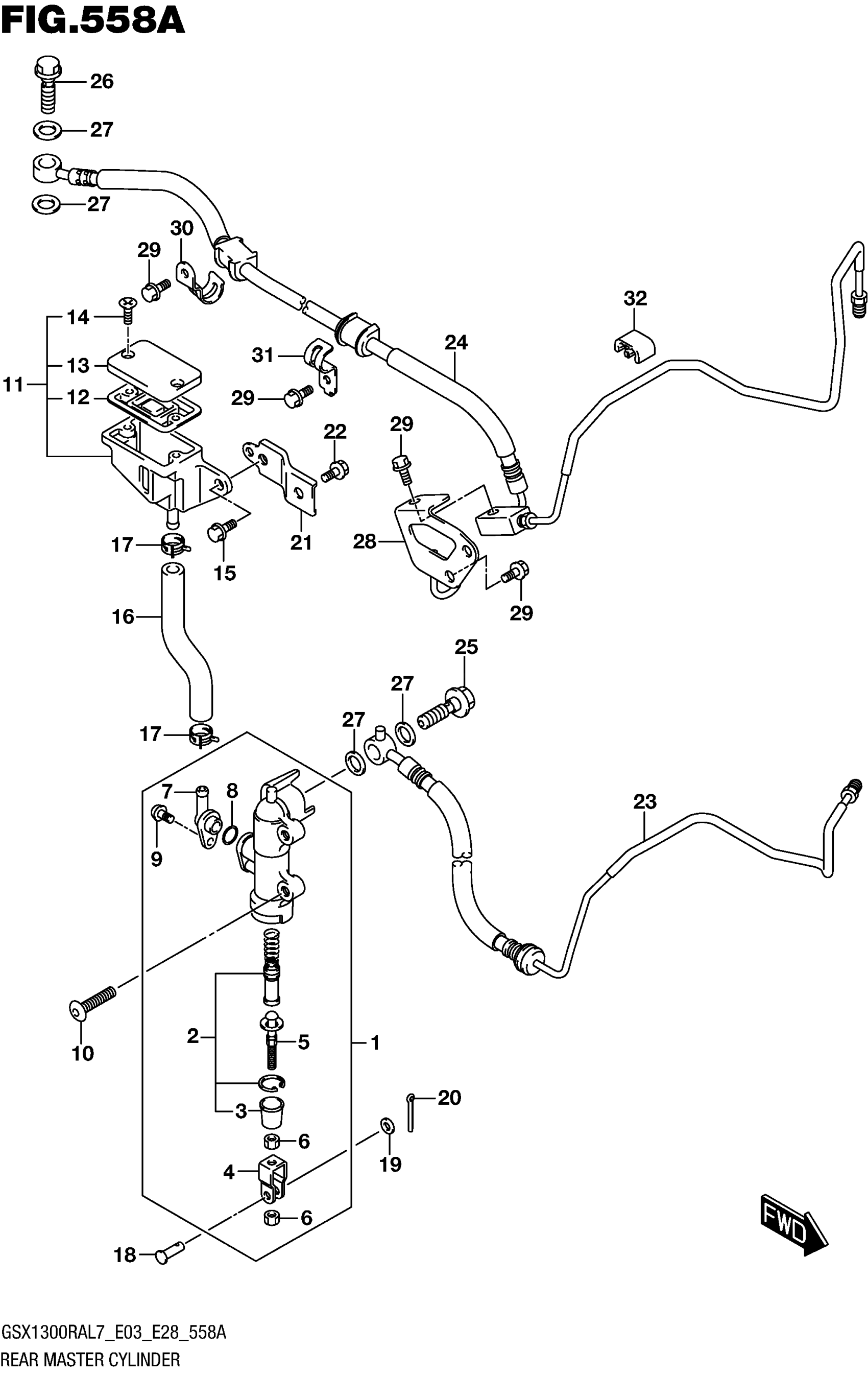

Suzuki GSX1300RAL7 (2017) REAR MASTER CYLINDER (GSX1300RAL7 E03) Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER

69600-15H00

$312.98

2

.PISTON/CUP SET This part replaces 69600-04820.

69600-04821

$32.27

3

.BOOT

69691-00A00

$5.30

4

.YOKE

69692-27A30

$13.81

5

.ROD, PUSH

69670-27A30

$26.23

6

.NUT

69693-05A00

$1.96

7

.CONNECTOR

69672-05A00

$5.56

8

.O RING

69686-34200

$2.93

9

.SCREW

02112-7412A

$2.12

10

SCREW (6X20)

09139-06028

$3.70

11

TANK ASSY,RR RESERVOIR

69740-01D02

$70.49

12

.DIAPHRAGM

59667-04700

$9.78

13

.CAP

59669-05D00

$16.76

14

.SCREW

69689-04A00

$1.78

15

BOLT

01547-0612A

$2.03

16

HOSE, RR RESERVOIR TANK

69731-24F00

$18.88

17

CLIP

09401-13417

$2.26

18

PIN (6X18.2)

09200-06068

$4.11

19

WASHER

08322-0106A

$1.84

20

PIN

04111-2015A

$1.49

21

BRACKET, RESERVOIR TANK

69750-15H00

$11.78

22

BOLT

01550-0612A

$1.97

23

HOSE ASSY,RR BR This part replaces 69200-15H00.

69200-15H01

$76.72

24

HOSE ASSY,RR BR This part replaces 69400-15H00.

69400-15H01

$89.70

25

UNION

09360-10061

$6.43

26

UNION

09360-10062

$6.43

27

WASHER (10X15X1.5)

09161-10009

$1.84

28

CLAMP,RR BRAKE HOSE

69260-15H00

Unavailable

29

BOLT

01547-0616A

$2.03

30

CLAMP, REAR BRAKE HOSE

69268-15H00

$12.65

31

CLAMP,RR BRAKE HOSE NO.1

69275-15H00

$5.07

32

CLAMP

09403-06324

Unavailable
