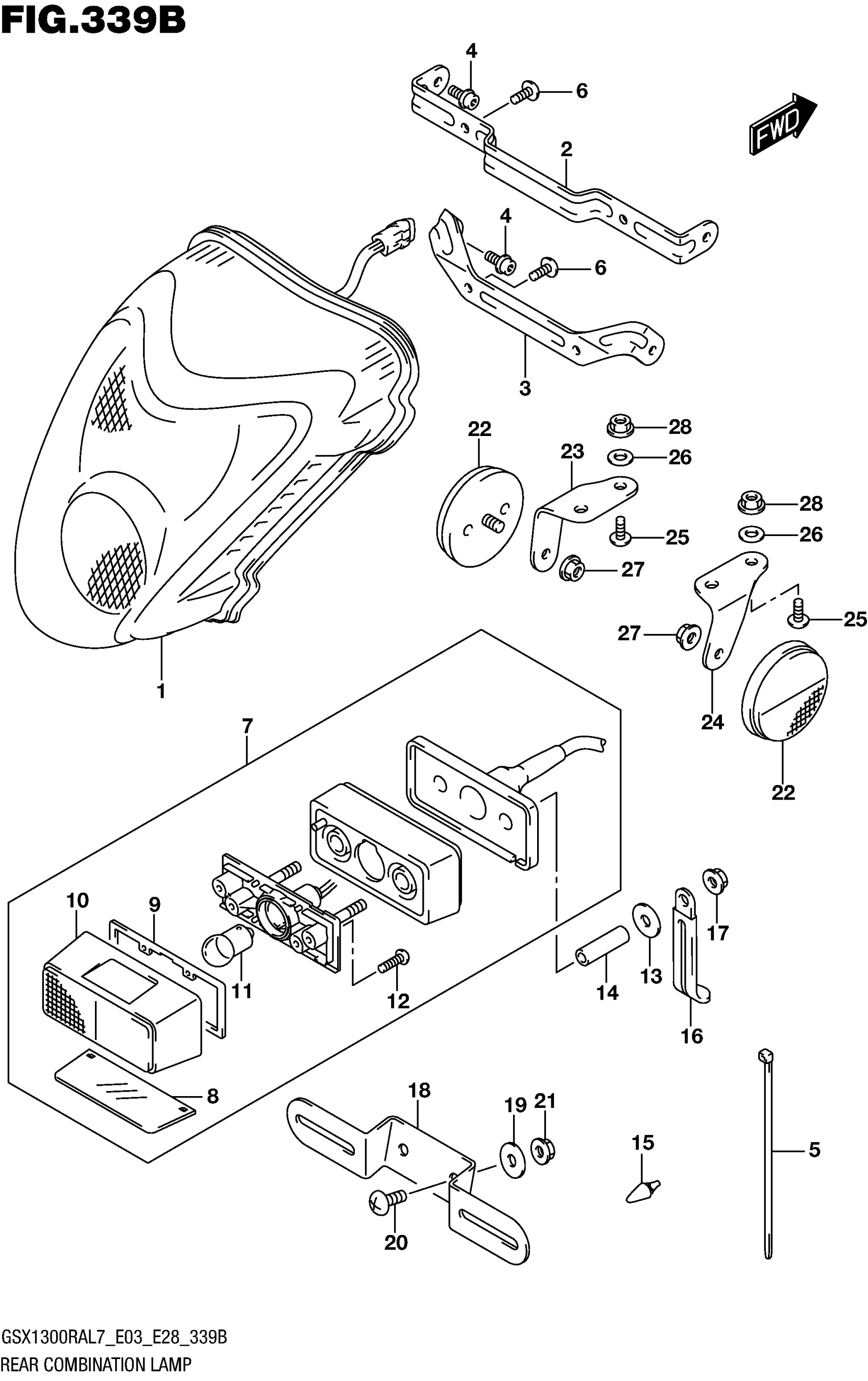

Suzuki GSX1300RAL7 (2017) REAR COMBINATION LAMP (GSX1300RAL7 E28) Diagram

#

Description
Price

1

LAMP ASSY, RR COMBINATION

35710-15H30

$402.85

2

BRACKET, RR COMBINATION

35726-15H00

$10.89

3

BRACKET, RR COMBINATION

35726-15H10

$10.89

4

BOLT (5X12)

09106-05031

$2.88

5

CLAMP (L:145)

09407-14407

$3.57

6

SCREW

03541-0516A

$1.49

7

LAMP ASSY,LICENSE

35910-41G32

$88.47

8

.LENS, LICENSE

35912-41G01

$13.28

9

.GASKET

35913-41G00

$14.23

10

.COVER, LICENSE LAMP

35917-41G00

$35.32

11

BULB (12V5W) This part replaces 09471-12140.

09471-12058

$2.33

12

.SCREW

03211-0416A

$1.49

13

WASHER (6.5X20X1.2)

09160-06077

$1.91

14

SPACER (6.5X9X34)

09180-06356

$4.68

15

CUSHION This part replaces 09321-06028.

09321-06038

$1.88

16

CLAMP (L:45)

09404-06429

$1.83

17

NUT

08316-1006A

$2.19

18

BRACKET, LICENSE PLATE

35927-15H00

$15.45

19

WASHER (6.5X20X1.2)

09160-06077

$1.91

20

SCREW

02142-0616A

$1.49

21

NUT

08316-1006A

$2.19

22

REFLECTOR ASSY, RR SIDE

35970-14A20

$15.10

23

BRACKET, REAR SIDE REAR, RH

35975-15H00

$9.33

24

BRACKET, REAR SIDE REAR, LH

35976-15H00

$9.33

25

SCREW

02142-0612A

$1.49

26

WASHER (6.5X14X2.0)

09160-06126

$1.91

27

NUT

08316-1005A

$2.19

28

NUT

08316-1006A

$2.19
