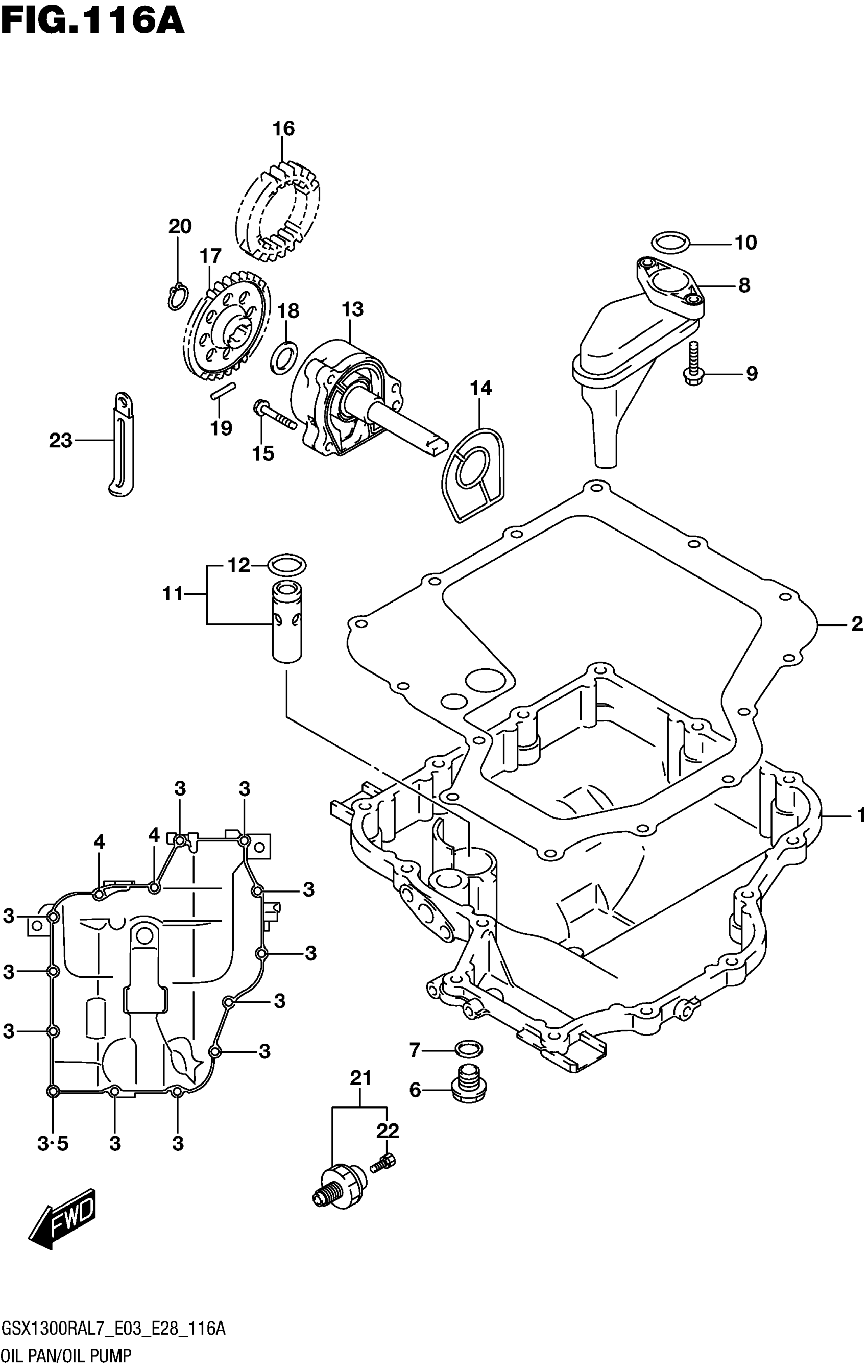

Suzuki GSX1300RAL7 (2017) OIL PAN/OIL PUMP Diagram

#

Description
Price

1

PAN,OIL

11511-24F10

$232.29

2

GASKET, OIL PAN

11489-24F10

$16.79

3

BOLT

01547-0630A

$2.38

4

BOLT

01547-0640A

$2.38

5

GASKET (5.8X13X1.2)

09168-06023

$2.09

6

PLUG (14X20) | OIL DRAIN

09247-14036

$5.74

7

GASKET (13.8X18.8X4.8)

09168-14002

$2.83

8

STRAINER,ENG OIL

16520-24F01

$29.84

9

BOLT

01550-0620A

$2.01

10

O RING (D:2.62,ID:20.3)

09280-19008

$5.11

11

VALVE ASSY, OIL RELIEF

16440-24F00

$47.86

12

.O RING (D:1.9,ID:13)

09280-13004

$2.25

13

PUMP ASSY,ENGINE OIL

16400-24F01

$180.21

14

O RING,OIL PUMP

16491-24F00

$6.62

15

BOLT

01547-0630A

$2.38

16

GEAR,OIL PUMP DRIVE (NT:34)

16321-33E10

$76.88

17

GEAR,OIL PUMP DRIVEN (NT:37)

16331-33E00

$84.25

18

SHIM (12X20X0.5)

09181-12158

$2.31

19

PIN (5X18)

09261-05006

$1.52

20

CIRCLIP

08331-3112A

$1.82

21

SWITCH ASSY,OIL PRESSURE This part replaces 37820-33D10.

37820-33D11

$27.58

22

.BOLT

37822-33D00

$4.92

23

CLAMP (L:45)

09404-06429

$1.88
