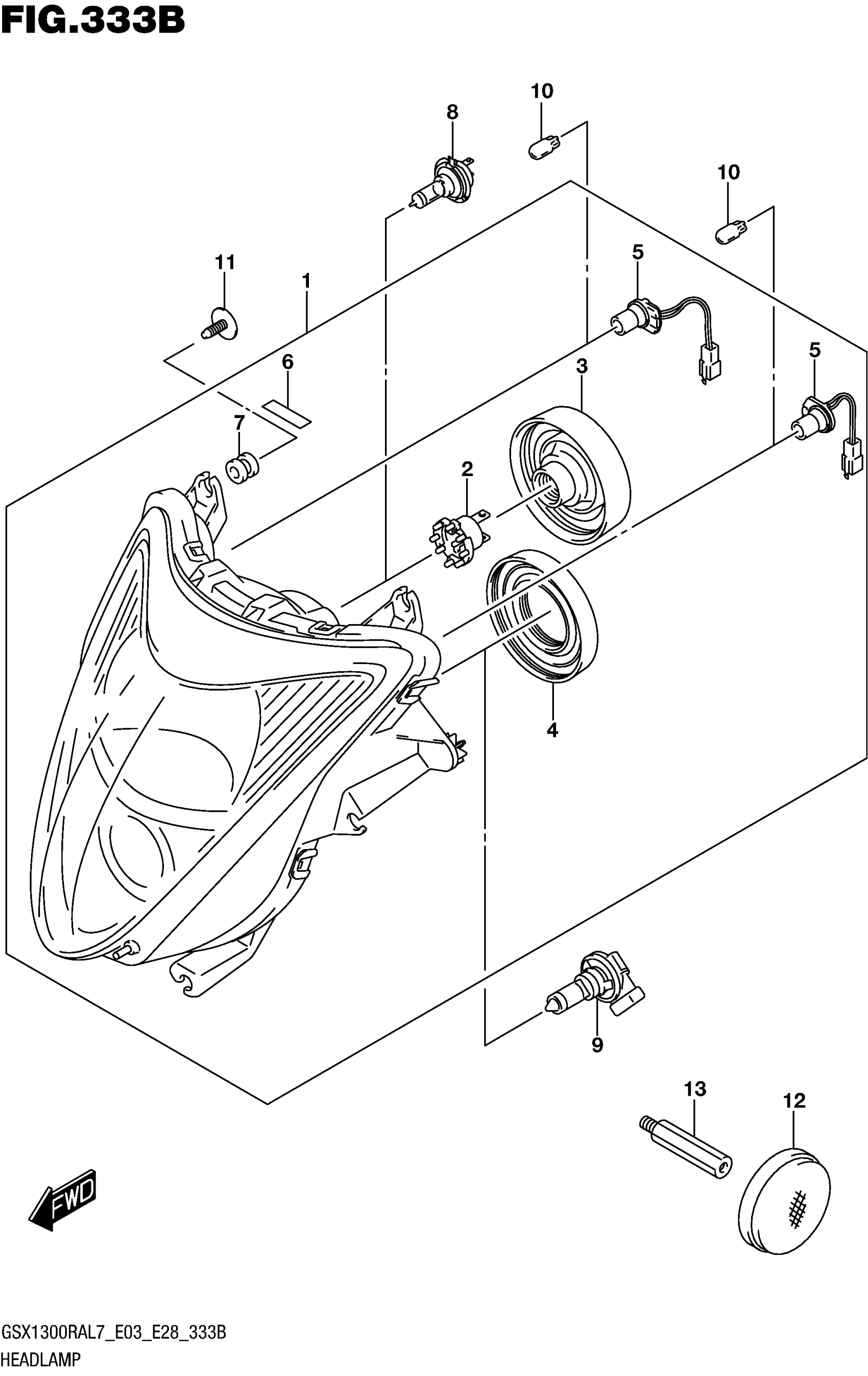

Suzuki GSX1300RAL7 (2017) HEADLAMP (GSX1300RAL7 E28) Diagram

HEADLAMP ASSY This part replaces 35100-15H31-999.

35100-15H32-999

$447.53

.ADAPTOR ASSY

35175-24F00

$18.50

.SOCKET, COVER

35173-14G00

$17.45

.SOCKET, COVER

35173-15H00

$27.20

.CORD ASSY

36118-15H00

$17.88

TAPE,FR TURNSIGNAL (5X20X0.4)

94443-21H00

$3.95

.CUSHION (9X18X14) This part replaces 09320-09039.

09320-09059

$3.26

BULB (12V55W H7)

09471-12188

$22.60

BULB (12V65W)

09471-12222

$83.53

.BULB (12V5W)

09471-12216

$5.36

SCREW (5X15)

09136-05062

$2.19

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

$15.23

BOLT

09119-06104

$14.43
