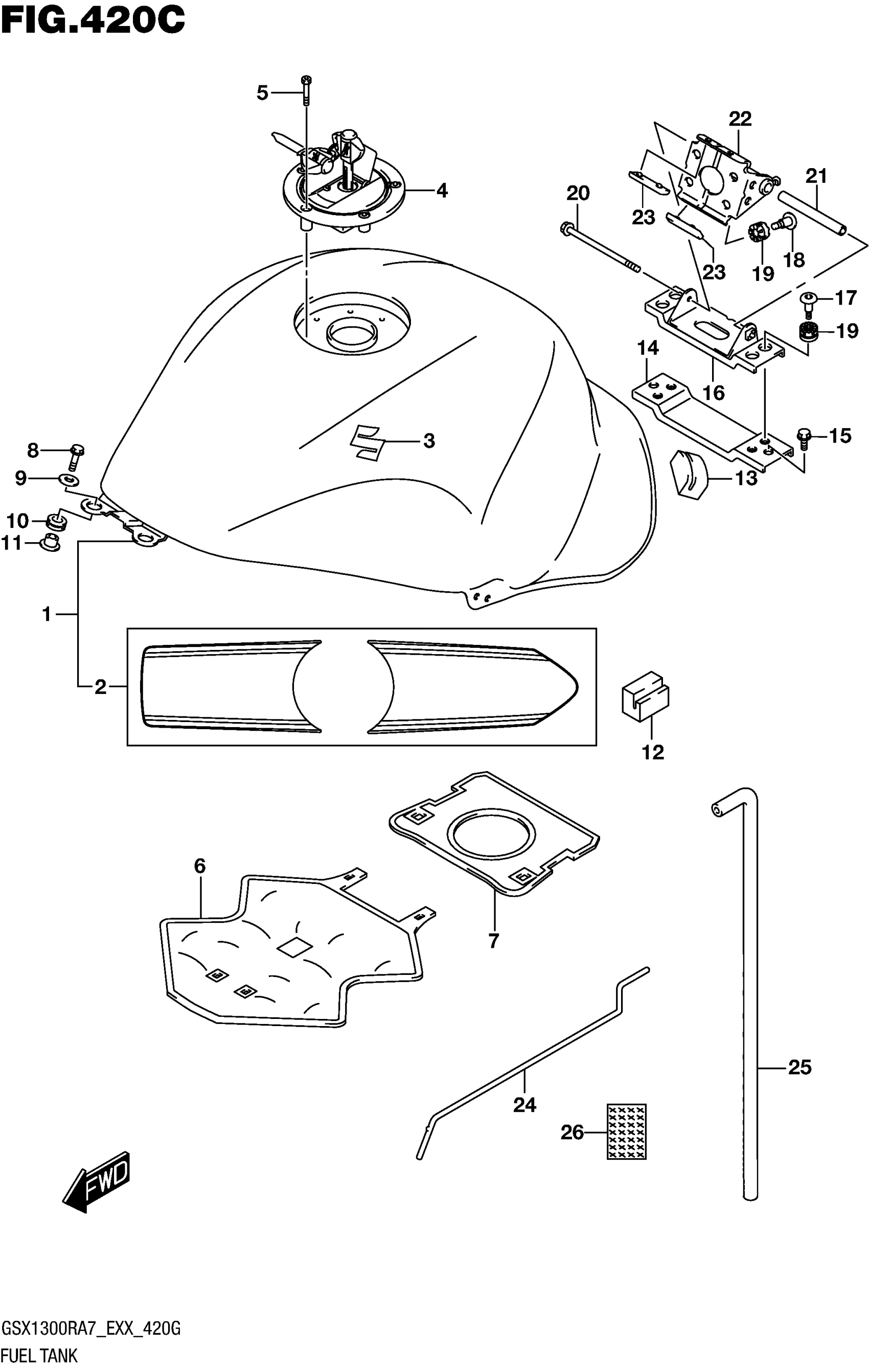

Suzuki GSX1300RAL7 (2017) FUEL TANK (GSX1300RAL7 E33) Diagram

#

Description
Price

1-1

TANK ASSY, FUEL (BLACK) | FOR YVB

44100-15HL0-YVB

Unavailable

1-2

TANK ASSY, FUEL (WHITE) | FOR AGT

44100-15HL0-YWW

Unavailable

1-3

TANK ASSY,FUEL( | FOR BBD This part replaces 44100-15HL0-YKY.

44100-15HL1-YKY

$1,415.30

2-1

.TAPE SET (BLACK/GRAY) | FOR YVB

68110-15H50-BF2

$71.98

2-2

.TAPE SET (BLACK/WHITE) | FOR YWW

68110-15H50-AGT

$71.98

2-3

.TAPE SET (BLUE/WHITE) | FOR YKY

68110-15H50-AJP

$71.98

3

EMBLEM, "S"

68111-47HA0

$40.44

4

CAP SET,FUEL TA This part replaces 44200-16870.

44200-16872

$155.42

5

BOLT (5X20)

09106-05017

$2.83

6

SHIELD, FUEL TANK HEAT NO.1

44191-15H00

$176.77

7

SHIELD, FUEL TANK HEAT NO.2

44191-15H10

$74.08

8

SCREW (6X30)

09139-06204

$5.43

9

WASHER This part replaces 09160-06012.

09160-06054

$1.62

10

CUSHION,FUEL TANK FRONT This part replaces 44511-16G00.

44511-16G01

$4.11

11

SPACER

44512-16G00

$7.44

12

CUSHION,FUEL TA This part replaces 44541-24F00.

44541-24F01

$5.87

13

CUSHION,FUEL TA This part replaces 44543-15H00.

44543-15H01

$5.12

14

BRACKET, FUEL TANK REAR NO.3

44555-15H00

Unavailable

15

BOLT (8X16)

01550-0816A

$2.32

16

BRACKET, FUEL TANK REAR NO.2

44550-15H01

Unavailable

17

SCREW (6X22)

09139-06191

$4.03

18

SCREW (6X22)

09139-06191

$4.03

19

CUSHION

09320-08071

$3.25

20

BOLT

07120-0695A

$2.58

21

SPACER, FUEL TANK REAR

44561-18G00

$16.96

22

BRACKET, FUEL TANK REAR NO.1

44530-15H01

Unavailable

23

CUSHION, BRACKET

45149-44G00

Unavailable

24

STAY | OPT

44574-35F00

$15.16

25

HOSE, DRAIN This part replaces 44423-15H00.

44423-15H01

$22.32

26

SHIELD, DRAIN HOSE HEAT

44427-15H10

Unavailable

27

COLOR :

SPECIAL NOTE

Unavailable

27

AGT=YVB(BLACK),YWW(WHITE)

SPECIAL NOTE

Unavailable

27

BBD=YKY(BLUE),YVB(BLACK)

SPECIAL NOTE

Unavailable
