2017 Suzuki GSX1300RAL7 Front Fork Damper Diagram

← All diagrams

Find the part on the Front Fork Damper diagram for your 2017 Suzuki GSX1300RAL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

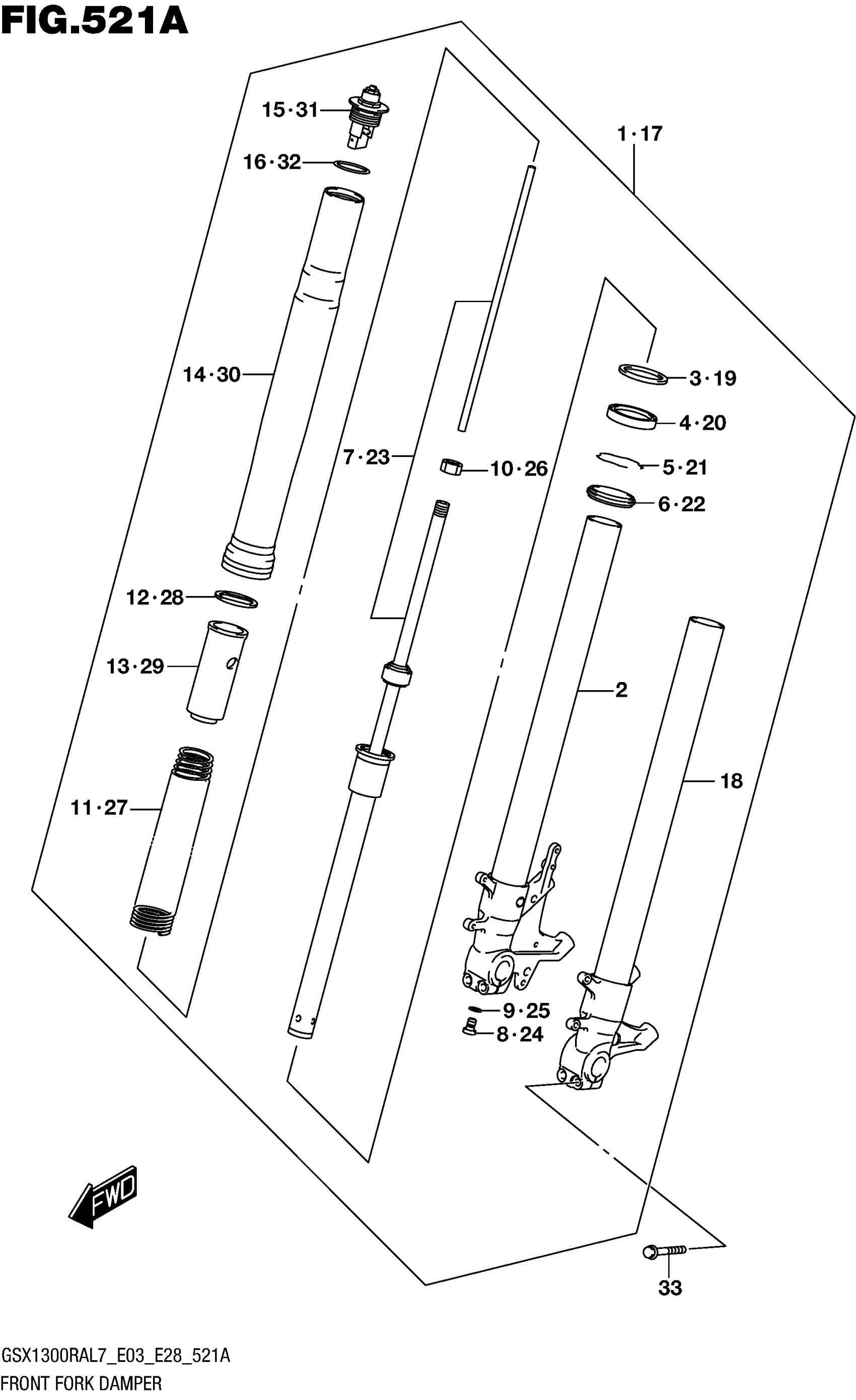

2017 Suzuki GSX1300RAL7 Front Fork Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER ASSY,FRO This part replaces 51103-24F71.

51103-24F72

1
Out of stock

2

TUBE,INNER,RH This part replaces 51110-24F71.

51110-24F72

1
Out of stock

3

.WASHER

51158-14200

1
Out of stock

4

.OIL SEAL

51153-41G00

1
Out of stock

5

.RING, STOPPER

51156-14200

1
Out of stock

6

.SEAL, DUST

51173-41G00

1
Out of stock

7

.CYLINDER

51146-24F50

1
Out of stock

8

.BOLT

51147-24F50

1
Out of stock

9

.GASKET

51148-41310

1
Out of stock

10

.NUT, ROD

51352-13A60

1
Out of stock

11

.SPRING, FRONT

51171-24F50

1
Out of stock

12

.GUIDE, SPRING

51158-40F30

1
Out of stock

13

.SPACER, SPRING

51176-40F30

1
Out of stock

14

.TUBE, OUTER

51130-24F50

1
Out of stock

15

.CAP, FRONT FORK

51351-24F50

1
Out of stock

16

..O RING

62278-14100

1
Out of stock

17

DAMPER ASSY,FR This part replaces 51104-24F70.

51104-24F71

1
Out of stock

18

TUBE,INNER,LH This part replaces 51120-24F70.

51120-24F71

1
Out of stock

19

.WASHER

51158-14200

1
Out of stock

20

.OIL SEAL

51153-41G00

1
Out of stock

21

.RING, STOPPER

51156-14200

1
Out of stock

22

.SEAL, DUST

51173-41G00

1
Out of stock

23

.CYLINDER

51146-24F50

1
Out of stock

24

.BOLT

51147-24F50

1
Out of stock

25

.GASKET

51148-41310

1
Out of stock

26

.NUT, ROD

51352-13A60

1
Out of stock

27

.SPRING, FRONT

51171-24F50

1
Out of stock

28

.GUIDE, SPRING

51158-40F30

1
Out of stock

29

.SPACER, SPRING

51176-40F30

1
Out of stock

30

.TUBE, OUTER

51130-24F50

1
Out of stock

31

.CAP, FRONT FORK

51351-24F50

1
Out of stock

32

..O RING

62278-14100

1
Out of stock

33

BOLT

51166-24F60

4
Out of stock
