Description

Price

1

WHEEL, FRONT (17M/CXMT3.50)

54111-15H11-019

$887.77

1

(BLACK

54111-15H11-019

$887.77

2

SPACER, HUB BEARING

54731-33E20

$55.32

3

BEARING (25X52X15) This part replaces 09262-25167.

09262-25191

$22.56

4

.SEAL,OIL (32X52X7)

09285-32004

$7.42

5

RING, SPEED SENSOR FR (50T)

54162-27G00

$158.17

6

BOLT

07130-0512A

$2.25

7

AXLE, FRONT

54711-15H00

$183.30

8

BOLT, FRONT AXLE

54712-41G10

$15.49

9

SPACER, FRONT AXLE, RH

54751-41G10

$18.80

10

DISC, FRONT BRAKE

59210-15H10

$312.58

11

BOLT (8X21)

09106-08160

$3.32

12

TIRE, FRONT | BRIDGESTONE

55110-24F70

$415.68

12

120/70ZR17 M/C (58W) BT015F

55110-24F70

$415.68

13

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.46

14-1

BALANCER, WHEEL NO.1 (10G) | 10G

55411-22H00

$9.70

14-2

BALANCER, WHEEL NO.2 (20G) | 20G

55412-22H00

$11.37

14-3

BALANCER, WHEEL NO.3 (30G) | 30G

55413-22H00

$12.93

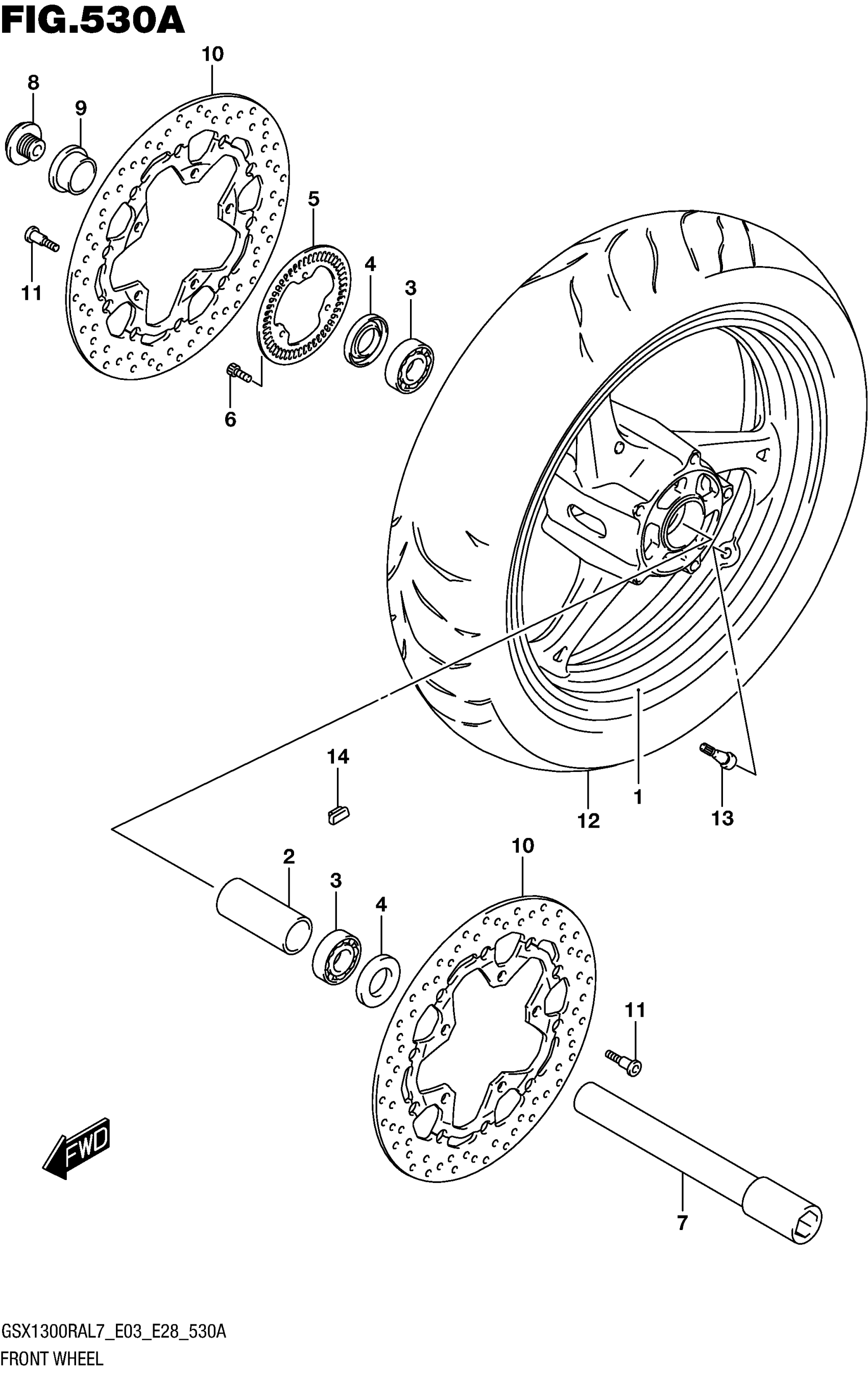

Suzuki GSX1300RAL7 (2017) FRONT WHEEL Diagram
