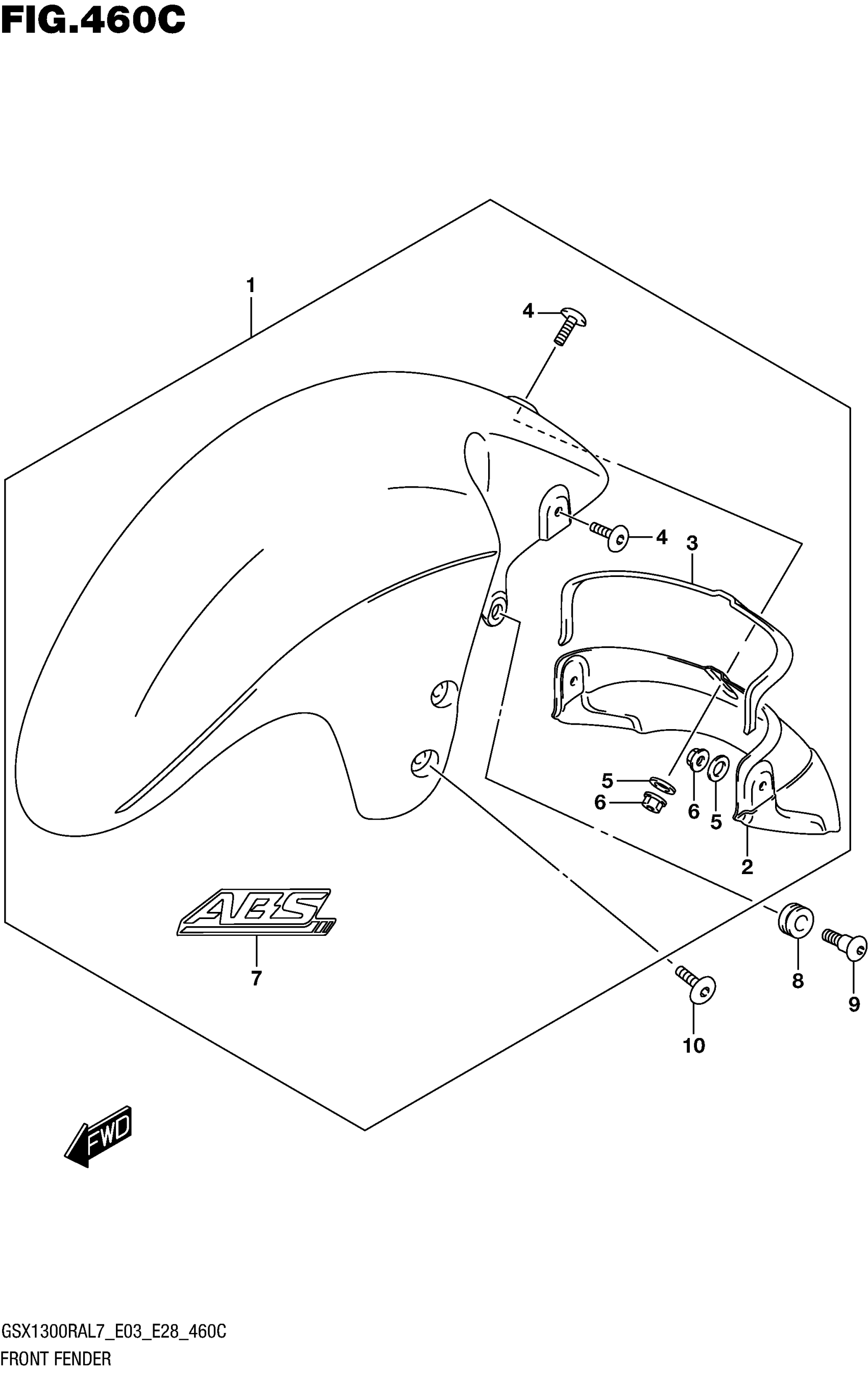

Suzuki GSX1300RAL7 (2017) FRONT FENDER (GSX1300RAL7 E33) Diagram

Description

Price

1-1

FENDER ASSY,FRO | FOR YVB This part replaces 53100-15H10-YVB.

53100-15H11-YVB

$294.91

1-2

FENDER ASSY,FRO | FOR AGT This part replaces 53100-15H10-YWW.

53100-15H11-YWW

$294.91

1-3

FENDER ASSY,FRO | FOR BBD This part replaces 53100-15H10-YKY.

53100-15H11-YKY

$294.91

.MUDGUARD, FRONT FENDER

53331-15H00

$38.45

.CUSHION

94424-05H00

$6.63

.SCREW (6X16)

09139-06129

$3.00

.WASHER (6.5X16X1)

09160-06129

$2.50

NUT

08319-3106A

$2.09

.EMBLEM,ABS (GRAY) This part replaces 68151-44G00-1ZY.

68151-44G01-1ZY

$9.44

CUSHION

09320-09016

$2.01

SCREW (6X16)

09139-06146

$2.80

SCREW (6X16)

09139-06131

$2.80

COLOR :

SPECIAL NOTE

Unavailable

AGT=YVB(BLACK),YWW(WHITE)

SPECIAL NOTE

Unavailable

BBD=YKY(BLUE),YVB(BLACK)

SPECIAL NOTE

Unavailable
