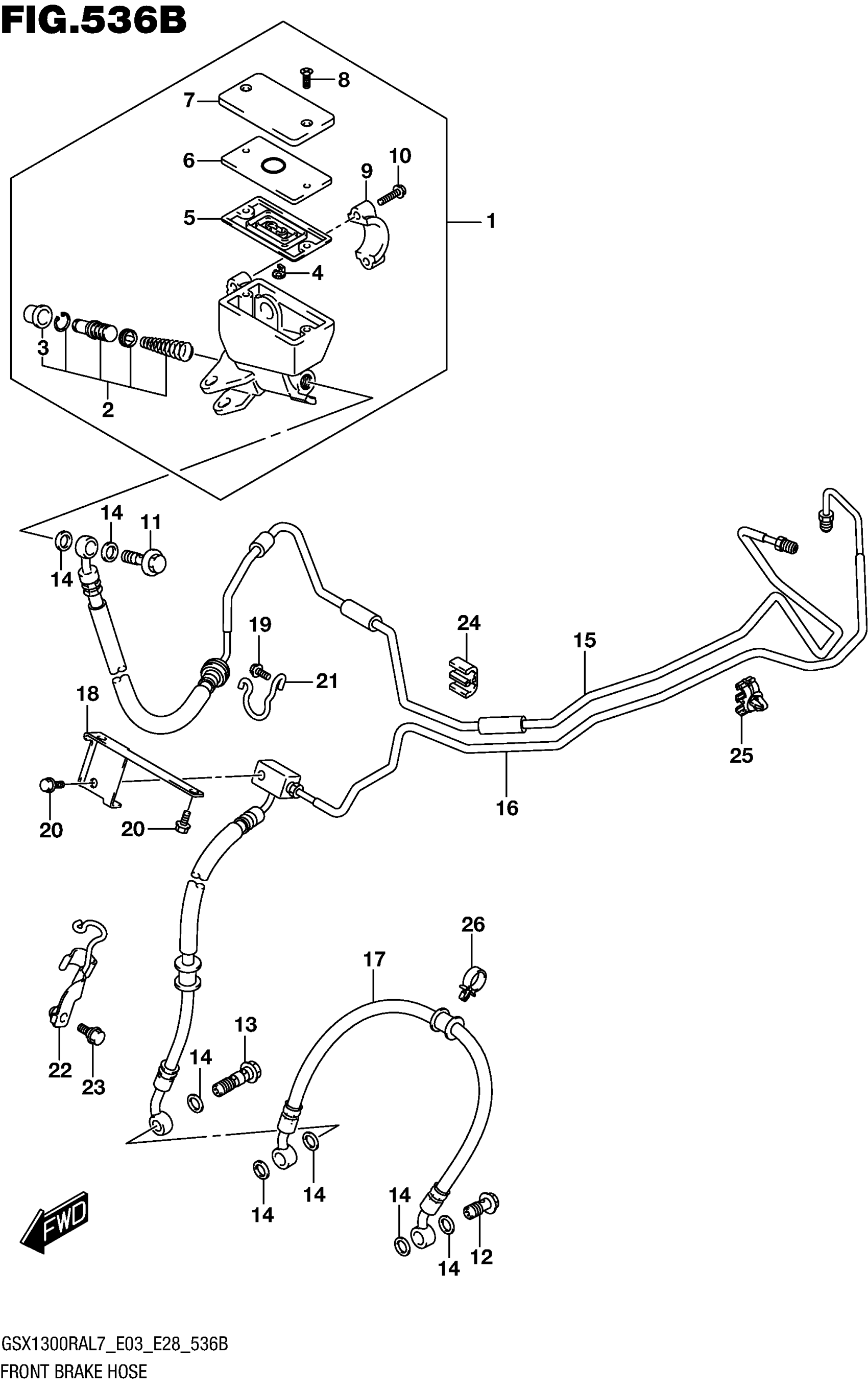

Suzuki GSX1300RAL7 (2017) FRONT BRAKE HOSE (GSX1300RAL7 E28) Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER

59600-24F40

$273.93

2

.PISTON/CUP SET

59600-24810

$48.23

3

..BOOT

59666-44300

$5.80

4

.PROTECTOR

59664-48B00

$11.02

5

.DIAPHRAGM

59667-49460

$9.78

6

.PLATE

59668-41C00

$9.32

7

.CAP

59669-10G20

$57.33

8

.SCREW

69689-49300

$1.91

9

.HOLDER

59671-36500

$12.21

10

.BOLT (6X22)

59675-06F10

$4.65

11

UNION

09360-10062

$6.43

12

UNION | LH

09360-10062

$6.43

13

UNION | RH

09360-10064

$6.43

14

WASHER (10X15X1.5)

09161-10009

$1.84

15

HOSE ASSY,FR BR This part replaces 59200-15H00.

59200-15H01

$104.88

16

HOSE ASSY,FR BR This part replaces 59400-15H00.

59400-15H01

$111.97

17

HOSE, FRONT BRAKE NO.2

59240-15H10

$76.38

18

BRACKET, BRAKE HOSE

59243-15H00

$7.20

19

BOLT

01547-0612A

$2.03

20

BOLT

01547-0616A

$2.03

21

CLAMP, BRAKE HOSE

59245-15H00

$6.80

22

CLAMP, BRAKE HOSE

59270-15H10

$17.43

23

BOLT (6X12)

09111-06107

$2.60

24

CLAMP

09403-06324

Unavailable

25

CLAMP

09403-07334

Unavailable

26

CLAMP

09403-16412

$3.37
