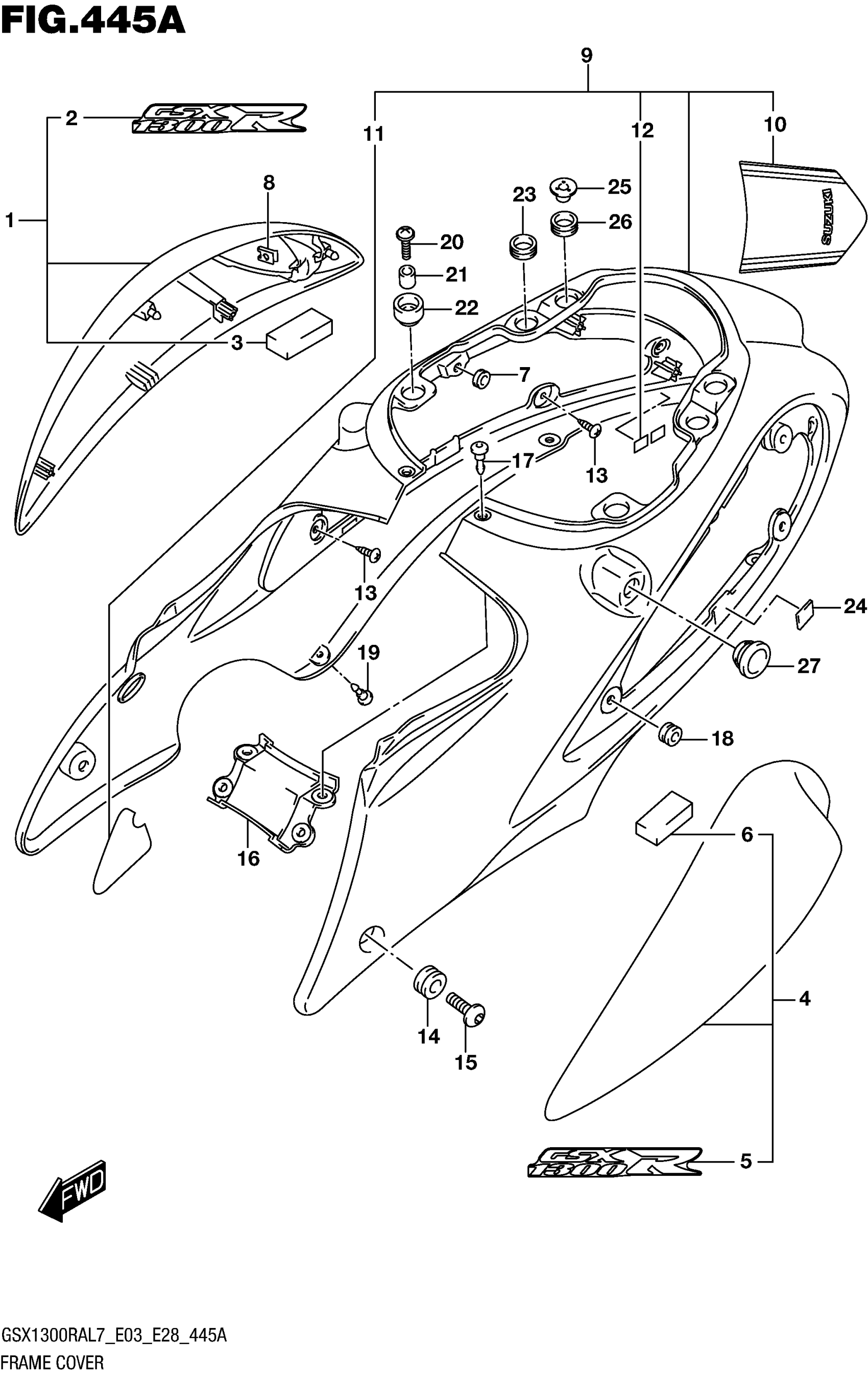

Suzuki GSX1300RAL7 (2017) FRAME COVER Diagram

#

Description
Price

1-1

COVER, FRAME RH (BLACK) | FOR YVB

47110-15H30-6UX

$207.23

1-2

COVER, FRAME RH (WHITE) | FOR AGT

47110-15H30-YWW

$187.77

1-3

COVER, FRAME RH (BLUE) | FOR BBD

47110-15H30-5FX

$187.77

2-1

.EMBLEM, FRAME COVER | FOR 6UX

68131-15H10-A98

$13.83

2-1

(GRAY/RED

68131-15H10-A98

$13.83

2-2

.EMBLEM, FRAME COVER | FOR YWW,5FX

68131-15H10-BGA

$12.80

2-2

(GRAY/RED

68131-15H10-BGA

$12.80

3

.CUSHION

47511-15H00

$3.71

4-1

COVER, FRAME LH (BLACK) | FOR YVB

47210-15H30-6UX

$207.23

4-2

COVER, FRAME LH (WHITE) | FOR AGT

47210-15H30-YWW

$187.77

4-3

COVER, FRAME LH (BLUE) | FOR BBD

47210-15H30-5FX

$184.30

5-1

.EMBLEM, FRAME COVER | FOR 6UX

68131-15H10-A98

$13.83

5-1

(GRAY/RED

68131-15H10-A98

$13.83

5-2

.EMBLEM, FRAME COVER | FOR YWW,5FX

68131-15H10-BGA

$12.80

5-2

(GRAY/RED

68131-15H10-BGA

$12.80

6

.CUSHION

47511-15H00

$3.71

7

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

$2.10

8

NUT This part replaces 09148-04034.

09148-04015

$2.36

9-1

COVER, FRAME CENTER (BLACK) | FOR YVB

47310-15H30-YVB

Unavailable

9-2

COVER, FRAME CENTER (WHITE) | FOR AGT

47310-15H30-YWW

$455.07

9-3

COVER, FRAME CENTER (BLUE) | FOR BBD

47310-15H30-YKY

$455.07

10-1

.TAPE, FRAME COVER CENTER | FOR YVB

68135-15H40-BF3

$28.28

10-1

(BLACK/GRAY

68135-15H40-BF3

$28.28

10-2

.TAPE, FRAME COVER CENTER | FOR YWW

68135-15H40-AJV

$28.28

10-2

(GRAY/BLACK

68135-15H40-AJV

$28.28

10-3

.TAPE, FRAME COVER CENTER | FOR YKY

68135-15H40-BF5

$28.28

10-3

(BLUE/WHITE

68135-15H40-BF5

$28.28

11

.TAPE, CENTER

47312-15H00

$18.48

12

CUSHION

45516-01H00

$5.32

13

SCREW (5X15)

09136-05062

$2.19

14

CUSHION

09320-09016

$1.97

15

BOLT (6X20)

09139-06190

$4.17

16-1

LID, CENTER (BLACK) | FOR YVB

47411-15H00-YVB

Unavailable

16-2

LID, CENTER (WHITE) | FOR AGT

47411-15H00-YWW

Unavailable

16-3

LID, CENTER (BLUE) | FOR BBD

47411-15H00-YKY

$57.77

17

CLIP (BLACK)

09409-06314-5PK

$2.78

18

CUSHION

09320-09016

$1.97

19

CLIP

09409-06329

$2.79

20

SCREW (6X20)

09136-06105

$1.97

21

SPACER (6.5X10X11)

09180-06288

$2.06

22

CUSHION,FRAME COVER UP This part replaces 47115-16G00.

47115-16G01

$3.37

23

CUSHION, UPPER CENTER

47191-24F00

$5.17

24

CUSHION (170X95) | CUT AS REQUIRED

33651-37000

$4.48

25

WASHER,FRAME COVER

47190-24F21

$9.94

26

CUSHION, UPPER REAR

47191-24F30

$5.36

27

SPACER, SIDE CENTER

47191-24F20

$7.22

28

COLOR :

SPECIAL NOTE

Unavailable

28

AGT=YVB(BLACK),YWW(WHITE)

SPECIAL NOTE

Unavailable

28

BBD=YKY(BLUE),YVB(BLACK)

SPECIAL NOTE

Unavailable
