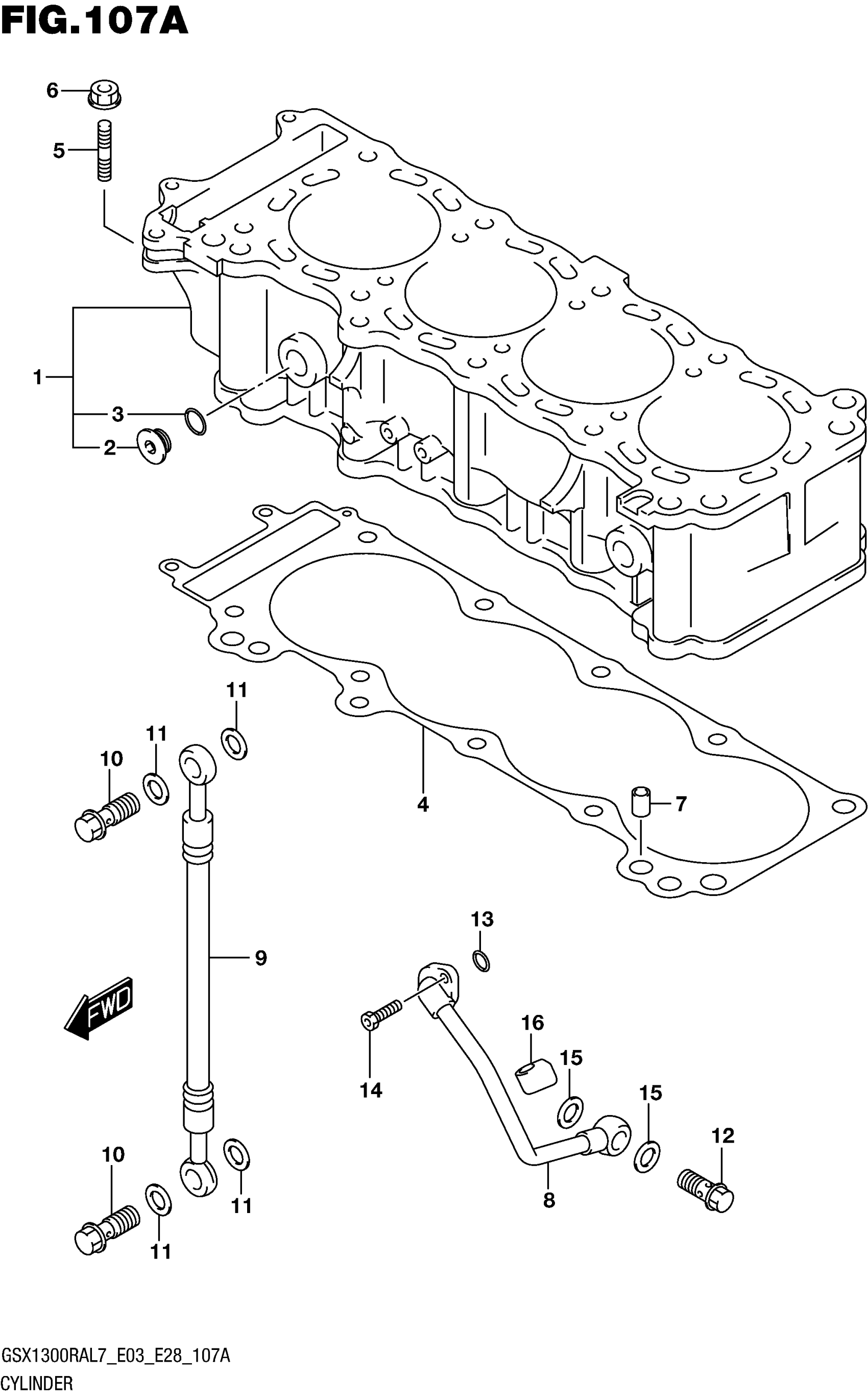

Find the part on the Cylinder diagram for your 2017 Suzuki GSX1300RAL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Suzuki GSX1300RAL7 Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER

11210-15H00-0F0

1
Out of stock

2

.PLUG, WATER JACKET

11318-35F00

3
Out of stock

3

.O-RING (D:3.1,ID:19.4)

09280-20002

3
Out of stock

4

GASKET

11241-15H00

1
Out of stock

5

STUD BOLT

01421-0625A

2
Out of stock

6

NUT

08316-1006A

2
Out of stock

7

PIN

04211-11169

2
Out of stock

8

PIPE,CRANKCASE OIL

11280-24F00

1
Out of stock

9

HOSE, OIL

11282-24F00

1
Out of stock

10

UNION

09360-10062

2
Out of stock

11

GASKET (10.1X16X1)

09168-10007

4
Out of stock

12

UNION

09360-14012

1
Out of stock

13

O RING (D:2.4,ID:11.8)

09280-12012

1
Out of stock

14

BOLT (6X16)

09106-06073

2
Out of stock

15

.GASKET (14X20X1.5)

09168-14015

2
Out of stock

16

CUSHION,CRANKCASE OIL PIPE This part replaces 11283-24F00.

11283-24F01

1
Out of stock
