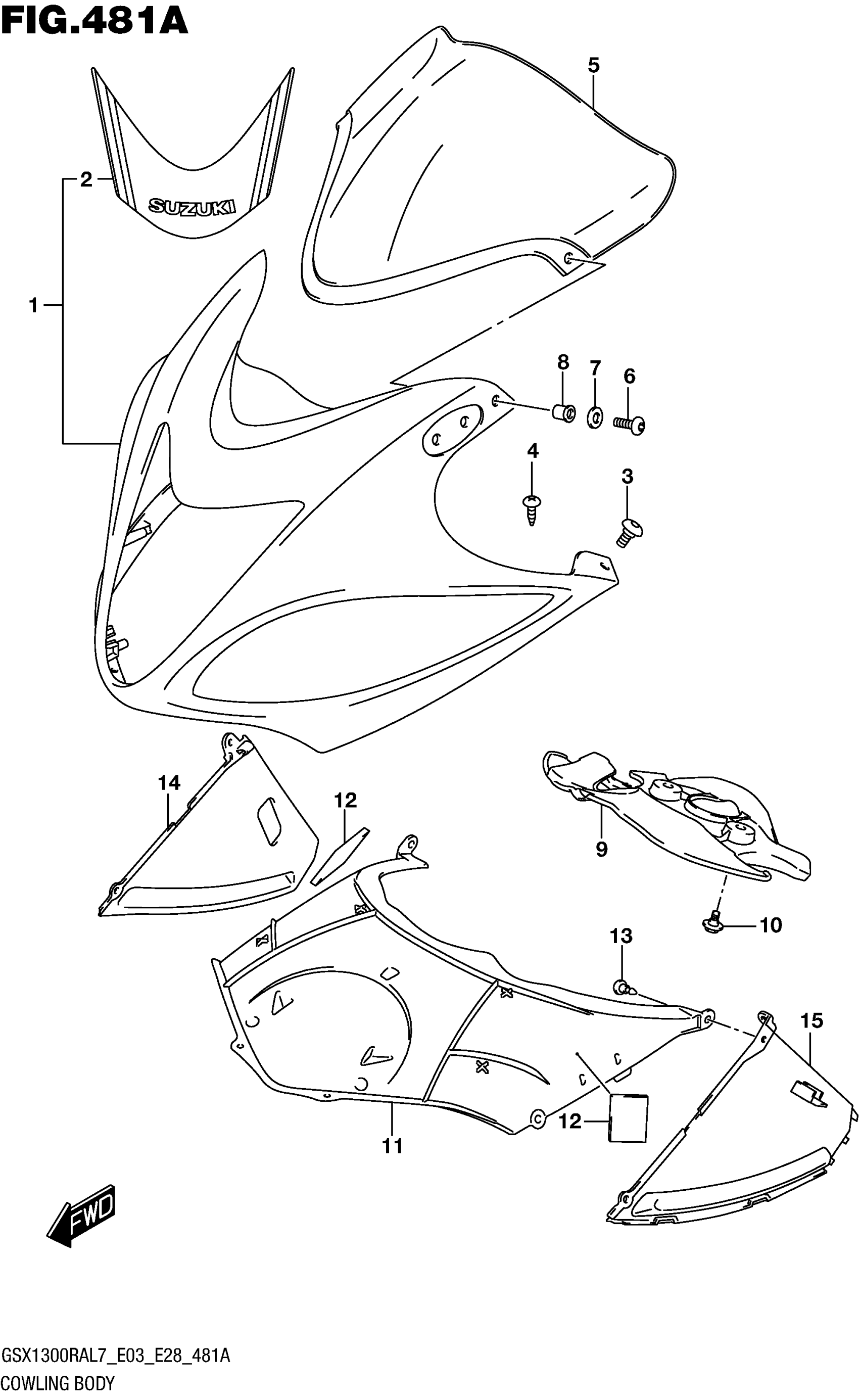

Suzuki GSX1300RAL7 (2017) COWLING BODY (GSX1300RAL7 E03) Diagram

#

Description
Price

1-1

COWLING ASSY,BO | FOR YVB This part replaces 94401-15H70-YVB.

94401-15H71-YVB

$537.32

1-2

COWLING ASSY,BO | FOR AGT This part replaces 94401-15H70-YWW.

94401-15H71-YWW

$671.83

1-3

COWLING ASSY,BO | FOR BBD This part replaces 94401-15H70-YKY.

94401-15H71-YKY

$625.08

2-1

.TAPE, BODY COWL (BLACK/GRAY) | FOR YVB

68275-15H00-BF3

$28.28

2-2

.TAPE, BODY COWL (GRAY/BLACK) | FOR YWW

68275-15H00-AJV

$28.28

2-3

.TAPE, BODY COWL (BLUE/WHITE) | FOR YKY

68275-15H00-BF5

$28.28

3

SCREW (5X16)

09139-05077

$3.25

4

SCREW

03541-0516A

$1.49

5

WINDSCREEN

94611-15H00

$292.52

6

SCREW (5X14)

09139-05025

$2.05

7

WASHER

08322-0105B

$2.26

8

NUT

09159-05019

$7.14

9

COVER,LWR BRACKET

94458-15H10

$17.43

10

BOLT (6X12)

09111-06107

$2.60

11

COVER, BODY COWL

94419-15H02

$30.33

12

CUSHION, COVER

36930-60A10

$2.92

13

CLIP (BLACK)

09409-06314-5PK

$2.78

14

COWL, INNER RH

94461-15H00

$53.78

15

COWL, INNER LH

94462-15H00

$55.62

16

COLOR :

SPECIAL NOTE

Unavailable

16

AGT=YVB(BLACK),YWW(WHITE)

SPECIAL NOTE

Unavailable

16

BBD=YKY(BLUE),YVB(BLACK)

SPECIAL NOTE

Unavailable
