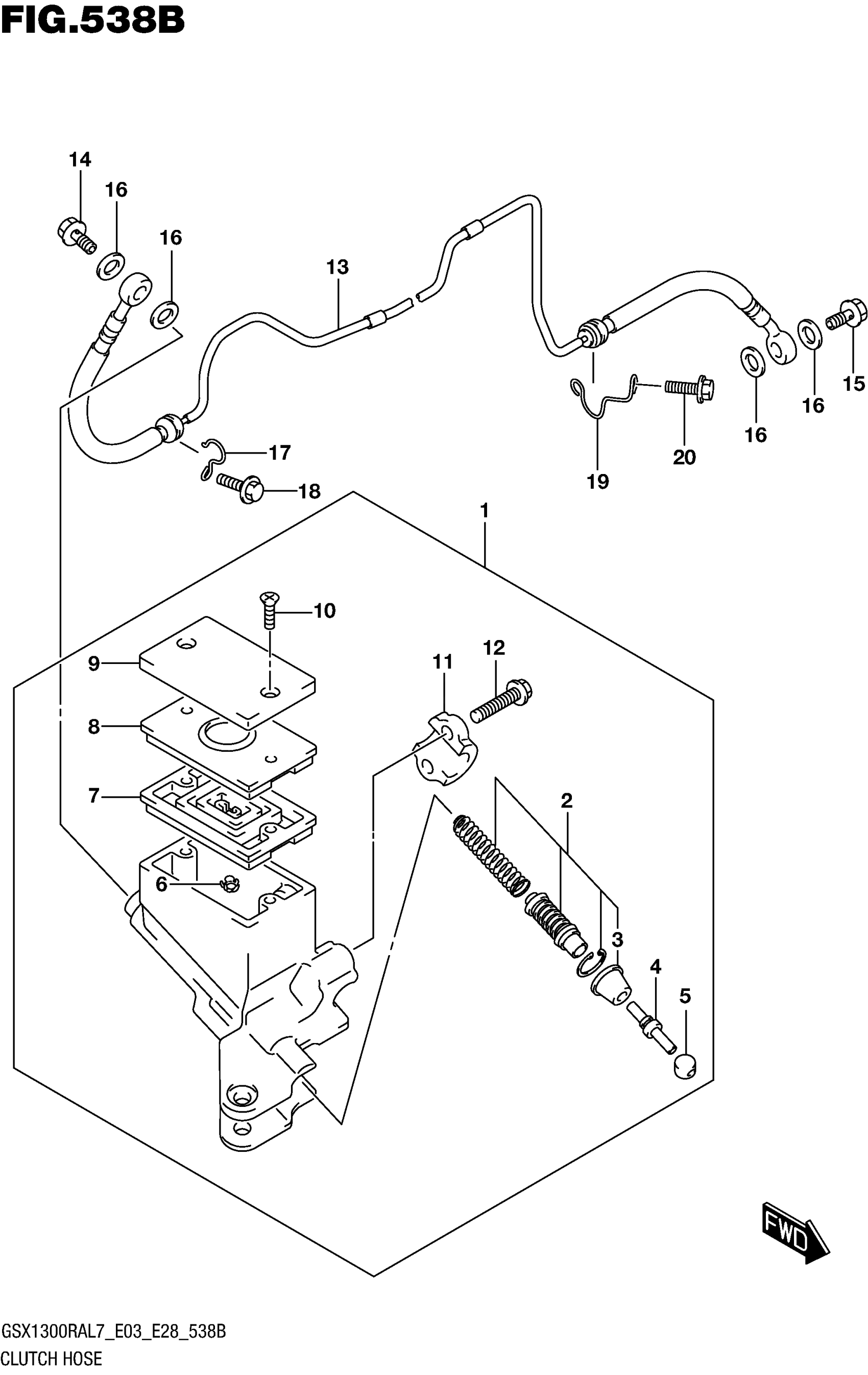

Suzuki GSX1300RAL7 (2017) CLUTCH HOSE (GSX1300RAL7 E28) Diagram

#

Description
Price

1

CYLINDER ASSY, CLUTCH MASTER

59800-24F40

$298.18

2

.PISTON/CUP SET

59800-24810

$37.95

3

..BOOT

59866-23H00

$8.98

4

.ROD, PUSH

59871-23H00

$12.63

5

.BUSH

59892-08A00

$4.84

6

.PROTECTOR

59664-48B00

$12.43

7

.DIAPHRAGM

59667-49460

$9.36

8

.PLATE

59668-41C00

$8.92

9

.CAP

59669-10G20

$64.72

10

.SCREW

69689-49300

$1.81

11

.HOLDER

59671-36500

$12.01

12

.BOLT (6X22)

59675-06F10

$5.27

13

HOSE COMP,CLUTC This part replaces 59910-24F10.

59910-24F11

$292.65

14

UNION

09360-10062

$5.99

15

UNION

09360-10062

$5.99

16

WASHER (10X15X1.5)

09161-10009

$1.89

17

CLAMP, HOSE NO.1

59915-24F00

$12.83

18

BOLT

01550-0616A

$2.01

19

CLAMP,CLUTCH HOSE NO.2

59921-24F00

$14.00

20

BOLT

01550-0616A

$2.01
