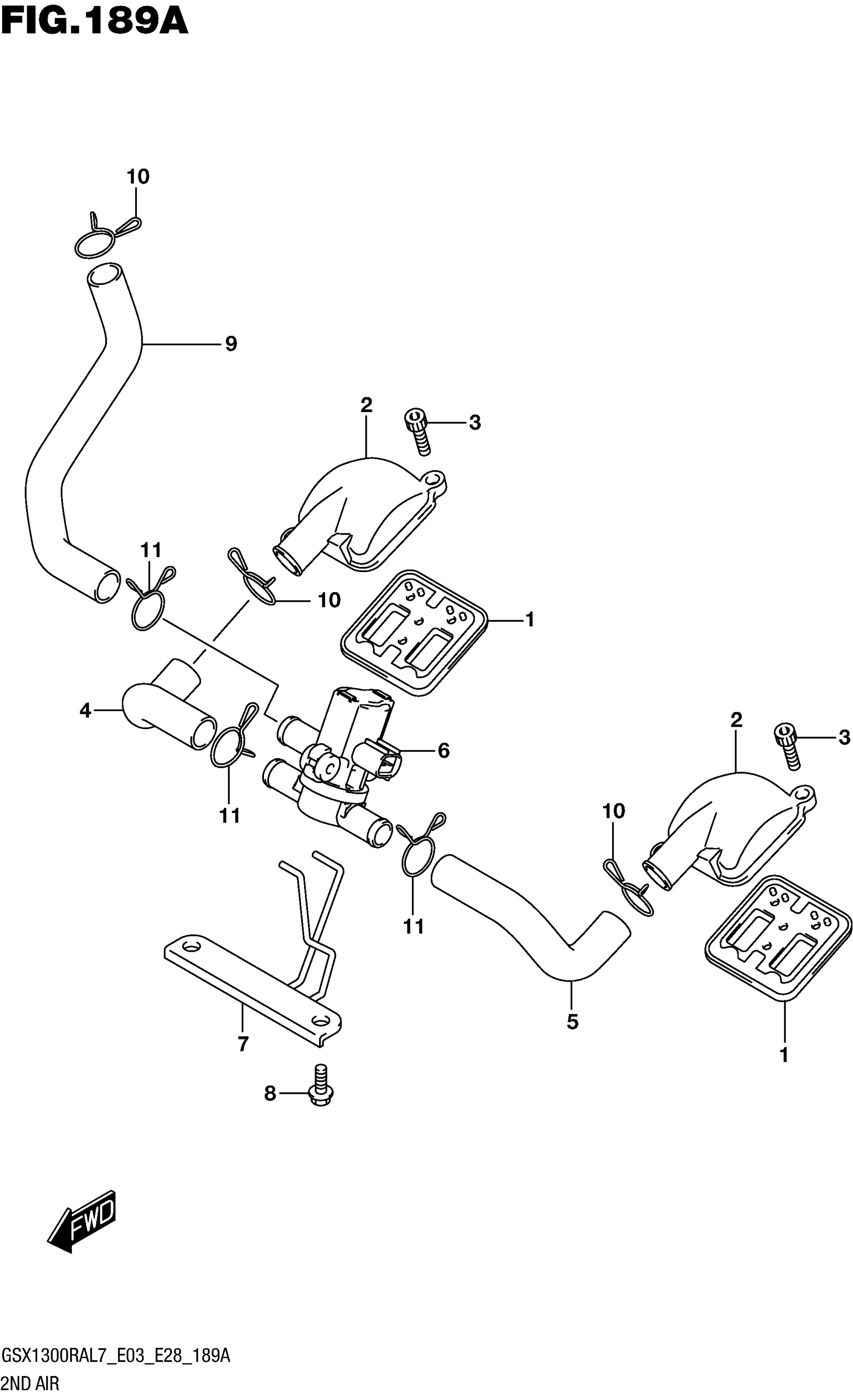

Suzuki GSX1300RAL7 (2017) 2ND AIR Diagram

#

Description
Price

1

VALVE ASSY, 2ND AIR REED

18450-35F30

$99.63

2

COVER,2ND AIR REED VALVE

18531-15H01

$31.00

3

BOLT

01547-0616A

$2.03

4

HOSE,2ND AIR VALVE,R

18461-15H00

$23.25

5

HOSE,2ND AIR VALVE,L

18471-15H00

$24.67

6

VALVE ASSY,AIR CUT

18510-29G31

$128.72

7

BRACKET,2ND AIR VALVE

18610-15H00

Unavailable

8

BOLT (6X16)

09103-06283

$2.87

9

HOSE, 2ND AIR CLEANER

18711-15H00

$37.82

10

CLIP

09401-17201

$3.15

11

CLIP

09401-17201

$3.15
