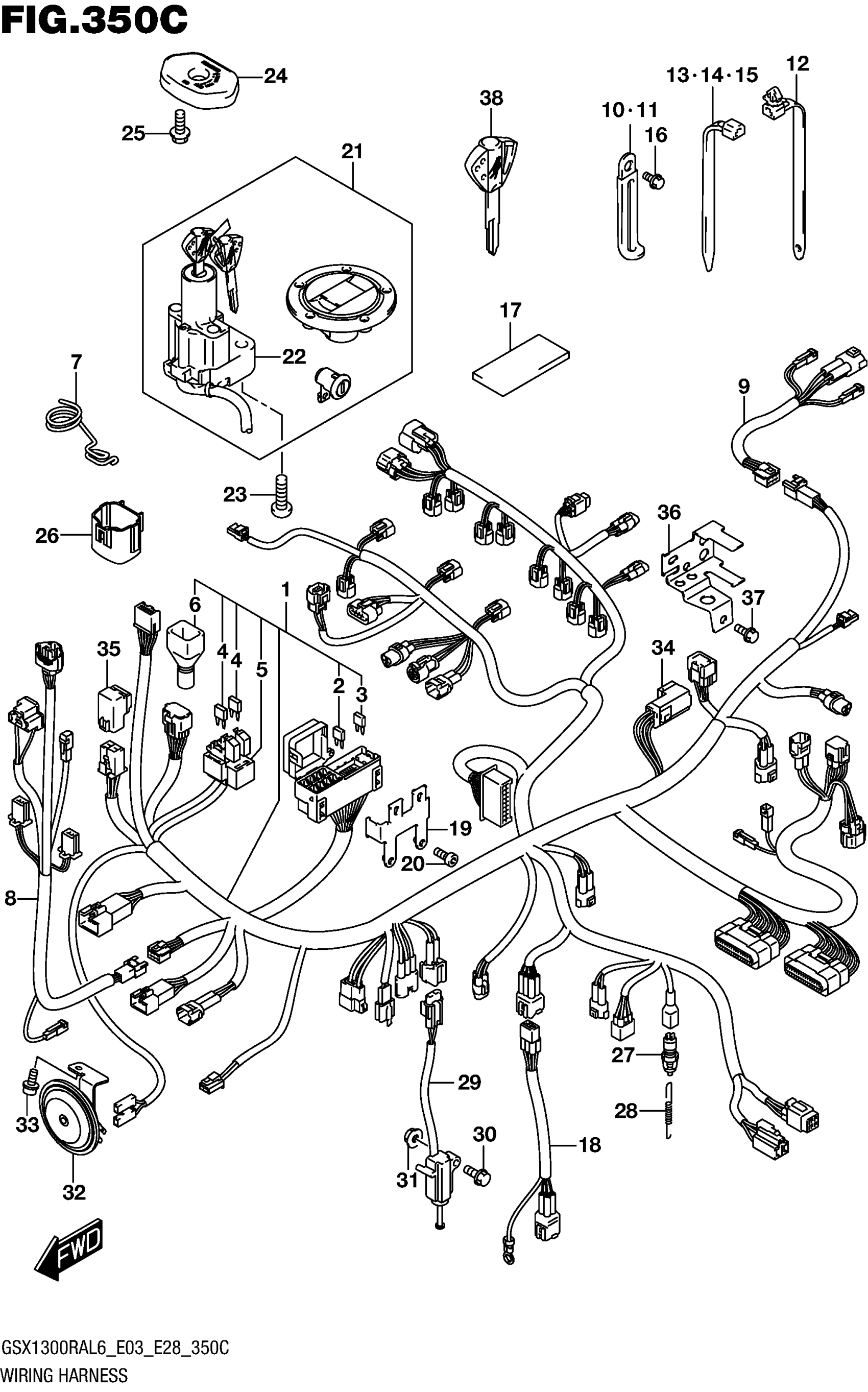

Suzuki GSX1300RAL6 (2016) WIRING HARNESS (GSX1300RAL6 E33) Diagram

#

Description
Price

1

HARNESS,WIRING This part replaces 36610-15HD0.

36610-15HD1

$1,107.73

2

.FUSE (10A)

09481-10501

$2.06

3

.FUSE (15A)

09481-15501

$2.02

4

.FUSE (15A)

09481-15101

$2.53

5

.HOLDER

36742-45G00

$23.63

6

.BOOT, METER

36618-33E00

$8.77

7

GUIDE, WIRING HARNESS

36619-15H00

Unavailable

8

HARNESS,WIRING This part replaces 36620-15H00.

36620-15H01

$134.07

9

WIRE,RR COMB This part replaces 36857-15H00.

36857-15H01

$33.51

10

CLAMP (L:45)

09404-06429

$1.83

11

CLAMP (L:135)

09404-06435

$3.68

12

CLAMP This part replaces 09407-14408.

09407-17402

$3.93

13

CLAMP (L:125)

09407-14403

$2.26

14

CLAMP (L:165)

09407-18402

$2.19

15

CLAMP (L:145)

09407-14407

$3.57

16

BOLT

01550-0616A

$1.97

17

PROTECTOR, WIRING HARNESS

36920-45G00

$3.03

18

WIRE,O2 SENSOR This part replaces 36855-15H10.

36855-15H11

$51.07

19

BRACKET, FUSE BOX

36744-24F10

Unavailable

20

BOLT

07120-0510B

$3.05

21

LOCK SET This part replaces 37100-15860.

37100-15861

$401.33

22

LOCK ASSY,STEER This part replaces 37100-15H80.

37100-15H81

$304.52

23

BOLT (8X20)

09139-08016

$3.37

24

COVER,STEERING LOCK This part replaces 37180-15H01.

37180-15HA0

$23.74

25

BOLT

01547-0530A

$2.12

26

CAP,TS This part replaces 36654-06J00.

36654-06J01

$13.85

27

SWITCH ASSY, STOP LAMP

37740-19F00

$31.28

28

SPRING

09443-06012

$3.16

29

SWITCH ASSY,SIDE STAND This part replaces 37840-24F00.

37840-24F02

$58.63

30

BOLT (8X35)

09103-08357

$4.17

31

NUT

08316-1008B

$2.66

32

HORN ASSY

38500-24F30

$79.33

33

BOLT

07120-0612A

$2.50

34

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$38.58

35

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$38.58

36

BRACKET, FUEL PUMP RLY

38741-24F00

$8.77

37

BOLT

01550-0612B

$2.39

38

KEY, BLANK | OPT

37146-15H00

$51.62
