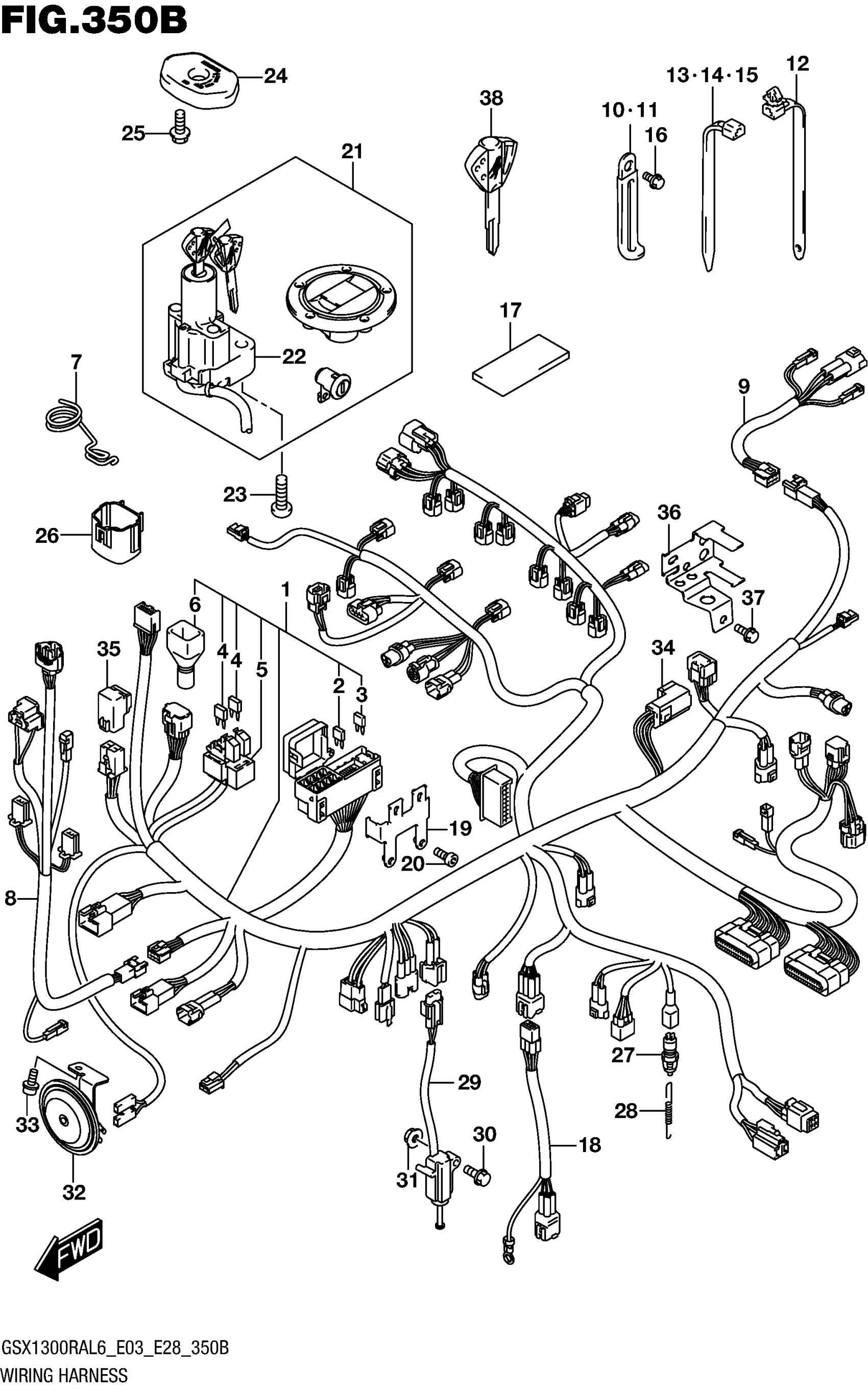

Suzuki GSX1300RAL6 (2016) WIRING HARNESS (GSX1300RAL6 E28) Diagram

#

Description
Price

1

HARNESS,WIRING This part replaces 36610-15HC0.

36610-15HC2

$1,092.40

2

.FUSE (10A)

09481-10501

$2.07

3

.FUSE (15A)

09481-15501

$2.07

4

.FUSE (15A)

09481-15101

$2.77

5

.HOLDER

36742-45G00

$26.67

6

.BOOT, METER

36618-33E00

$9.90

7

GUIDE, WIRING HARNESS

36619-15H00

Unavailable

8

HARNESS,WIRING This part replaces 36620-15H00.

36620-15H01

$149.20

9

WIRE,RR COMB This part replaces 36857-15H00.

36857-15H01

Unavailable

10

CLAMP (L:45)

09404-06429

$1.82

11

CLAMP (L:135)

09404-06435

$4.00

12

CLAMP This part replaces 09407-14408.

09407-17402

$4.28

13

CLAMP (L:125)

09407-14403

$2.24

14

CLAMP (L:165)

09407-18402

$2.21

15

CLAMP (L:145)

09407-14407

$2.80

16

BOLT

01550-0616A

$1.97

17

PROTECTOR, WIRING HARNESS

36920-45G00

$3.42

18

WIRE,O2 SENSOR This part replaces 36855-15H10.

36855-15H11

$57.63

19

BRACKET, FUSE BOX

36744-24F10

Unavailable

20

BOLT

07120-0510B

$3.32

21

LOCK SET This part replaces 37100-15850.

37100-15853

$345.17

22

LOCK ASSY,STEER This part replaces 37100-15H80.

37100-15H81

$338.87

23

BOLT (8X20)

09139-08016

$3.04

24

COVER,STEERING LOCK This part replaces 37180-15H01.

37180-15HA0

$22.35

25

BOLT

01547-0530A

$2.13

26

CAP,TS This part replaces 36654-06J00.

36654-06J01

$15.63

27

SWITCH ASSY, STOP LAMP

37740-19F00

$35.30

28

SPRING

09443-06012

$2.90

29

SWITCH ASSY,SIDE STAND This part replaces 37840-24F00.

37840-24F02

$66.52

30

BOLT (8X35)

09103-08357

$4.53

31

NUT

08316-1008B

$2.65

32

HORN ASSY

38500-24F30

$89.53

33

BOLT

07120-0612A

$2.50

34

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$36.33

35

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$36.33

36

BRACKET, FUEL PUMP RLY

38741-24F00

$11.63

37

BOLT

01550-0612B

$2.38

38

KEY, BLANK | OPT

37146-15H00

$57.43
