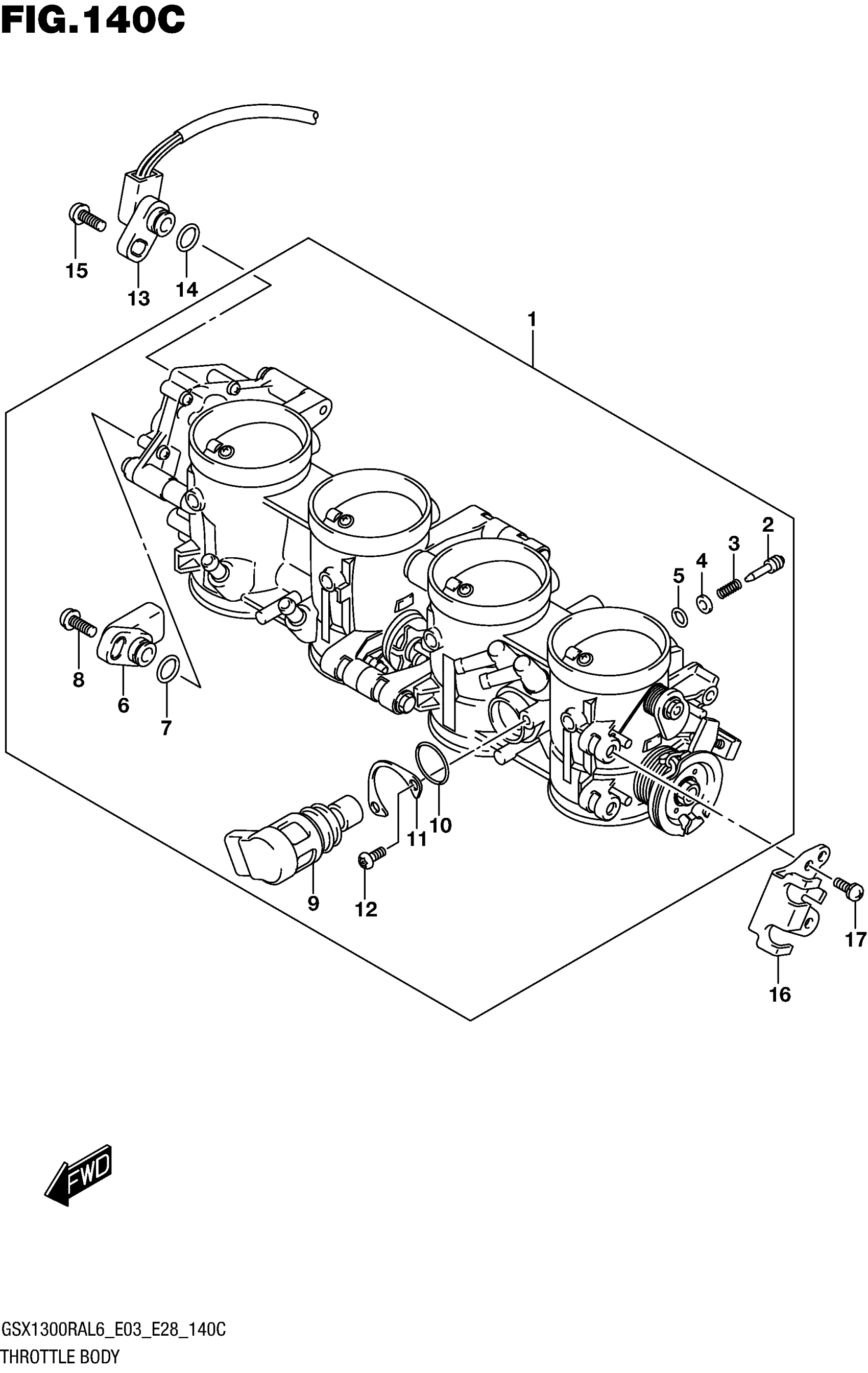

Suzuki GSX1300RAL6 (2016) THROTTLE BODY (GSX1300RAL6 E33) Diagram

#

Description
Price

1

THROTTLE BODY

13406-15H30

$2,089.50

2

.SCREW, AIR ADJUST

13269-18G00

$13.35

3

.SPRING, AIR SCREW

13271-43E00

Unavailable

4

.WASHER

13291-26E00

$2.80

5

.O RING

13295-26E00

$3.97

6

.SENSOR ASSY, THROTTLE MAIN

13580-18G00

$191.97

7

.O RING

13575-40F00

$3.85

8

.SCREW

13605-40F00

$3.50

9

.VALVE ASSY, ISC

18117-15H12

$403.72

10

.O RING

18119-05H00

$4.47

11

.PLATE, ISC VALVE

13428-15H00

Unavailable

12

.SCREW

13605-15H00

$8.03

13

SENSOR ASSY, THROTTLE SUB

13580-40F31

$197.79

14

O RING

13575-40F00

$3.85

15

SCREW

13605-40F00

$3.50

16

PLATE, STAY

13565-15H00

Unavailable

17

SCREW

13601-21H00

Unavailable
