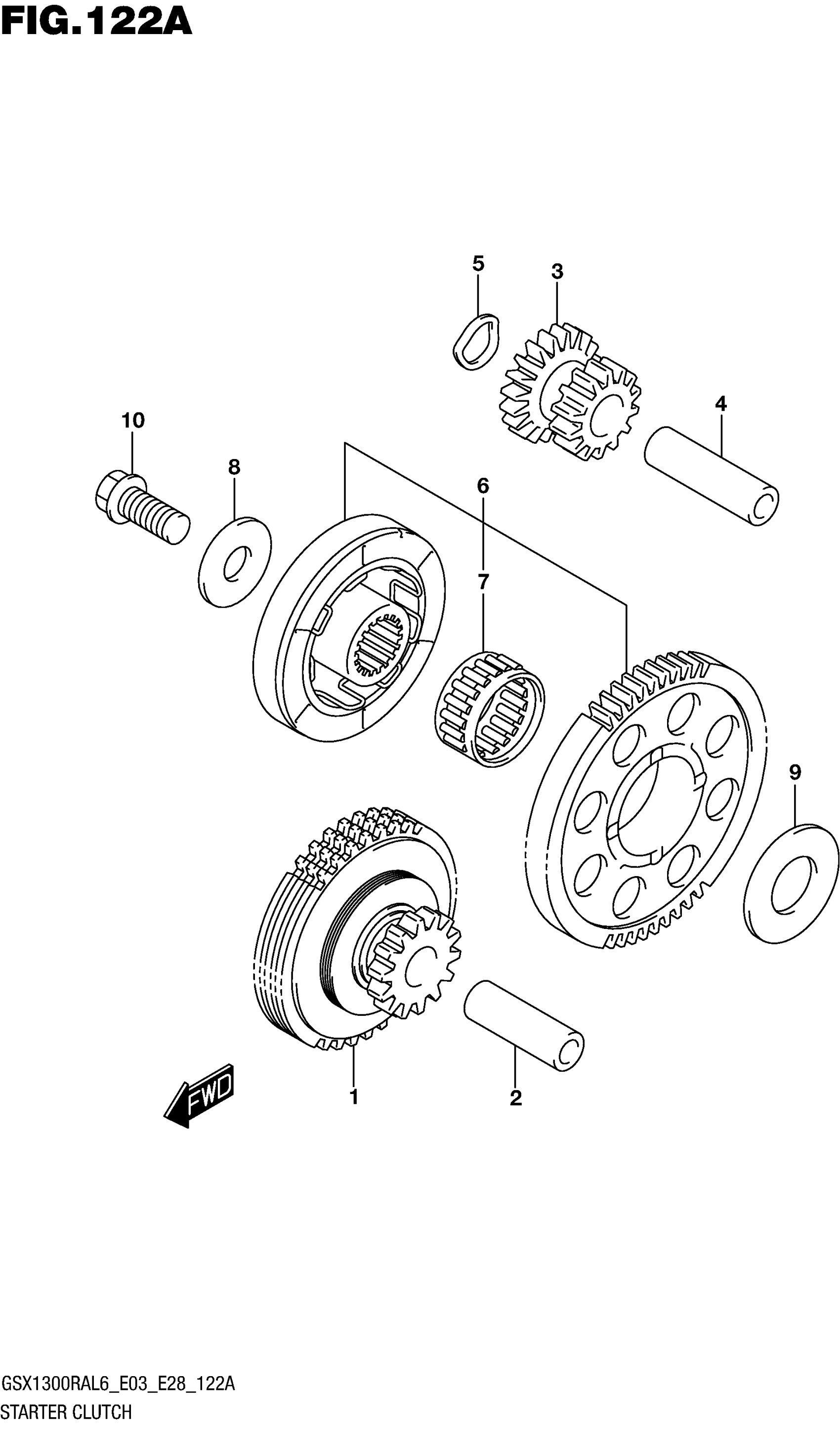

Suzuki GSX1300RAL6 (2016) STARTER CLUTCH Diagram

#

Description
Price

1

LIMITER ASSY, STARTER IDLE

12600-24F00

$272.72

1

GEAR NO.1

12600-24F00

$272.72

2

PIN, STARTER IDLE GEAR NO.1

12615-24F00

$10.50

3

GEAR, STARTER IDLE NO.2

12612-24F00

$64.53

3

(NT:14/17)

12612-24F00

$64.53

4

PIN

12151-05200

$12.50

5

WASHER

09164-14008

$2.01

6

CLUTCH, STARTER ONE WAY

12600-24861

$388.57

6

(NT:44)

12600-24861

$388.57

7

.BEARING (28X34X16.8)

09263-28031

$40.47

8

WASHER

08211-10285

$3.49

9

WASHER

08211-20403

$4.32

10

BOLT (10X23)

09103-10189

$4.04
