2016 Suzuki GSX1300RAL6 Side Cowling Diagram

← All diagrams

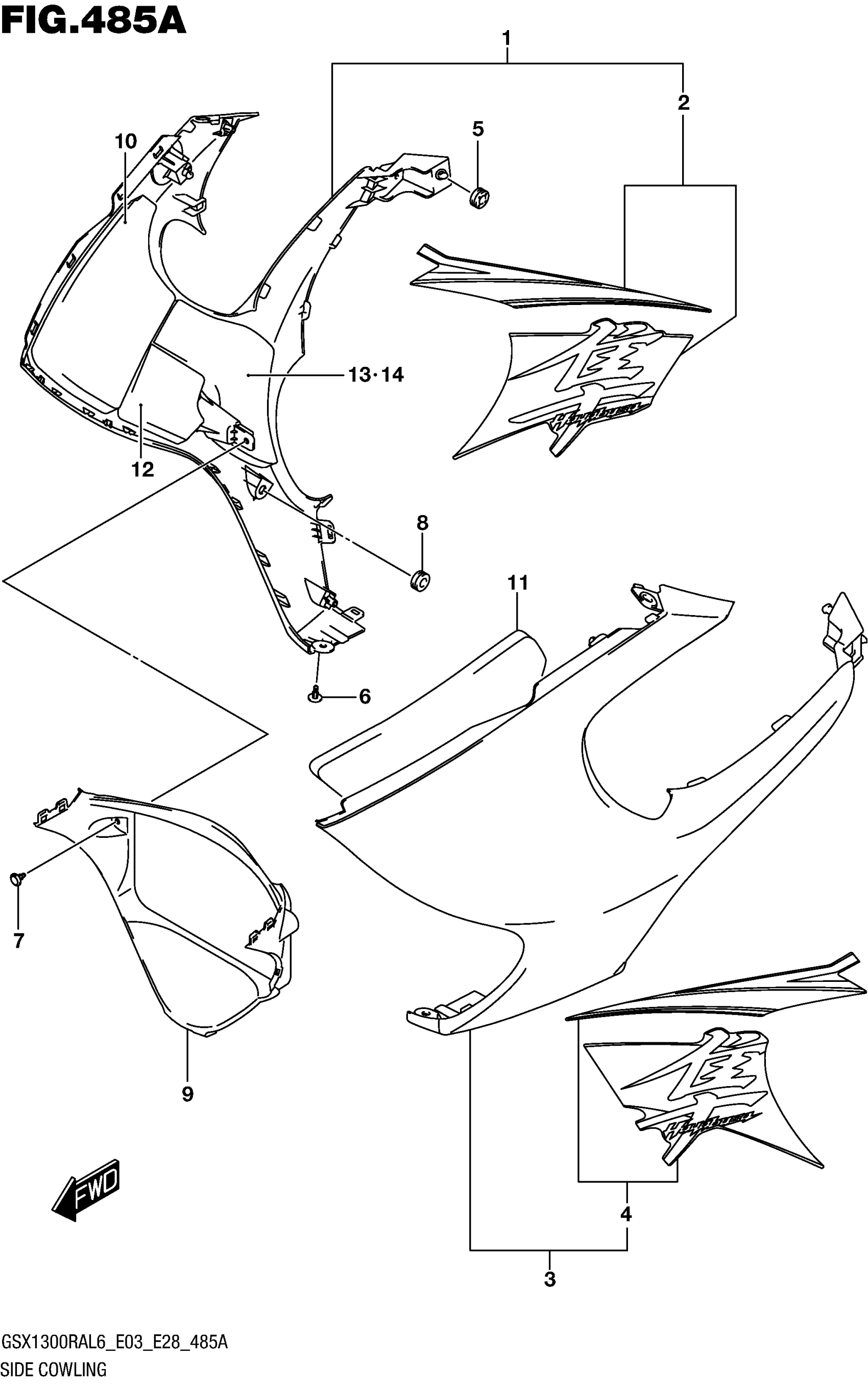

Find the part on the Side Cowling diagram for your 2016 Suzuki GSX1300RAL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki GSX1300RAL6 Side Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1-1

COWLING, SIDE RH (GRAY) | FOR AA3

94450-15H70-AAX

1
Out of stock

1-2

COWLING, SIDE RH (SILVER) | FOR ARA

94450-15H70-5KX

1
Out of stock

1-3

COWLING, SIDE RH (SILVER) | FOR A9Z

94450-15H70-BCX

1
Out of stock

2-1

.TAPE SET, SIDE COWLING RH | FOR AAX

68680-15H20-A99

1
Out of stock

2-2

.TAPE SET, SIDE COWLING RH | FOR 5KX

68680-15H20-BAA

1
Out of stock

2-3

.TAPE SET, SIDE COWLING RH | FOR BCX

68680-15H20-BAC

1
Out of stock

3-1

COWLING, SIDE LH (GRAY) | FOR AA3

94460-15H70-AAX

1
Out of stock

3-2

COWLING, SIDE LH (SILVER) | FOR ARA

94460-15H70-5KX

1
Out of stock

3-3

COWLING, SIDE LH (SILVER) | FOR A9Z

94460-15H70-BCX

1
Out of stock

4-1

.TAPE SET, SIDE COWLING LH | FOR AAX

68690-15H20-A99

1
Out of stock

4-2

.TAPE SET, SIDE COWLING LH | FOR 5KX

68690-15H20-BAA

1
Out of stock

4-3

.TAPE SET, SIDE COWLING LH | FOR BCX

68690-15H20-BAC

1
Out of stock

5

CUSHION

09320-08028

2
Out of stock

6

CLIP

94479-35F00

2
Out of stock

7

CLIP

94479-35F00

2
Out of stock

8

CUSHION

09321-10018

2
Out of stock

9

COWLING, UNDER CENTER

94498-15H00

1
Out of stock

10

CUSHION, SIDE UPPER RH This part replaces 94476-15H00.

94476-15H01

1
Out of stock

11

CUSHION, SIDE UPPER LH This part replaces 94486-15H00.

94486-15H01

1
Out of stock

12

CUSHION, SIDE LOWER

94476-15H10

2
Out of stock

13

SHIELD, SIDE RH

94474-15H00

1
Out of stock

14

SHIELD, SIDE LH

94484-15H00

1
Out of stock

15

COLOR :

SPECIAL NOTE

—
Out of stock

15

AA3=YLF(GRAY),YVB(BLACK)

SPECIAL NOTE

—
Out of stock

15

ARA=RB5(WHITE),YMD(SILVER)

SPECIAL NOTE

—
Out of stock

15

A9Z=YMD(SILVER),YYG(RED)

SPECIAL NOTE

—
Out of stock
